Rexair-Rainbow
Rexair-Rainbow 2-Speed Brushless Motor - E2 Series (120V/240V)
Rexair-Rainbow 2-Speed Brushless Motor - E2 Series (120V/240V)
SKU:R12612
Low stock: 7 left
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Rexair-Rainbow 2-Speed Brus...
$188.99
Product details

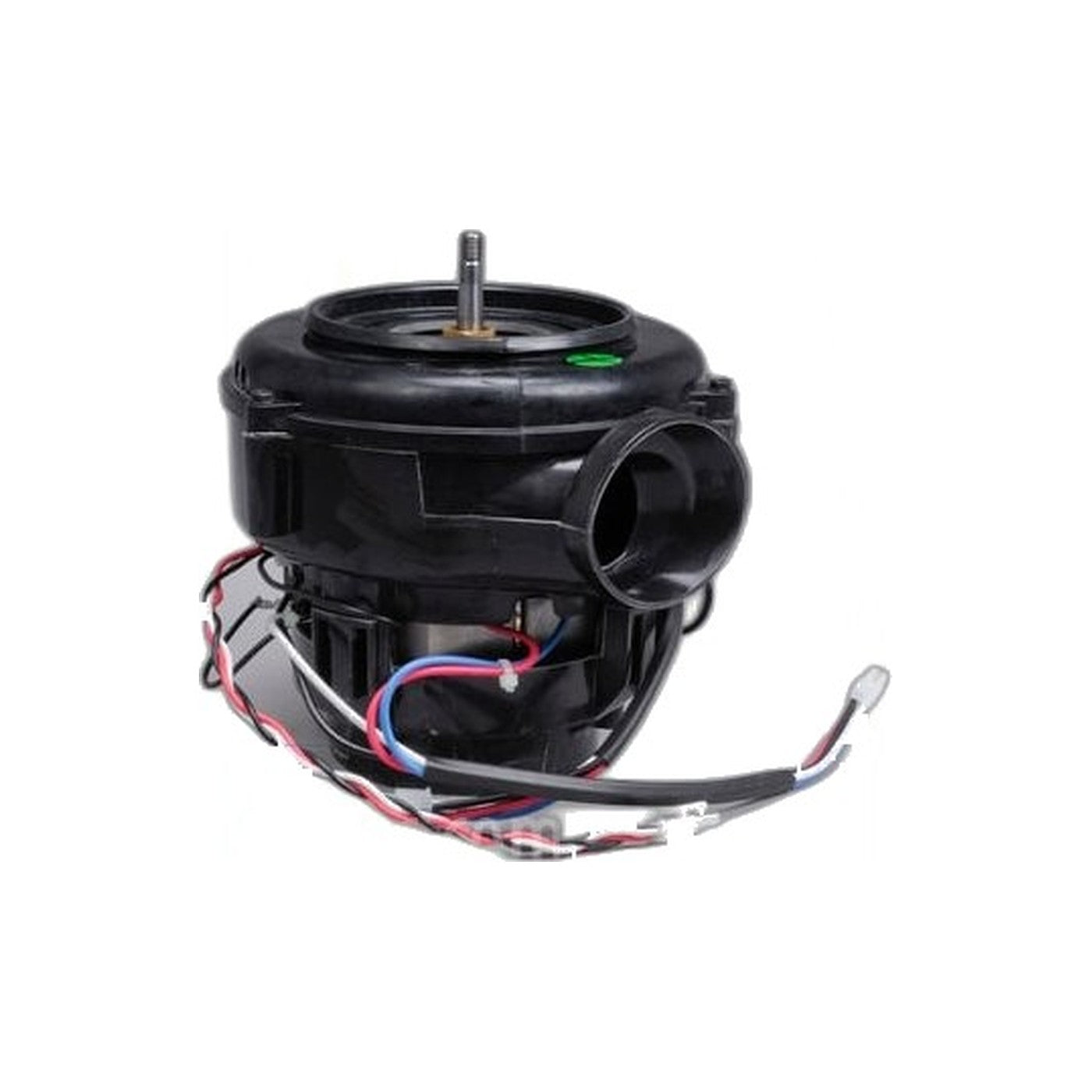

This is the two-speed brushless motor for the Rexair-Rainbow E2 canister, sold as part R12612 and listed as replacing the earlier R11409 part number. It is built for 120V/240V operation and drives both speed settings on the E2 canister power unit.
A brushless motor fails differently than a brushed one: instead of worn carbon brushes, look for a motor that no longer holds one of the two speeds, runs rough or hums without spinning up, or draws power without producing airflow. Any of those point to the motor rather than the switch, since a brushless design has no brush contacts to wear down first.
Because this motor is tied to the E2's speed-control electronics, a motor that spins but will not respond to the speed switch may point to the control wiring rather than the motor itself. Check the switch and its connections before assuming the motor is at fault and ordering a replacement.
Confirm your canister is the 2-speed E2 before ordering, since single-speed Rainbow canister motors are a separate part and are not interchangeable with this brushless assembly. Installation on a canister motor of this type calls for a technician familiar with the wiring at the base.
- Part: R12612, replaces earlier R11409.
- Fits: Rexair-Rainbow E2.
- Voltage: 120V/240V.
- Symptom: loses one speed setting, runs rough, or draws power without airflow.
- Before ordering: check the speed switch and its wiring if the motor spins but won't respond to speed changes.
