SEBO Brush Roller Release for X1 and X2 Uprights — White

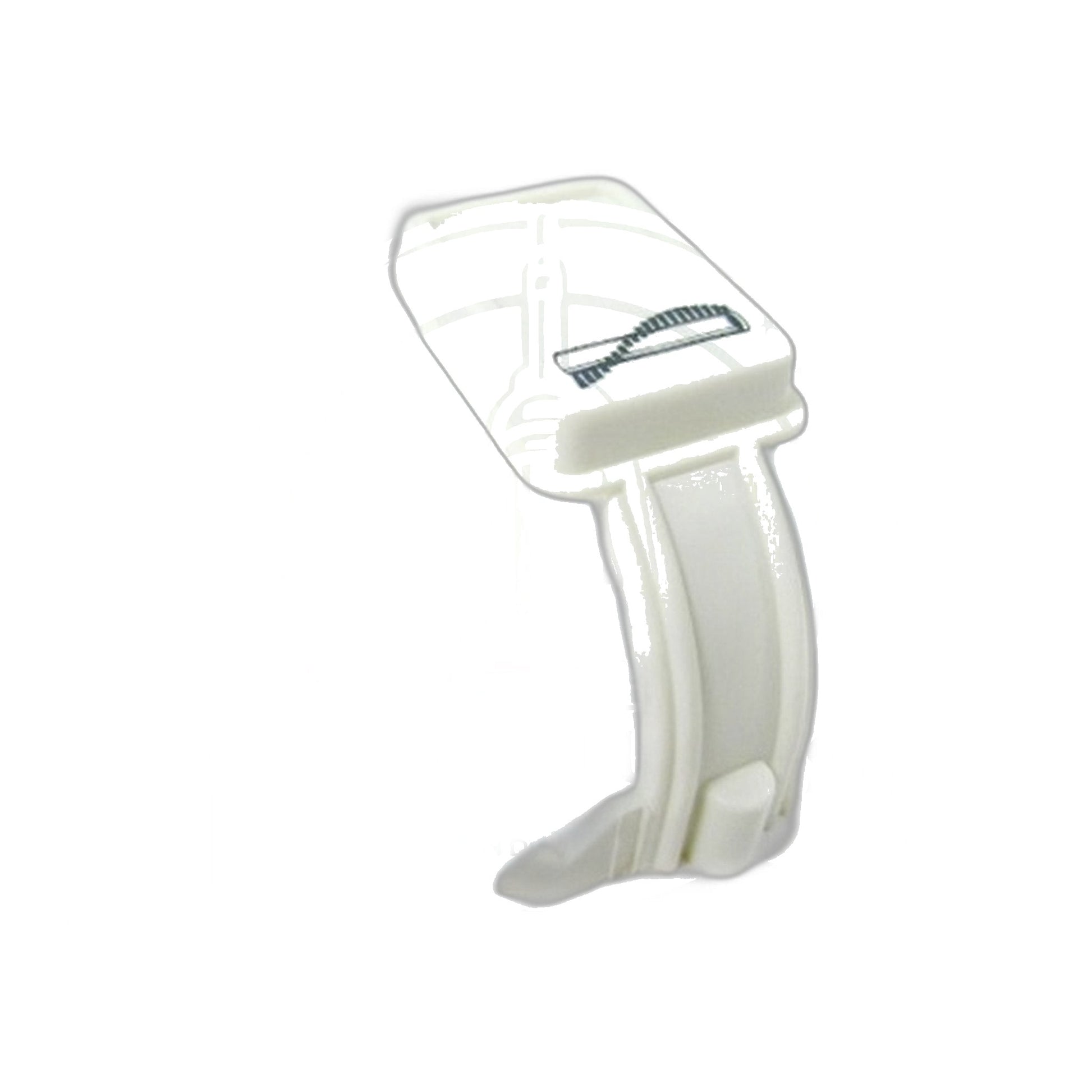

Tool-free roller changes hang on one small latch, and this is it. Part 5102GW is the white brush roller release for the SEBO X1 and the SEBO X2, the catch you operate to free the roller for hair removal or a brush strip change, and the component that locks it back down afterwards.

SEBO built the X series so that the roller comes out by hand, without a screwdriver and without splitting the nozzle open. That whole arrangement rests on this release holding tension and returning cleanly. When it cracks at the pivot or loses its spring action, one of two things follows. Either the roller fights you every time it comes out, so maintenance quietly gets skipped and the brush ends up bound with hair and thread, or the roller goes back in and never quite locks, which lets it move in its seat while the machine runs and works away at the bearing blocks either side. Neither is worth living with on an otherwise sound nozzle.

Diagnosis is straightforward. With the machine unplugged, work the release and watch whether it returns fully under its own spring; a latch that has to be helped back, or that has visible cracking around the pivot, has already failed even if it still just about holds. The white finish here is the identifying detail, matched to the housings SEBO used on these machines, so check it against your own nozzle rather than assuming every X series release is the same part.

• Fits: SEBO X1 and X2 uprights
• Colour: white
• Function: frees and relocks the brush roller without tools
• Replace when: the latch is cracked, or no longer holds the roller locked
• Part number: 5102GW

Clear wound-in hair from the roller ends while the release is out of the way, since that is the load which shortens the life of everything else in the head. Other white X1 and X2 parts that tend to be replaced at the same time are the filter cover, SEBO 5007GW, and the complete front cover assembly, SEBO 5185GW. Genuine SEBO X1 brush roller release, X2 roller latch, part 5102GW.
