SEBO AUTOMATIC X2 schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation.

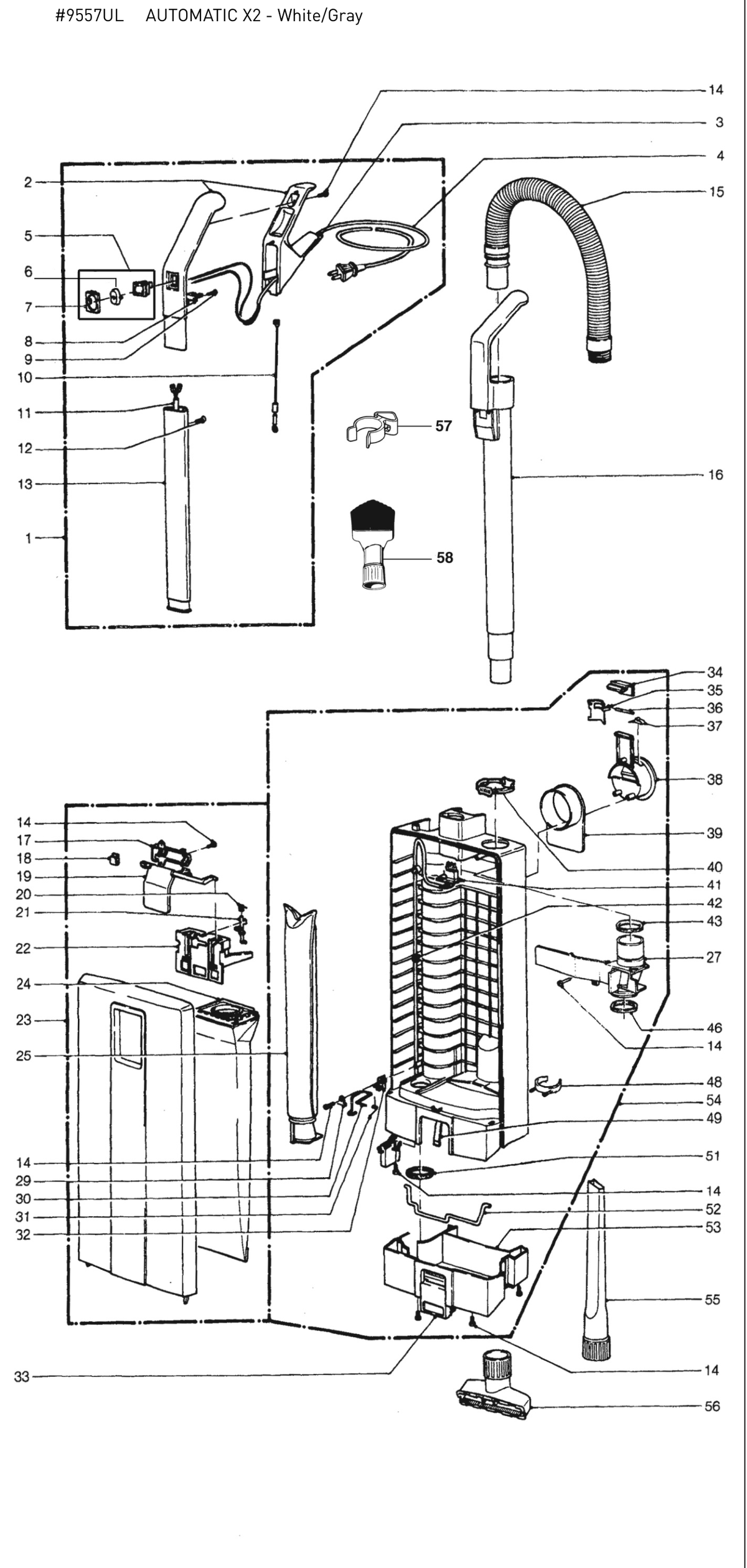

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AUTOMATIC X2 parts on this page (100)
- SEBO Chassis Axle for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5053
- SEBO Rear Axle Assembly with Wheels, Pedal and Spring for AUTOMATIC X1, X2, X4, X4 Boost and X5 — Gray Black — SKU 5051GS
- SEBO Access Door Axle for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5303
- SEBO Left-Hand Brush Roll Bearing Block for AUTOMATIC X2 and X5 — SKU 5767HG
- SEBO Right-Hand Brush Roll Bearing Block for AUTOMATIC X1, X2, X4, X4 Boost and X5 - White — SKU 5031WE
- SEBO 219 3M HTD-II-6 Toothed Belt for X Series, G Series and 300/350 — SKU 5110
- SEBO Motor-to-Sensor Drive Belt 312 3M HTDII-6 for AUTOMATIC X1, X2 and 300/350 — SKU 5379
- SEBO Complete Front Bottom Plate for AUTOMATIC X2 and X5 — Gray Black — SKU 5413GS
- SEBO Rear Bottom Plate, Complete, for AUTOMATIC X2 and X5 — Gray Black — SKU 5414GS
- SEBO Bumper Set for AUTOMATIC X2 and X5 — Gray Black — SKU 5230GS
- SEBO Cover Release for AUTOMATIC X1 and X2 — Dark Gray — SKU 5306DG
- SEBO Cord Grommet for AUTOMATIC X, FELIX and DART — Gray Black, Single — SKU 5359GS1
- SEBO Handle Assembly with Tube, Cord and Switch for the White AUTOMATIC X1 and X2 — Dark Gray / White — SKU 5632CA
- SEBO Power Supply Cord for AUTOMATIC X1, X2 and the Duo — Dark Gray — SKU 5433DG
- SEBO Antistatic Wire for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5253UL
- SEBO Handle Cable for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5298ER
- SEBO Internal Cable for AUTOMATIC X Series and ESSENTIAL G1/G2 — SKU 5299ER
- SEBO Male Contact Holder for the Swivel Neck — AUTOMATIC X1, X2, X4 and X5 — SKU 5176UL
- SEBO Ribbon Cable for AUTOMATIC X1, X2, X4 and X5 - 2 Pack, Both Lengths — SKU 5205/1
- SEBO Complete Bag Holder for AUTOMATIC X Series and ESSENTIAL G1/G2 — SKU 5324
- SEBO Dust Bag Housing with Bumper for AUTOMATIC X1/X2 and ESSENTIAL G1/G2 — Light Gray — SKU 5214HG
- SEBO Bumper Base for Automatic X1 and X2 Bag Compartment - Dark Gray — SKU 5085DG
- SEBO Cable Hook for AUTOMATIC X1, X2 and ESSENTIAL G1, G2 — Light Gray — SKU 5144HG
- SEBO Carrying Handle for AUTOMATIC X1, X2 and ESSENTIAL G1, G2 — Light Gray — SKU 5145HG
- SEBO Complete Front Cover for ESSENTIAL G1, G2 and AUTOMATIC X1, X2 — Light Gray — SKU 5805SE
- SEBO Bag Holder Locking Rod for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5083
- SEBO Power Head Cover for the White AUTOMATIC X2 — Gray Black — SKU 5492SE
- SEBO Retaining Ring, Single, for AUTOMATIC X, ESSENTIAL G and 300/350/370 Series — Gray Black — SKU 5424GS1
- SEBO Attachment Clip for AUTOMATIC X Series Bag Housing — Gray Black — SKU 1823GS
- SEBO Bag Holder Safety Catch for AUTOMATIC X Series and ESSENTIAL G1/G2 — SKU 5360
- SEBO Exhaust Filter Catch for AUTOMATIC X1 and X2 - White — SKU 5008GW
- SEBO Filter Safety Catch for AUTOMATIC X Series and ESSENTIAL G Series — SKU 5208
- SEBO Access Door with Axle and Spring for X Series Uprights — Orange — SKU 5172OR
- SEBO Complete Chassis for AUTOMATIC X2 and X5 — Gray Black — SKU 5321GS
- SEBO Air Channel Cover for AUTOMATIC X1, X2, X4 and X5 — Black — SKU 5173SW
- SEBO Latch Cover for AUTOMATIC X1 and X2 — SKU 5307
- SEBO Complete Internal Cover for AUTOMATIC X Series — Gray Black — SKU 5380GS
- SEBO Motor Cover for AUTOMATIC X1, X2, X4, X4 Boost and X5 Uprights — SKU 5018UL
- SEBO Motor Pulley Cover for X Series and G Series Uprights — Black — SKU 5112SW
- SEBO Display Panel for AUTOMATIC X1 and X2 — Dark Gray — SKU 5421DG
- SEBO Handle Release Foot Pedal for AUTOMATIC X and ESSENTIAL G Uprights — Orange — SKU 5059OR
- SEBO Handle Grip for AUTOMATIC X Series Uprights — Gray Black — SKU 5297GSAM
- SEBO 345 mm Handle Tube for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5187
- SEBO Seal Bearing for AUTOMATIC X2 and X5 — SKU 5244HG
- SEBO Rear Axle Clamp — Single, for AUTOMATIC X, ESSENTIAL G, 300/350, 370 and ET-C — SKU 2014
- SEBO Cable Clamp for the Male Contact Holder - AUTOMATIC X and ESSENTIAL G Series — SKU 2494
- SEBO Cable Clamp for the Handle Tube — X Series and ESSENTIAL G Series — SKU 5162
- SEBO Microfilter Holder Cable Clamp for X Series and ESSENTIAL G Series Uprights — SKU 5164
- SEBO Internal Cable Clamp for AUTOMATIC X, ESSENTIAL G and AIRBELT D Series — SKU 5266
- SEBO Filter Safety Catch Clamp for AUTOMATIC X, ESSENTIAL G and 370 Series Uprights — SKU 1073
- SEBO Hinge for AUTOMATIC X1, X2, X4 and X5 — Gray Black — SKU 5154GS
- SEBO Support Lever for AUTOMATIC X1, X2, X4, X5 and ESSENTIAL G1, G2 — SKU 5129
- SEBO Rubbing Plate for Pile Height Adjustment — X Series and CE12 Softcase — SKU 5155GS
- SEBO Axle Spring for AUTOMATIC X and ESSENTIAL G Series, ELECTRONIC 370 and ET-C — SKU 2010
- SEBO Access Door Spring for AUTOMATIC X, ESSENTIAL G and CE12 Softcase — SKU 5304
- SEBO Return Spring for Microfilter Holder - X Series and G Series Uprights — SKU 5210
- SEBO Stop Spring for X Series, ESSENTIAL G Series and 370 Uprights — SKU 5146
- SEBO Support Lever Spring for X Series, G Series and 300/350 Uprights — SKU 5107-1
- SEBO Locking Rod Spring for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5084
- SEBO Safety Catch Spring for Automatic X, Essential G and 370 Series Uprights — SKU 5091
- SEBO Brush Roller Release Spring for Automatic X and Essential G Series — SKU 5103
- SEBO Bag Holder Spring for AUTOMATIC X and ESSENTIAL G Series — SKU 5319
- SEBO Short Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX 2 and ET-2 Power Heads — SKU 5401
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO On-Board Stretch Hose for X Series, G Series, 370 Series and 300/350 Mechanical — Silver — SKU 5040SB
- SEBO Carbon Brush Set for Pre-2001 5211UL and 1843/2 Motors — AUTOMATIC X1, X2 and ELECTRONIC 370 — SKU 0511/1
- SEBO Rubber Motor Mounting for Automatic X and Essential G Series Uprights — SKU 5100
- SEBO Servo Motor and Gearbox for AUTOMATIC X Series Uprights — SKU 5060ER
- SEBO Power Supply and Computer Controller Kit for AUTOMATIC X1, X2, X4 and X5 — SKU 5850ER
- SEBO Shaft Extension for AUTOMATIC X2, X5 and X8 — SKU 5246
- SEBO Handle Lock Plate for Automatic X1, X2 and Essential G1, G2 — SKU 5099
- SEBO Internal Cover Seal for AUTOMATIC X, ESSENTIAL G1/G2 and 370 Series — SKU 5842
- SEBO Bag Housing to Swivel Neck Seal for AUTOMATIC X1, X2, X4, X5 and ESSENTIAL G1, G2 — SKU 5163
- SEBO Filter Tube Seal for AUTOMATIC X, ESSENTIAL G1/G2, 300/350 and 370 Series — SKU 5289
- SEBO Sensor and Motor Pulley for X Series, G Series and 300/350 Uprights — SKU 5117/1
- SEBO Sensor Assembly with Pulley and Screws for AUTOMATIC X2 — Blue Ring — SKU 5383
- SEBO Switch Cap for AUTOMATIC X1 and X2 — Light Gray — SKU 5160HG
- SEBO Switch Cap Holder for AUTOMATIC X1, X2, X4, X5, X7 and X8 — Gray Black — SKU 5161GS
- SEBO Left-Hand Swivel Neck Support for AUTOMATIC X1 and X2 — SKU 5177
- SEBO Right-Hand Swivel Neck Support for Old-Style 5320UL Chassis — AUTOMATIC X1, X2, X4 and X5 — SKU 5178
- SEBO Right-Hand Swivel Neck Bearing for Automatic X Series Uprights — SKU 5101
- SEBO Swivel Neck Assembly for AUTOMATIC X1 and X2 — Includes 5328OR Slider — SKU 5175UL
- SEBO On-Board Cleaning Wand for AUTOMATIC X Series and 370 Uprights — Gray Black — SKU 5045GS
- SEBO Pile Adjustment Wheel for X Series Uprights — Gray Black — SKU 5174GS
- SEBO Gray Black Wheel for AUTOMATIC X1, X2, X4, X4 Boost and X5 — SKU 5819GS
- Genuine SEBO 5093AM X, G, C & Mechanical Vacuum Bags – 8 Pack — SKU 5093AM
- SEBO Pre-Motor Microfilter for AUTOMATIC X, ESSENTIAL G and 300/350 Uprights — SKU 5036AM
- SEBO Exhaust Filter for AUTOMATIC X1, X2, X4 and X5 Uprights — SKU 5143
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Edge Brush Roller for AUTOMATIC X2, X5 and X8 — SKU 5250
- SEBO 15 in. Brush Roller Set for AUTOMATIC X2, X5 and X8 — 2 Piece — SKU 5290AM
- SEBO 15 in. Sealing Strip for AUTOMATIC X2, X5 and X8 — SKU 5400-2
- SEBO Dusting Brush Mounting Clip with Screw for AUTOMATIC X and ESSENTIAL G Uprights — Gray Black — SKU 5460GS
- SEBO Brush Roller Release for X1 and X2 Uprights — White — SKU 5102GW
- SEBO Filter Cover for X1 and X2 Uprights — White — SKU 5007GW
- SEBO Brush Roller Cover for X2 and X5 Uprights - Grey and White — SKU 5249GW
- SEBO Brush Cover Release Latch for X2 Uprights - White — SKU 5239DG
- SEBO 3.2 Flat Washer (DIN 125) for AUTOMATIC X1, X2, X4, X5 and ESSENTIAL G Series — Single — SKU 0143
