Kenmore Power Nozzle Base w...
$19.99
Product details

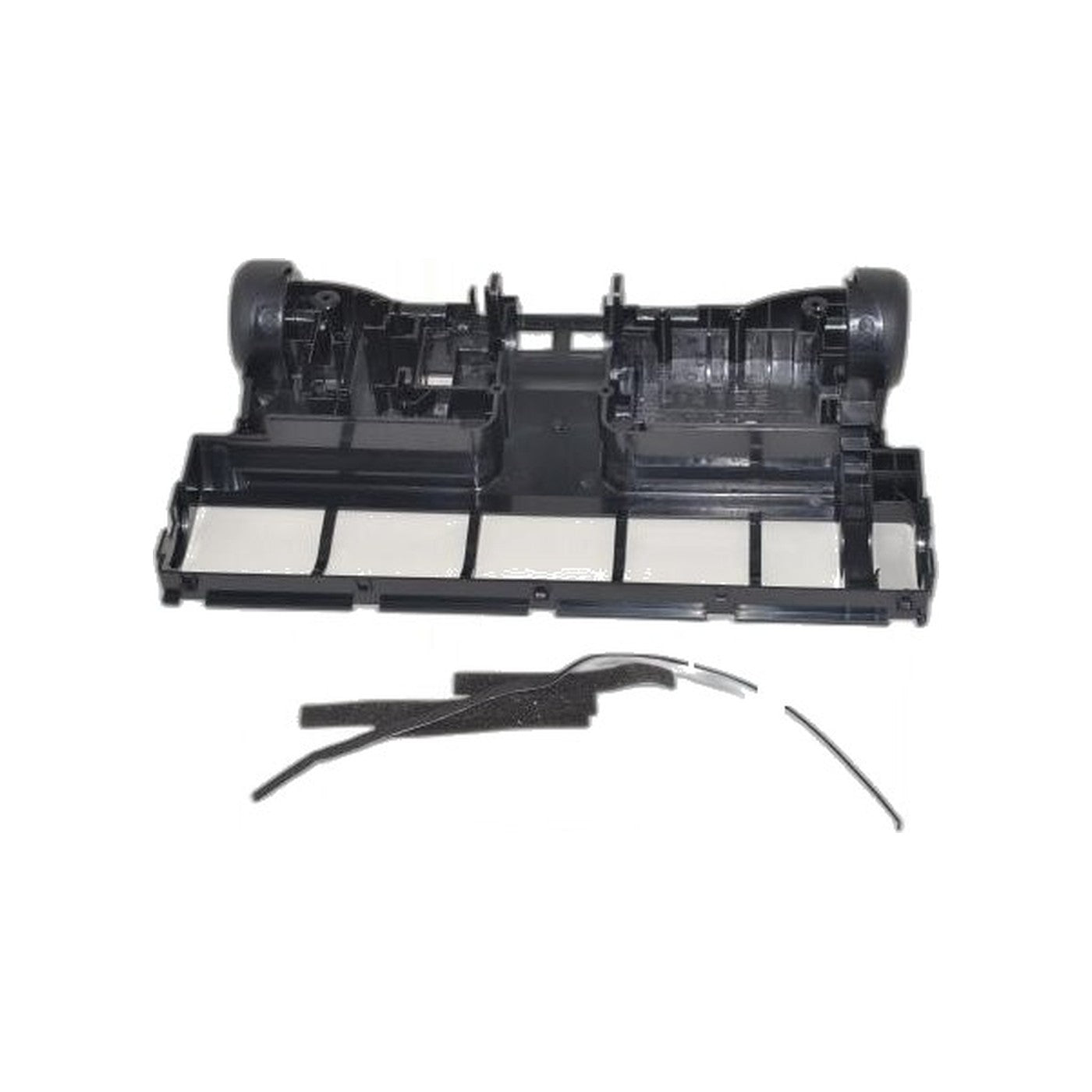

On a Kenmore 7202 power nozzle, part 591007174 is the base that forms the bottom half of the motorized head and carries its wheels. This version arrives with those wheels already mounted, so nothing has to be pulled off the old base and transferred onto a bare shell.
Three things depend on this one part: the brush roll rides at the height it sets, the suction path stays sealed along its underside, and the wheels bolted to it are what let the head roll smoothly instead of dragging. A crack or warp here rarely announces itself the way a snapped part would; instead the nozzle just cleans worse than it used to, an inlet leaks air where the base no longer sits flush, a warped edge throws the brush roll out of alignment on one side, or a chipped corner scores hard floors as the head passes over them.
Because the wheels are already fitted, there is nothing to strip off the old base and carry across before the new one goes on. Pull the brush roll and belt off the old base before you start, and check both for wear at the same time, since a cracked base and a stretched belt often show up together on a power nozzle that has seen years of use.
- Part: 591007174, power nozzle base with wheels
- Fits: Kenmore 7202 power nozzle
- Function: sets brush roll height, seals the suction path, carries the wheels
- Signs of wear: air leak at floor level, uneven brush contact, scuffed hard flooring
- Install note: inspect the brush roll and belt for wear while the base is off
