Carpet Pro Airpath Assembly...
$15.99
Product details

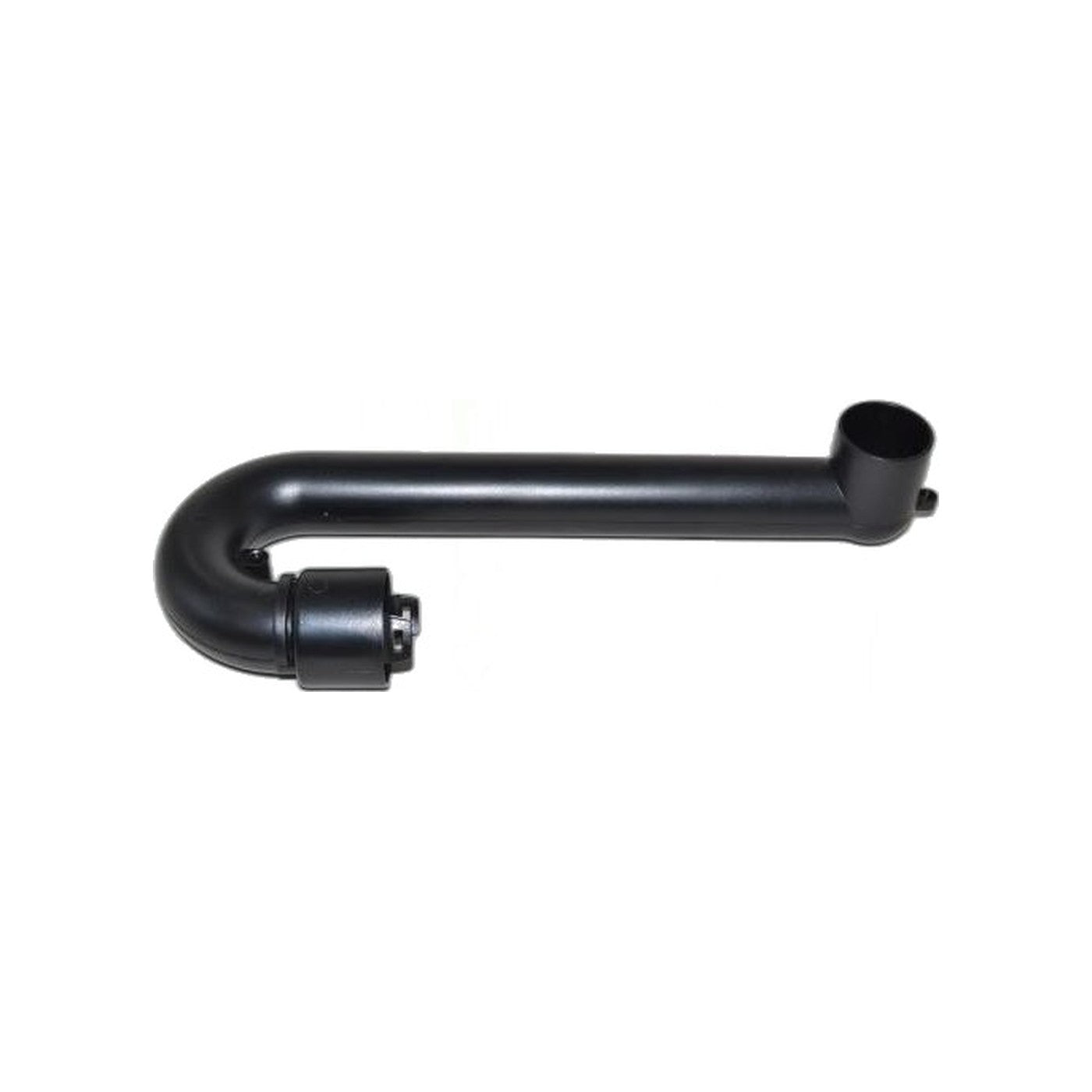

Air moving from the nozzle throat up to the bag on a Titan T3200 upright travels through one continuous molded duct, and this is that piece, sold as part C283-2700.
The same part is listed for the Fuller Brush FBEZM, the Riccar and Simplicity S20EZM, and the Carpet Pro CPU250 and CPU350. The duct flexes slightly each time the machine is tipped back for storage or rolled over a threshold, and wherever it flexes most is where hairline cracks eventually open. Once a crack forms, incoming air finds a shortcut through the opening instead of pulling upward through the carpet pile the way it should, and suction measured right at the nozzle falls off even while the motor keeps spinning at full speed and sounding no different than before. A fine haze of dust settling near the seam, rather than reaching the bag, is often the clearest outward sign that something has given way.
This part is sold as the complete duct rather than a patch, since a taped or glued repair rarely holds under the flexing this section sees during normal use. Swapping the whole assembly resets the seal from the nozzle throat to the bag chamber in one step.
- Part: C283-2700 airpath duct assembly
- Fits: Titan T3200; Carpet Pro CPU250, CPU350; Fuller Brush FBEZM; Riccar and Simplicity S20EZM
- Function: carries air from the nozzle throat to the bag chamber
- Watch for: hairline cracks where the duct flexes, fine dust near the joint
Check your model number against the list above before ordering rather than assuming the duct is universal across these brands, since the shared listing covers exactly the machines named and no others.
