Carpet Pro E Clip - 4MM, CP...
$6.99
Product details

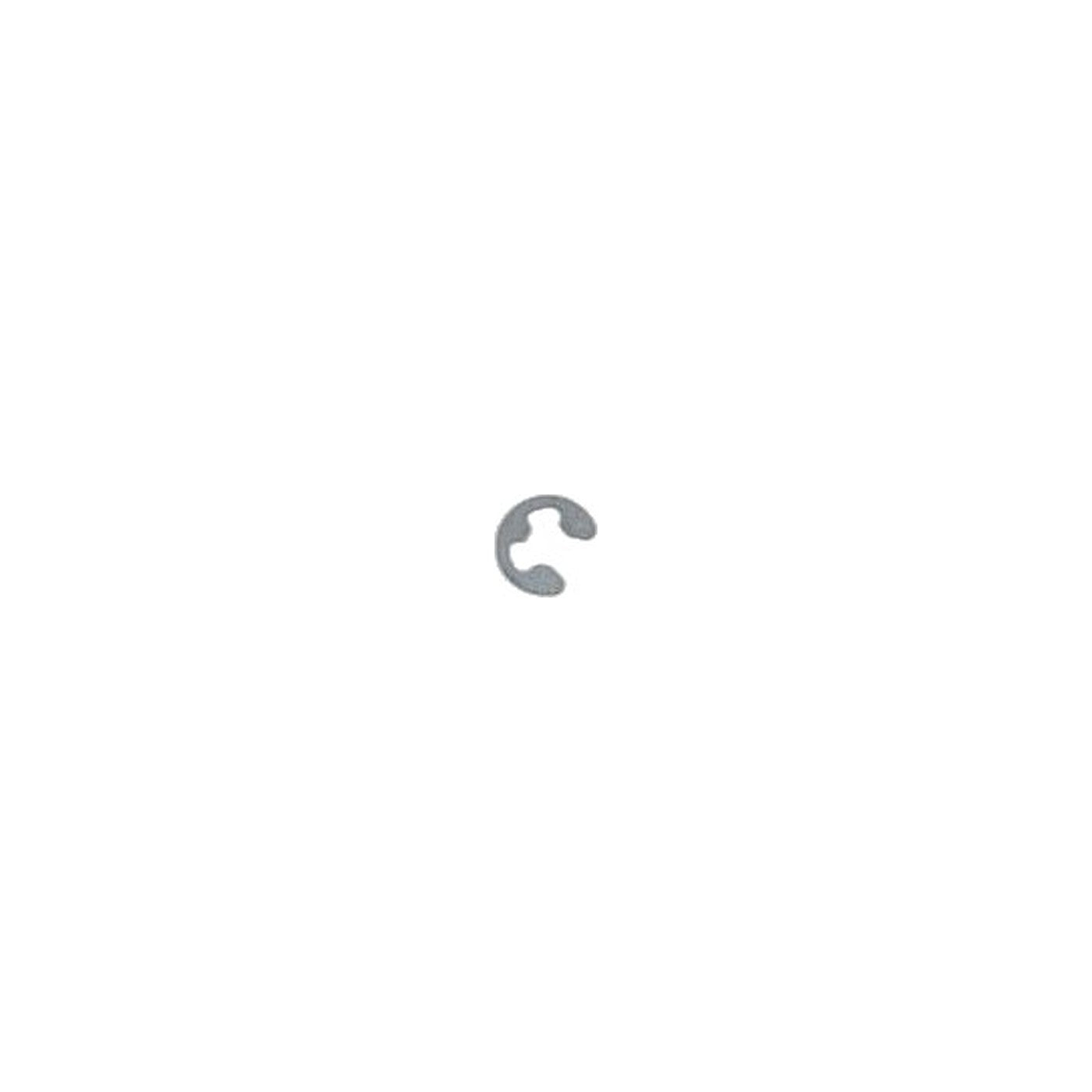

Part A732-0200 is a small 4mm E-clip, a spring retainer that pins a rotating shaft in place, typically a wheel hub or a roller pin, in Carpet Pro's CPU2T commercial upright and its related machines. It snaps into a groove cut into the shaft and holds it centered against the sideways force a rolling wheel constantly pushes back through its axle.
These clips go missing far more often than they physically wear out. One pops free during a repair and rolls off the bench, or years of exposure let its spring tension relax, and whatever it held gradually works loose until something rattles, binds, or falls off entirely. Since the part is inexpensive and takes only seconds to fit, keeping a few spares in a parts drawer beats a second trip to the shop for one small clip.
Groove sizing matters more than it looks. A 4mm clip will not grip a larger shaft securely, so measuring the shaft or matching it against the removed clip before ordering is worth the extra minute. Keep the open side facing away from the load when it goes back on, and avoid stretching the clip past its original shape during removal, since one sprung out of round will not seat as tightly the second time.
- Part: A732-0200, 4mm E-clip
- Function: retains a wheel or roller shaft against sideways force
- Fits: Carpet Pro CMP3QD, CPU1QD, CPU2T, CPU3N, CPU3QD, CPU4N and CPU4T, Clean Max CMPSQD, Fuller Brush FBMMPWCF4, FBPHD2T and FBP-14PWBP, Maytag M700, and Titan T4000.2 and TC6000.2
Snap-ring pliers make for a cleaner install than pushing the clip on by hand.
