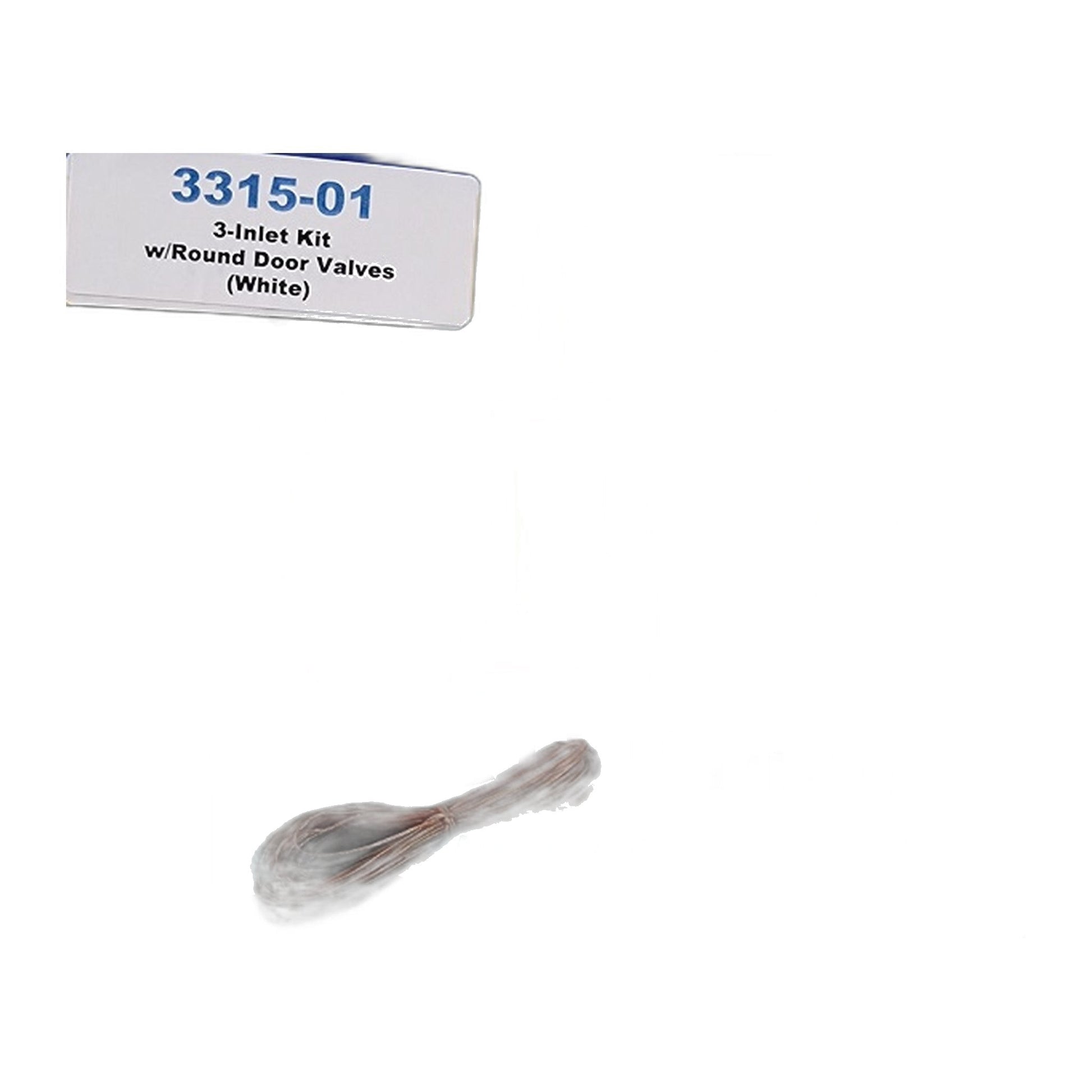

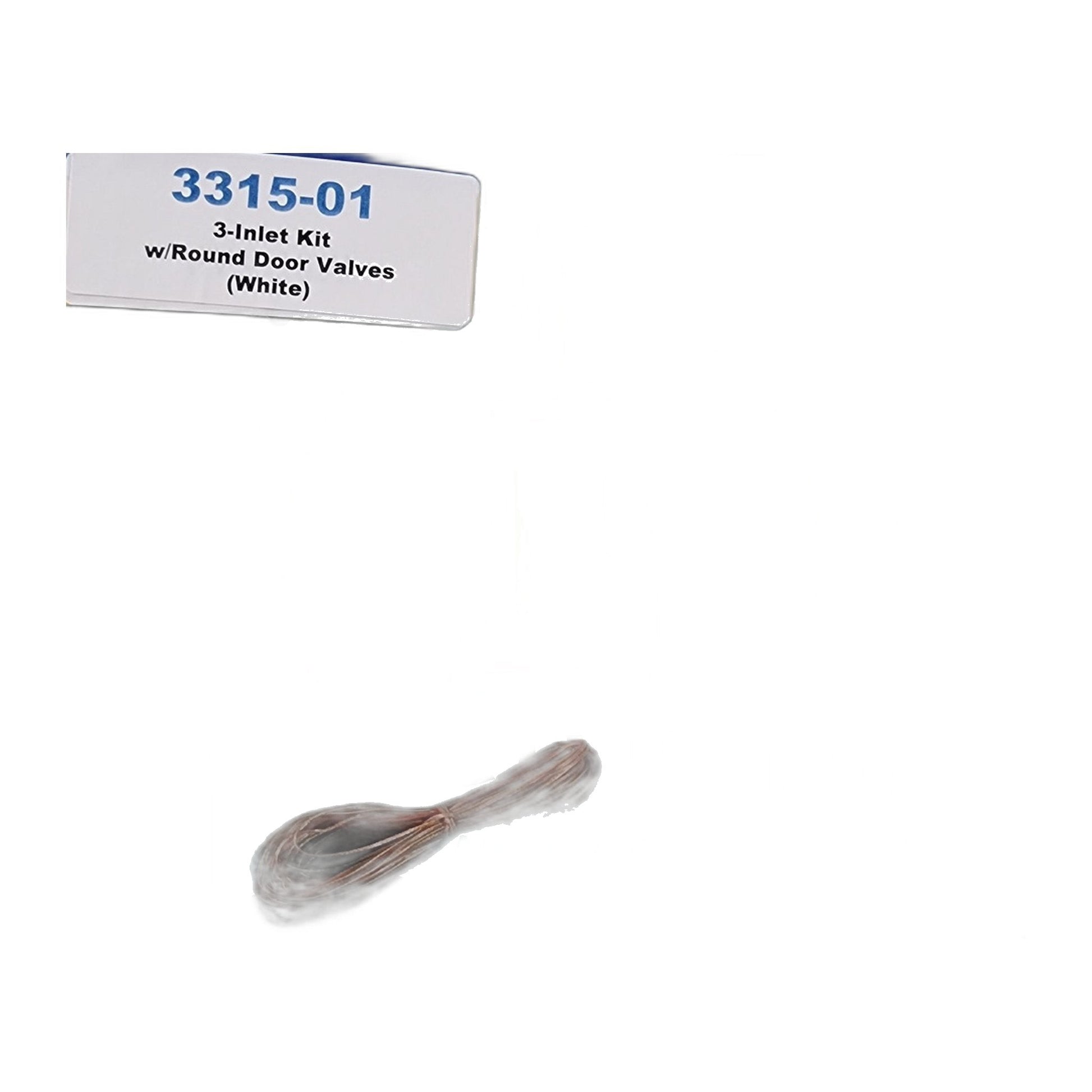

Central Vacuum 3-Inlet Installation Kit, Round Door, White, 50ft Wire

This box covers a full three-inlet expansion in one order: three round-door valves in white, the pipe fittings needed to tie them into your tubing network, 50 feet of low-voltage control wire, and PVC cement to solvent-weld the joints.

Each valve closes automatically under spring tension the instant the hose disconnects, sealing the port against dust and drafts, and its internal contacts complete the low-voltage circuit that starts the power unit the moment a hose end goes back in. The rounded door profile sits flush against the wall and keeps opening smoothly even after repeated paint touch-ups over the years.

• Inlets: Three white round-door valves
• Hardware: Pipe fittings, PVC cement, and a 50 foot spool of low-voltage wire
• Door: Rounded, spring-loaded, closes on its own
• Pipe size: Standard 2 inch central vacuum tubing

Map the run before cutting into the tubing network, since each new inlet needs both a clean pipe joint and a continuous low-voltage wire path back to the power unit. Fifty feet covers most single-run installs, but a third inlet at the far end of a long hallway can eat through that allowance faster than expected, so measure the actual distance first rather than assuming the spool is enough.

Having the wire and cement bundled with the valves means the job does not stall partway through for a hardware store run. Coil and label any leftover wire at the power unit end instead of trimming it flush, since a few spare feet there make splicing in a future inlet or repair far simpler. Listed under SKU 3315-01.
