Beam Circuit Board - Eureka...
$93.99
Product details

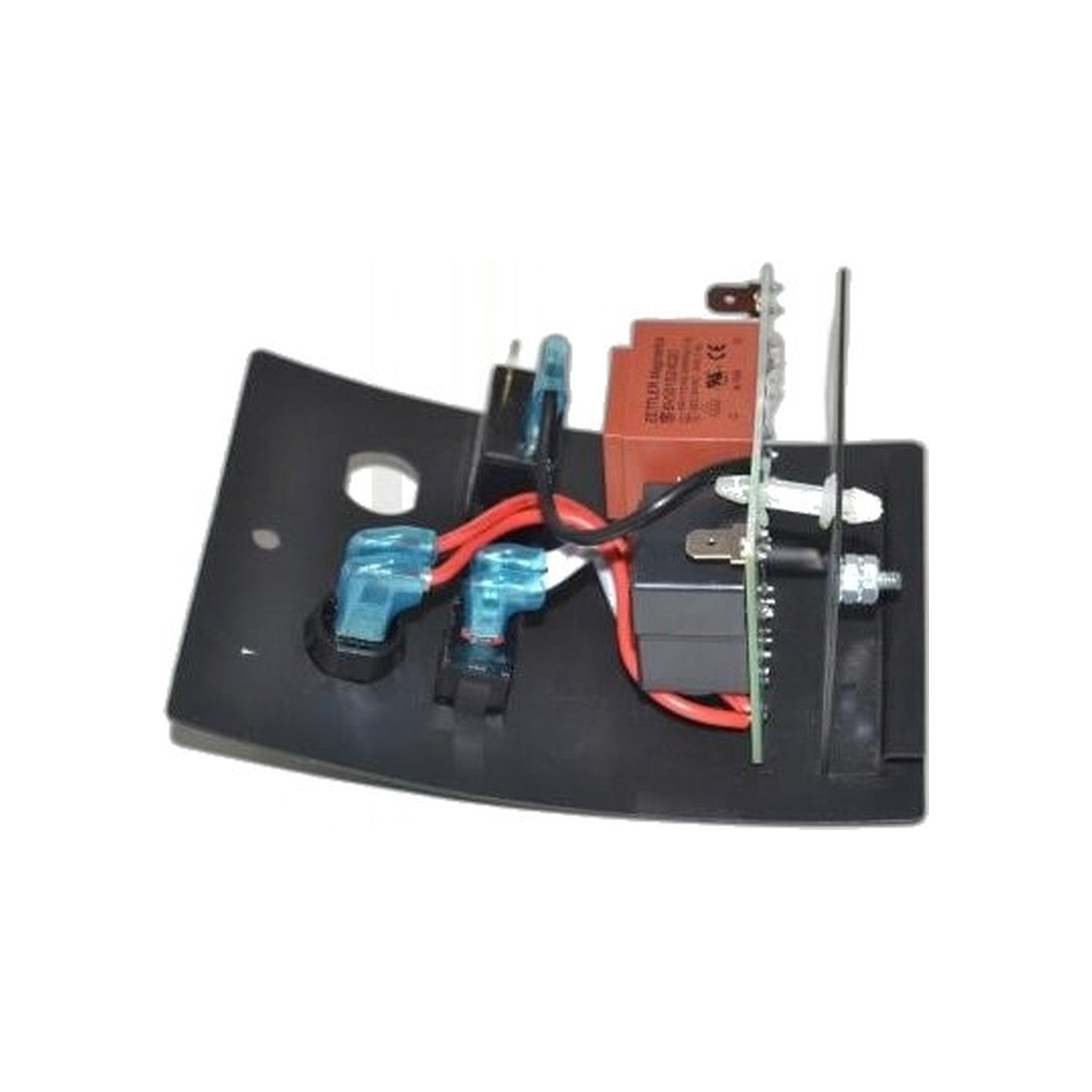

Part 102001 replaces the circuit board inside the Eureka/Beam CV-1801 and CV-1804 central vacuum power units.
A central vacuum depends on this board to read the wall switch and drive the motor accordingly, so board trouble shows up as electrical rather than mechanical symptoms: the unit refuses to start, shuts off partway through a job, or ignores the switch altogether. Checking the electronics before assuming a dead motor saves an unnecessary teardown on an older whole-home system.
- Part: 102001
- Fits: Eureka/Beam CV-1801, CV-1804
- Function: control board for the power unit
Disconnect the unit from power before opening the housing, and match the part number to your existing board before ordering.
Since this board is specific to the CV-1801 and CV-1804, avoid substituting one pulled from a different Eureka or Beam unit even if the connectors appear to match; a mismatched board can fail to read the switch correctly even when it powers up. A worn or corroded low-voltage wire at the wall switch can also produce the same symptoms as a failed board, so a quick visual check of that connection before ordering can rule out a much simpler fix.
