Clean Max Axle - Large Whee...
$8.99
Product details

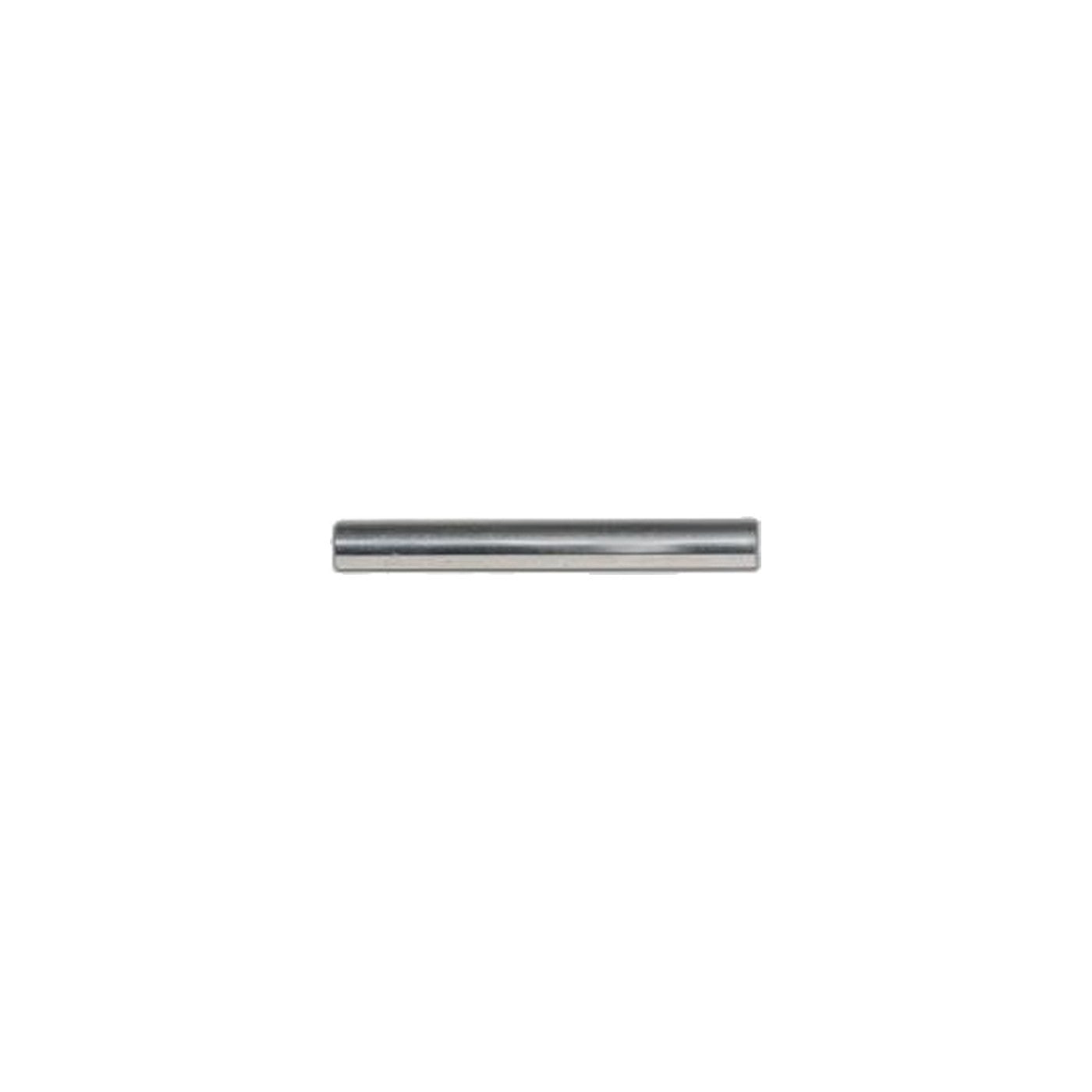

Part B010-2800C is the axle for the large rear wheel on the Titan T500 cordless upright, the pin the wheel actually spins on rather than the wheel itself.
It fits the Clean Max ZM800, the Titan T500, and the Riccar and Simplicity equivalents sold as the R10P and R10S. An axle that has worn oval, or a wheel that has cracked at its hub, shows up as play you can feel when you rock the machine on the floor, a wheel that leans instead of sitting flat, or a rear end that wanders slightly as you push the vacuum in a straight line.
Cordless commercial machines see more starts and stops per shift than a household upright, since there is no cord to manage that would otherwise slow a cleaner down between rooms, and that stop-start loading is what wears the axle faster than steady rolling would. Every abrupt stop transfers a small shock load through the rear wheels, and it is that repeated jolt rather than distance covered that tends to determine how long an axle lasts on these battery machines.
Check the wheel itself for cracking around the hub while the axle is out, since the two wear together and replacing only one when both are worn just brings you back to this job sooner.
- Part: B010-2800C, large wheel axle
- Fits: Clean Max ZM800, Titan T500, Riccar R10P, R10S, Simplicity R10P, R10S
- Function: pin the rear wheel rotates on
- Replace when: the wheel has play, leans instead of sitting flat, or the machine wanders while rolling
- Inspect together: check the wheel hub for cracks while the axle is already out
