Clean Max Upright Motor - Titan T500 Cord Free - 48V DC 14000RPM
Clean Max Upright Motor - Titan T500 Cord Free - 48V DC 14000RPM
SKU:D223-2100
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Clean Max Upright Motor - T...
$99.99
Product details

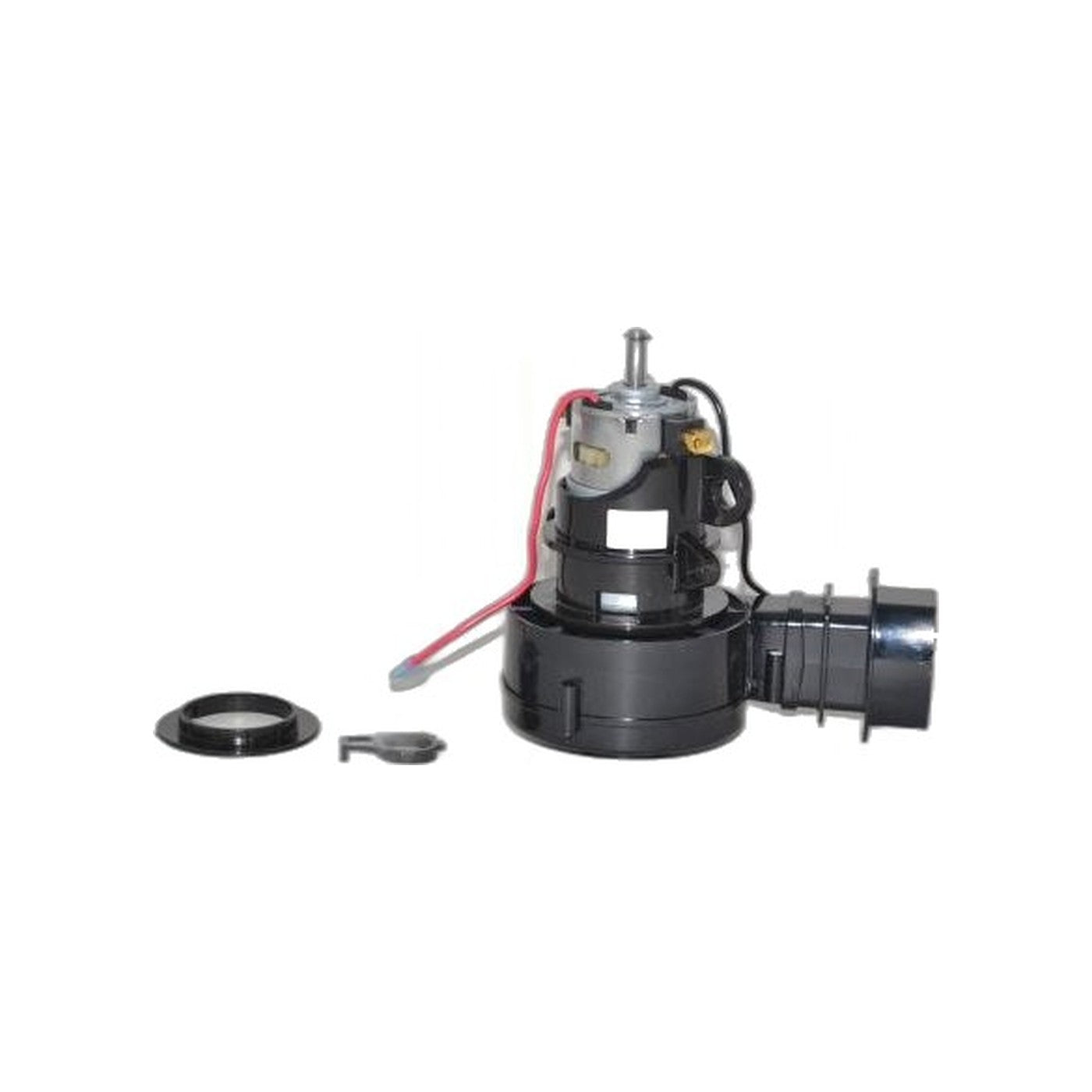

Part D223-2100 is the upright motor built for the Titan T500 cord-free vacuum, a 48-volt DC motor turning at 14,000 RPM. It is also cataloged without the hyphen, as D2232100, and it restores airflow and brush drive to a battery-powered upright that has lost cleaning power.
The same motor drives the CleanMax ZM800 as well as the Titan T500, since both are cord-free uprights built around this 48-volt DC drive unit. On a cordless machine, the motor is essentially the entire power system, so once it goes, the whole vacuum goes with it regardless of how much charge remains in the battery.
A motor nearing the end of its life tends to give warning signs first: a hot smell after a cleaning run, a new grinding or whining note that was not there before, or cutouts partway through a pass that seem to come and go. Total failure looks different only in that there is no warning left, just a fully charged battery and a machine that will not spin up at all.
Before assuming the motor, charge the battery fully and confirm the machine still will not run, since a weak battery pack can mimic some of the same early symptoms. Once the battery is ruled out, disconnect it entirely before opening the motor housing, and note how the wiring is routed before disconnecting it so every lead lands back exactly where it came from. Seat the new motor fully into its mount so vibration does not work it loose over time. We are an authorized dealer for both CleanMax and Titan, and this motor carries the manufacturer's warranty.
- Part: D223-2100, 48V DC motor, replaces D2232100
- Speed: 14,000 RPM
- Fits: CleanMax ZM800, Titan T500
- Symptom it fixes: lost airflow, unusual motor noise, or a cordless upright that will not start
- Install note: rule out the battery first, then disconnect it and record wiring positions before removing the old motor
