Bissell Detent Release - 17...
$6.99
Product details

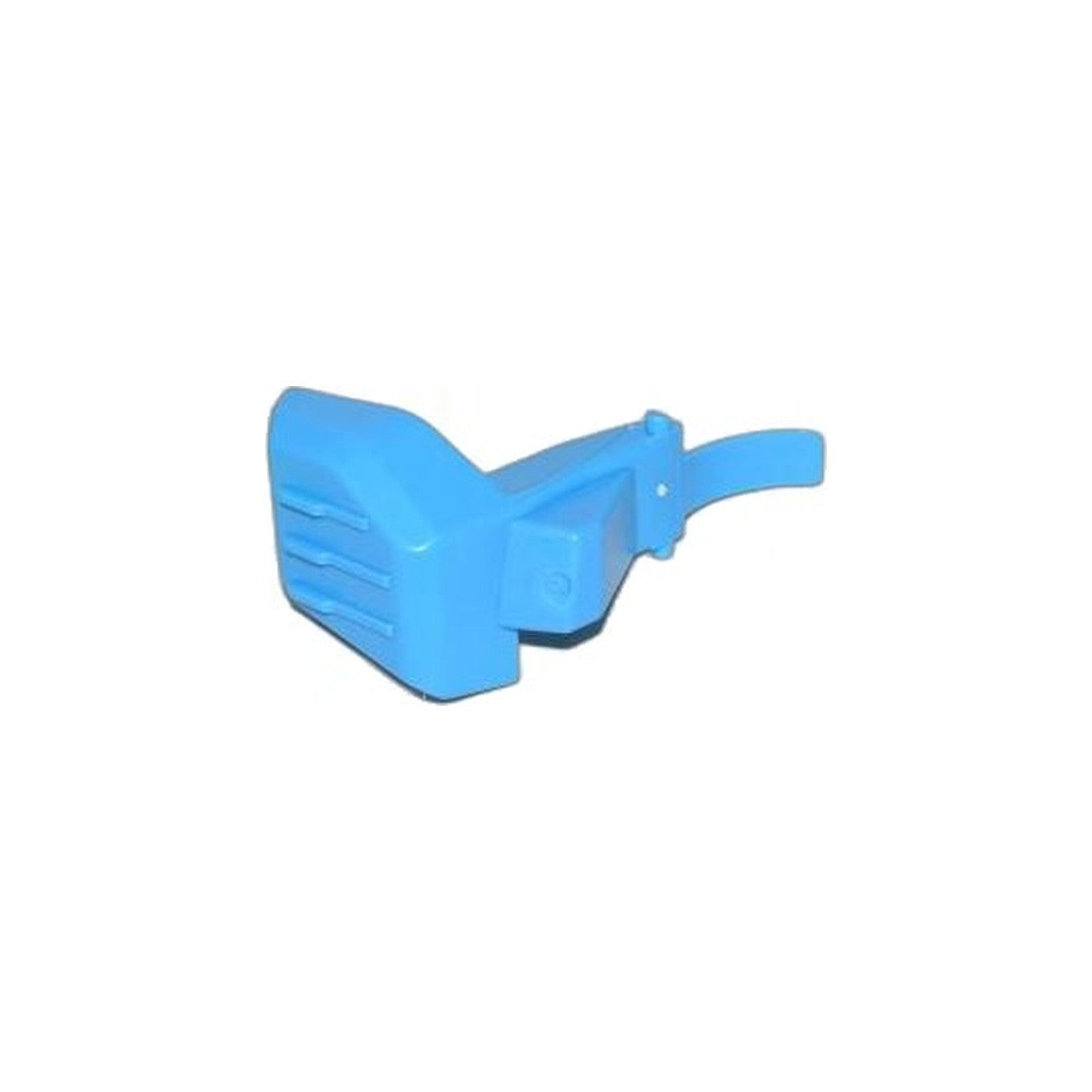

Reclining a Bissell 1739 or 2019 upright depends on a small detent release at the handle pivot, the piece that lets the handle drop into cleaning position and then locks it there instead of letting it flop loose. Most owners never think about it until it stops working, at which point the handle either will not recline at all or will not stay down once it is there.
This part takes load in two directions with every use: the push that releases the detent, and the snap-back force as the handle locks into its next position. That repeated cycling eventually cracks the plastic around the detent tooth or rounds the tooth itself until it stops catching cleanly. Once that happens the handle slips out of position mid-clean, or will not lock upright when the machine is parked for storage between uses.
Part 1612580 goes back into the original mounting point in the handle assembly, so no modification to the housing is needed. Verify your model number against the 1739 or 2019 before ordering, since Bissell has used similar-looking detent designs across other upright families that are not interchangeable with this one.
A handle that sticks partway down, rather than either locking firmly or flopping freely, is often an early sign that the detent tooth is wearing rather than fully broken, and it is worth replacing before the part fails completely and the handle stops holding any position at all.
- Fits: Bissell 1739, 2019 upright
- Part: 1612580 detent release
- Function: locks and releases the handle recline position
- Symptom: handle will not stay down, or will not lock upright for storage
- Install: follow the original assembly order and work the release by hand to confirm a solid click at each position before final reassembly
