Perfect Fit Hoses Internal ...
$12.99
Product details

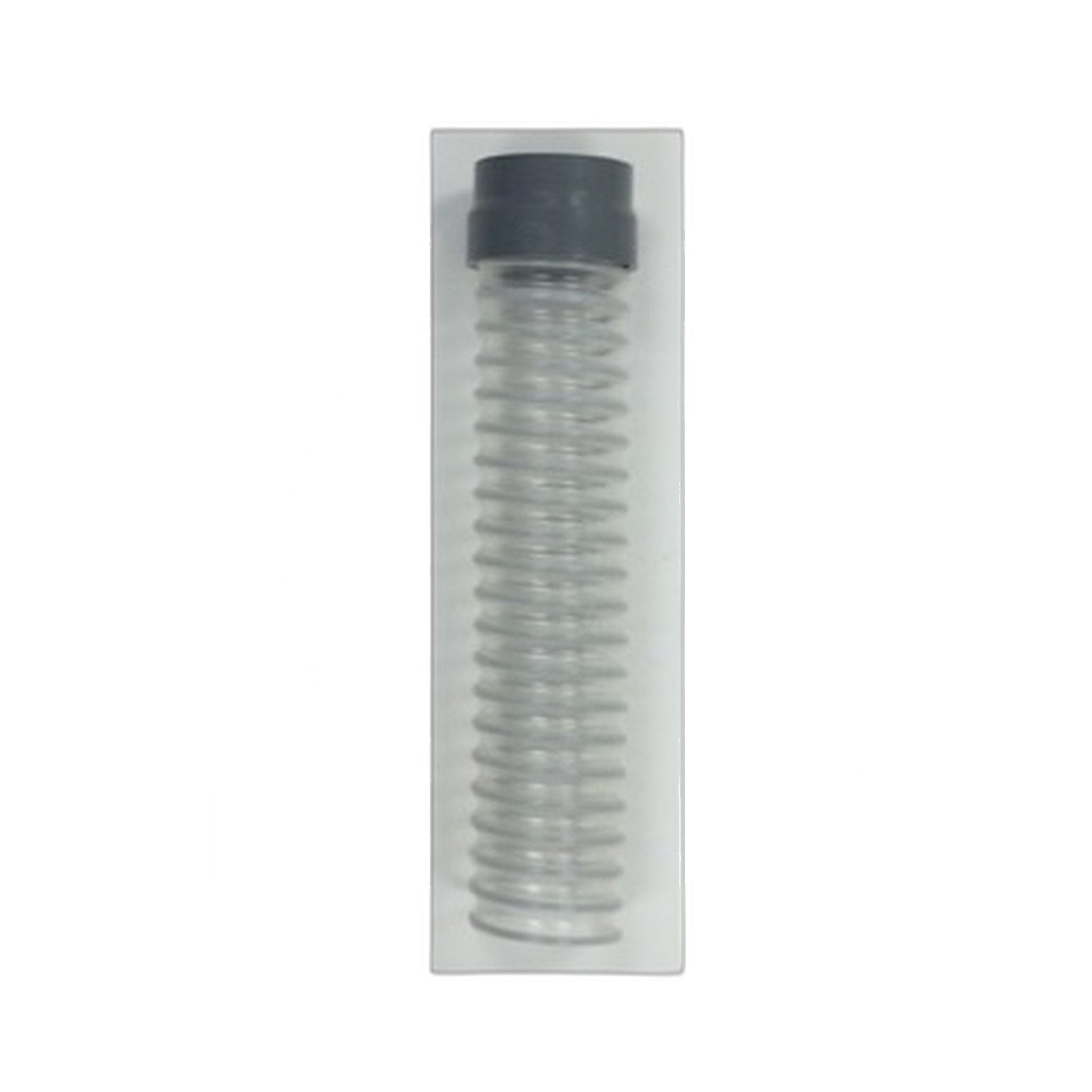

Perfect Fit Hoses builds this internal hose for Dyson's DC04, DC07, DC14, DC33 upright vacuums, replacing the airflow line that runs inside the machine body linking the cleaner head to the cyclone assembly. Every recline of the machine and every brush-bar engagement flexes this hose, which puts more mechanical stress on it than almost any other part in the airflow path.
A hose in this position rarely fails all at once. It typically starts as a hairline split near a bend, grows into a leak you can hear as a whistle over the motor noise, and eventually costs you noticeable pickup even with clean filters and an empty bin. Once a crack opens wide enough to bleed air, no amount of filter maintenance restores suction, because the machine is losing air before it ever reaches the floor nozzle.
Because the internal hose sits deep inside the body, a leak here is easy to misdiagnose as a filter or belt problem first. If you have already checked the filters and the belt and suction is still weak, pulling the body apart to inspect this hose for cracks is the next logical step.
This replacement is molded to the shape and end fittings these four Dyson chassis share, so it drops into those same ports without cutting or adapting. Confirm which of the four models you own before ordering, since Dyson changed internal routing on later platforms and a hose built for this group will not fit outside it.
- Fits: Dyson DC04, DC07, DC14, DC33 uprights
- Part type: Internal airflow hose linking cleaner head to cyclone
- Common failure signs: hairline cracks, whistling air leak, reduced pickup
- Part: 12-1100-03
