Eureka Commercial Upright S...
$6.99
Product details

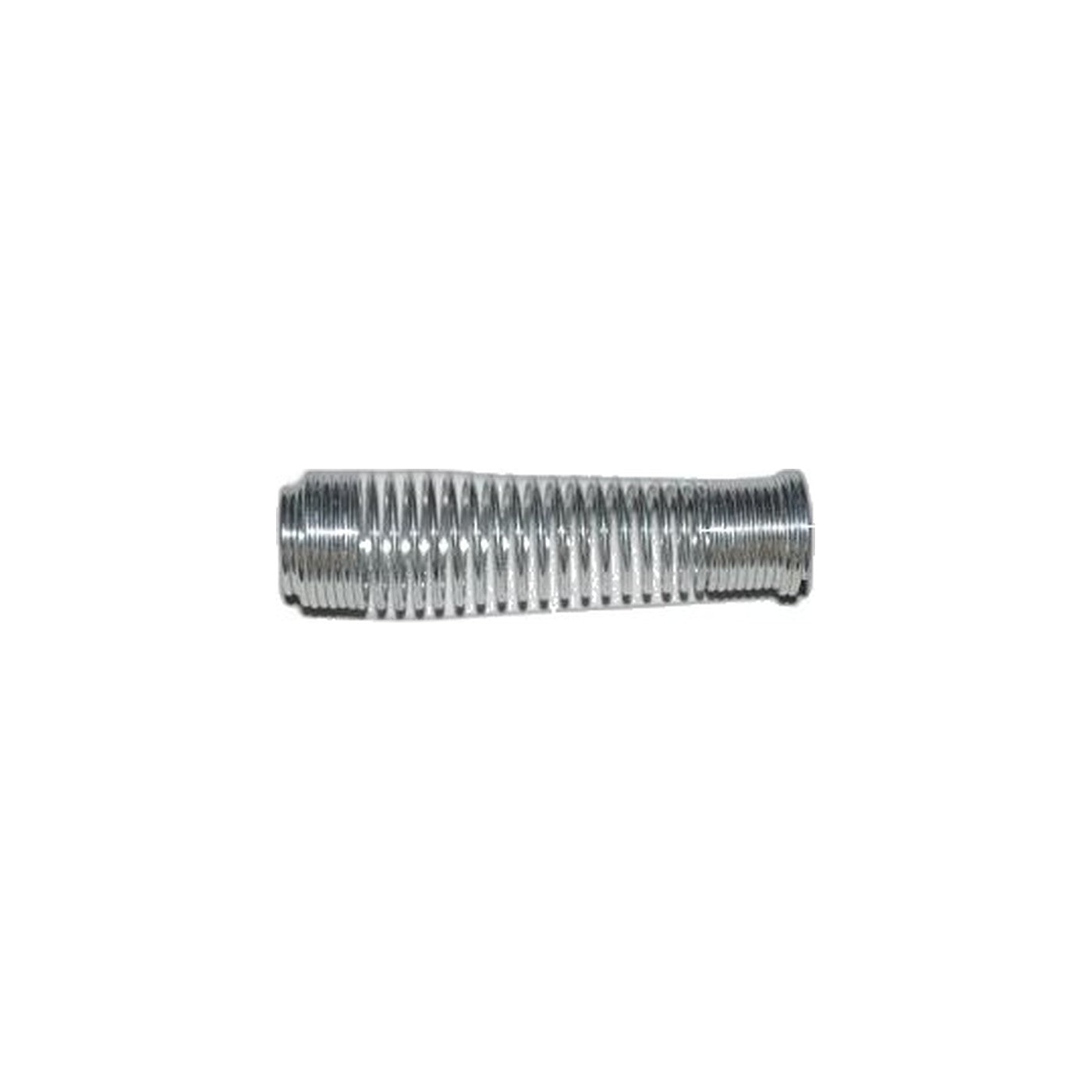

The strain relief spring, part 20-5600-09, is the small coil that supports the power cord right where it exits the base on a Eureka or Sanitaire commercial upright. That single point flexes more than the rest of the cord combined, because the machine gets wrapped and unwrapped dozens of times a shift and the cord bends sharply against the housing edge every time it does.
Once the spring loses its shape or snaps outright, the cord no longer has support at that exit point and starts flexing directly against the plastic edge instead. Internal conductors break down from the inside while the outer jacket still looks intact, which is a slower and less obvious failure than a visible cut, and a more dangerous one. Swapping the spring before that happens is a five-minute job that heads off a much bigger repair.
- Part: 20-5600-09 strain relief spring
- Fits: Eureka and Sanitaire 1950A, C2094B, C2094G, C4046B, SC688, SC689A, and SC886F, among related commercial upright models
- Function: Supports the cord where it meets the housing and absorbs flex
- Watch for: A cord that feels stiff or crimped right at the machine body
The spring slips over the cord and seats into the same opening as the original, with nothing beyond a screwdriver required. Check the cord itself for cracking while it is apart, since a new spring will not fix a jacket that has already failed.
Because this spring costs little next to the labor of chasing an intermittent cord fault, many shops swap it proactively whenever the cord itself gets serviced, rather than waiting for a visible failure to show up on its own.
