Hoover Wiring Harness - CH3...
$11.99
Product details

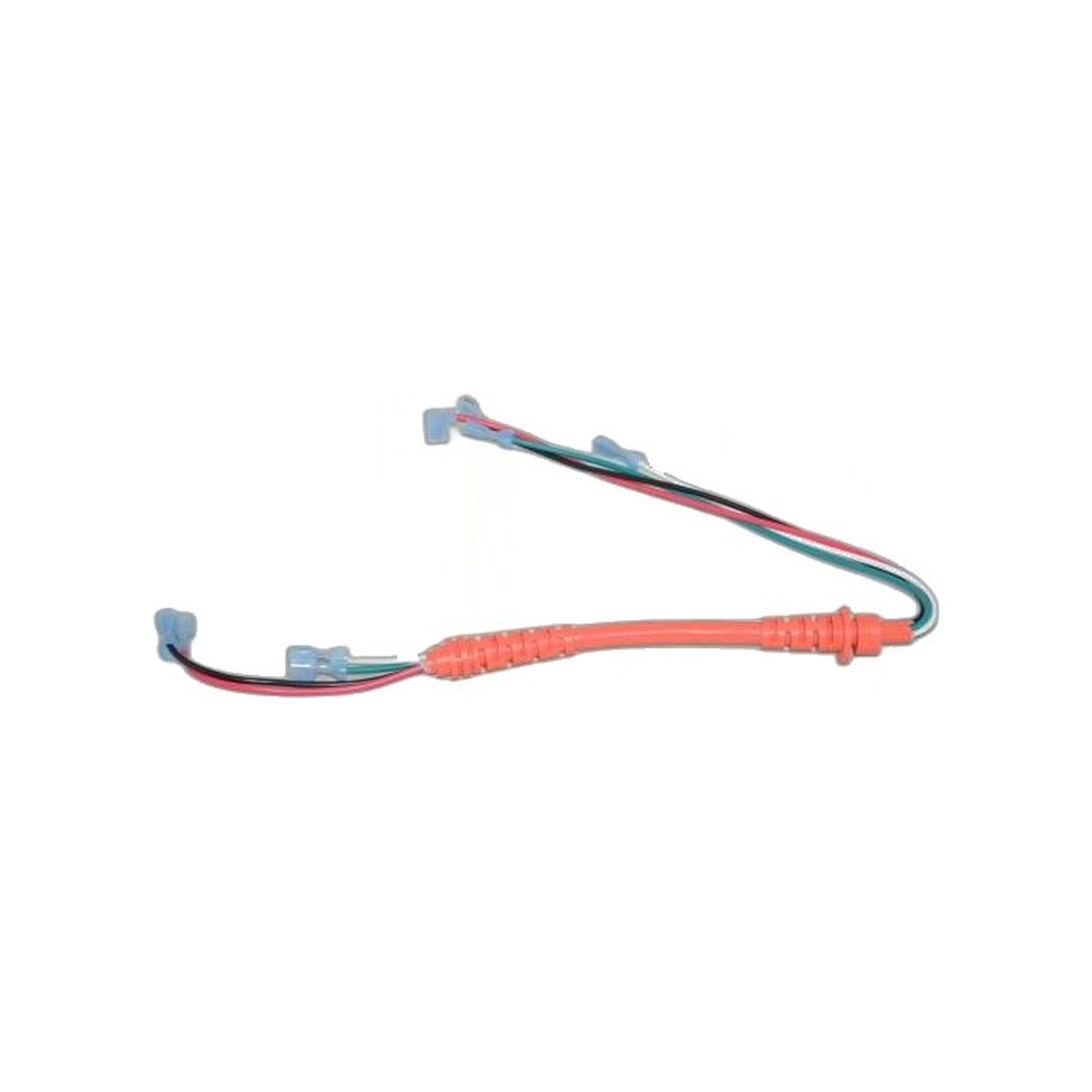

Part 440009084 is the wiring harness for the Hoover CH34006 backpack vacuum, the loom that links the machine's electrical system together and carries power through to the motor. On a backpack machine the harness lives against a wearer's back for a full shift, flexing with every step, and that constant movement is what eventually breaks it down where a bench-mounted canister harness would rarely see any stress at all.
The failure pattern is usually gradual before it turns sudden. Insulation cracks where a wire bends against a frame edge, a crimped connection works loose from vibration, and the machine starts cutting out when the operator turns a certain way or bends over to reach under furniture. Left alone, an intermittent fault like that becomes a dead machine, and by then it is often hard to tell whether the harness, the switch, or the motor is at fault without pulling the housing apart and testing each section in turn.
Swapping the whole harness rather than splicing a single wire puts every connection back to full working order at once, which matters more on a machine an operator wears than one that stays parked on a floor. A spliced repair also tends to fail again at the splice point, since the same flexing that broke the wire keeps working on the joint, while a full assembly swap resets the clock on the entire run. It fits the Hoover CH34006 backpack.
- Part: 440009084, wiring harness assembly
- Fits: Hoover CH34006 backpack vacuum
- Function: carries power through the machine's electrical system to the motor
- Replace when: the vacuum loses power intermittently, especially when the machine flexes or shifts on the wearer's back
- Before ordering: unplug the machine and inspect visible wiring for cracked insulation or a loose connector before assuming the harness is the cause
- Install note: route the new harness along the same path as the original so it clears moving frame joints once the housing is closed back up
