SEBO Complete Inside Bag Co...
$56.00
Product details

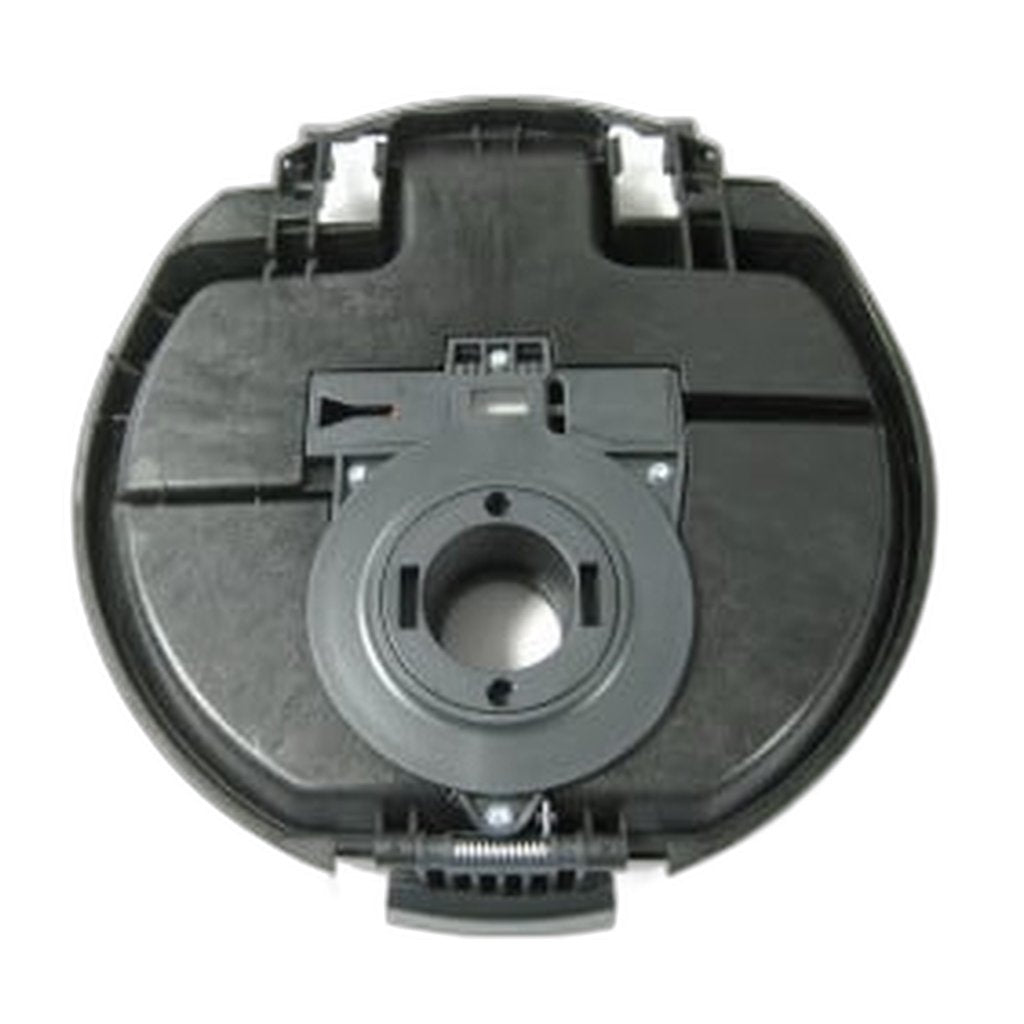

Seven numbers arrive already built into one panel here. 8051AM1 is the inside bag cover supplied complete for the AIRBELT D1 Turbo, shown as item 35 on the AIRBELT D drawing, and SEBO publishes what goes into it: the bag cover insert 8129GS, the bag indicator with its spring 7020ER, the cover seal 8130, the plain hose neck 8078GS, the indicator adjuster 8127ER, screw 01036 and the cover release with axle and spring 8114ER.
This panel forms the inner wall of the bag chamber. It squares the collar of the filter bag over the inlet and holds it on its seat, carries the release catch, and drives the indicator that reports a full bag. Air finding a way past a badly seated collar arrives at the motor filter instead of travelling through the media, so a filter loading far too early, or dust settling inside the chamber itself, is what usually sends someone to this part. Several hundred bag changes leave the catch, the seal and the indicator gear worn by different amounts, which is why SEBO services the panel as one item rather than asking a technician to chase them individually.
- Order code: 8051AM1
- Machine: AIRBELT D1 Turbo
- Condition supplied: assembled, not as loose components
- Numbers built into it: 8129GS, 7020ER, 8130, 8078GS, 8127ER, 01036, 8114ER
- Drawing reference: AIRBELT D sheet, item 35 - the adjuster is item 33 and the cover seal item 34
- Other build: 8051AM4 carries a wired hose neck
Nothing worn transfers over, since the panel arrives ready built. Filter bags for the same canister are boxed under 8120AM, and a fresh one is worth fitting once the new panel is in. Searches for a SEBO D1 inside bag cover, an AIRBELT D1 bag compartment panel or a D1 Turbo inner cover complete all describe this assembly. Genuine SEBO from an authorized dealership. Ships in 2-5 business days.
