Panasonic Motor Assembly AC...
$146.99
Product details

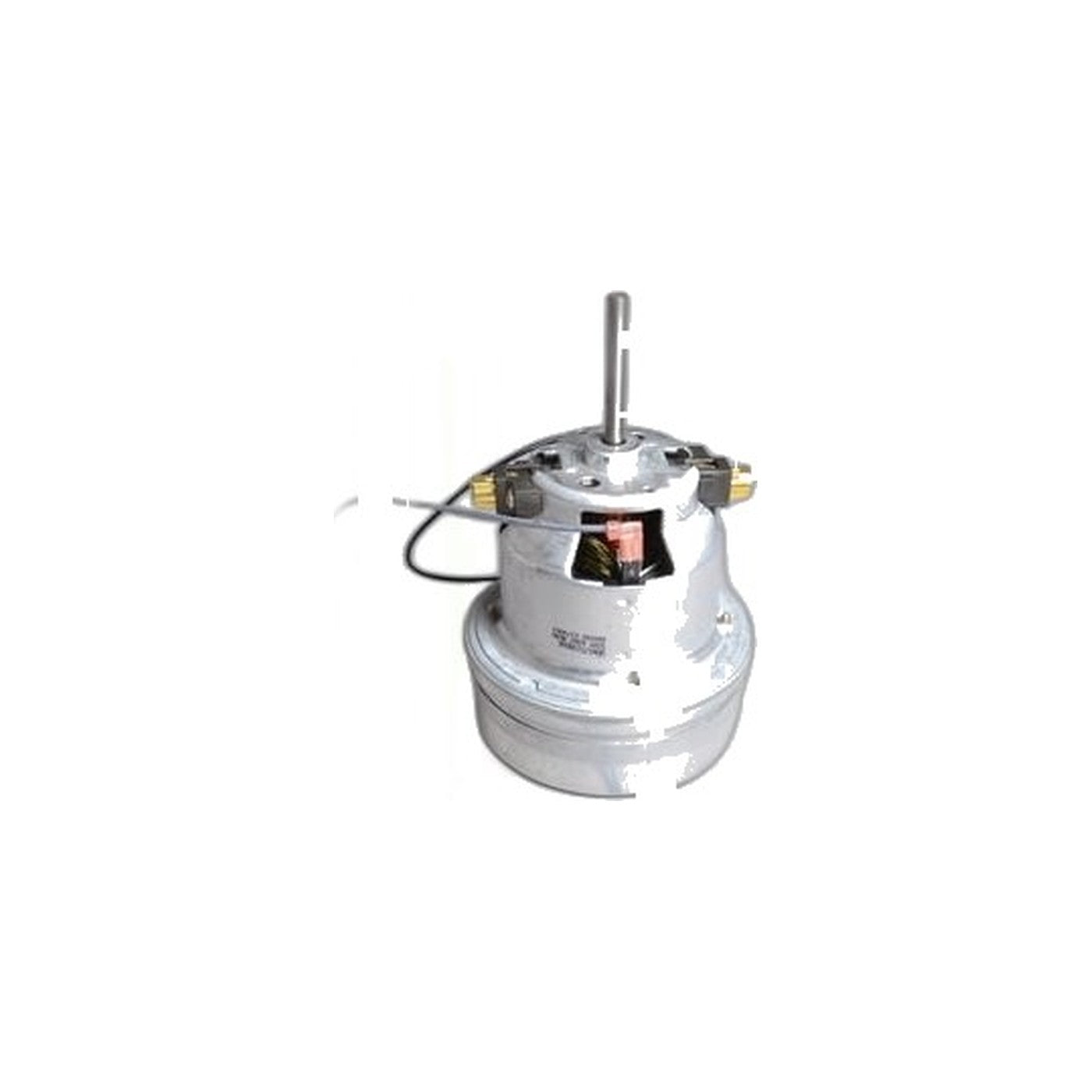

Part AC92FARUZ00 is the motor assembly for the Panasonic MC-V7367, a model Panasonic sold under its Tri-Force upright line. It comes as a complete assembly rather than as a bare motor, so there is no separate fan or shroud to transfer over from the old one.
Panasonic assigned this assembly to the MC-V7367 specifically, and vacuum motor assemblies are matched to the housing they sit in rather than shared freely across a brand's range. Check the number on the assembly coming out of your machine against AC92FARUZ00 before ordering, and verify it against your machine's part diagram rather than matching on the model name alone.
The failure signs are the ones common to any vacuum motor: suction that has dropped and does not come back with a clean bag and filter, a grinding or whining bearing note that was not there before, running that cuts in and out, or a burning smell after a few minutes on. Any of those point to the motor rather than a blockage elsewhere in the machine.
Before pulling the machine apart, clear the simpler causes: a full bag, a loaded filter, or a blocked hose will starve a healthy motor and produce the same complaint. If suction stays weak with all of that clear, the motor assembly is the part to change. Disconnect the vacuum from power before opening the housing, and if the wiring inside is unfamiliar, have a technician make the swap.
- Part: AC92FARUZ00
- Fits: Panasonic MC-V7367 (Tri-Force line)
- Form: complete motor assembly
- Symptoms: faded suction, bearing grind or whine, cutting out, burning smell
- Before ordering: match the part number on the assembly being removed and check your machine's part diagram
