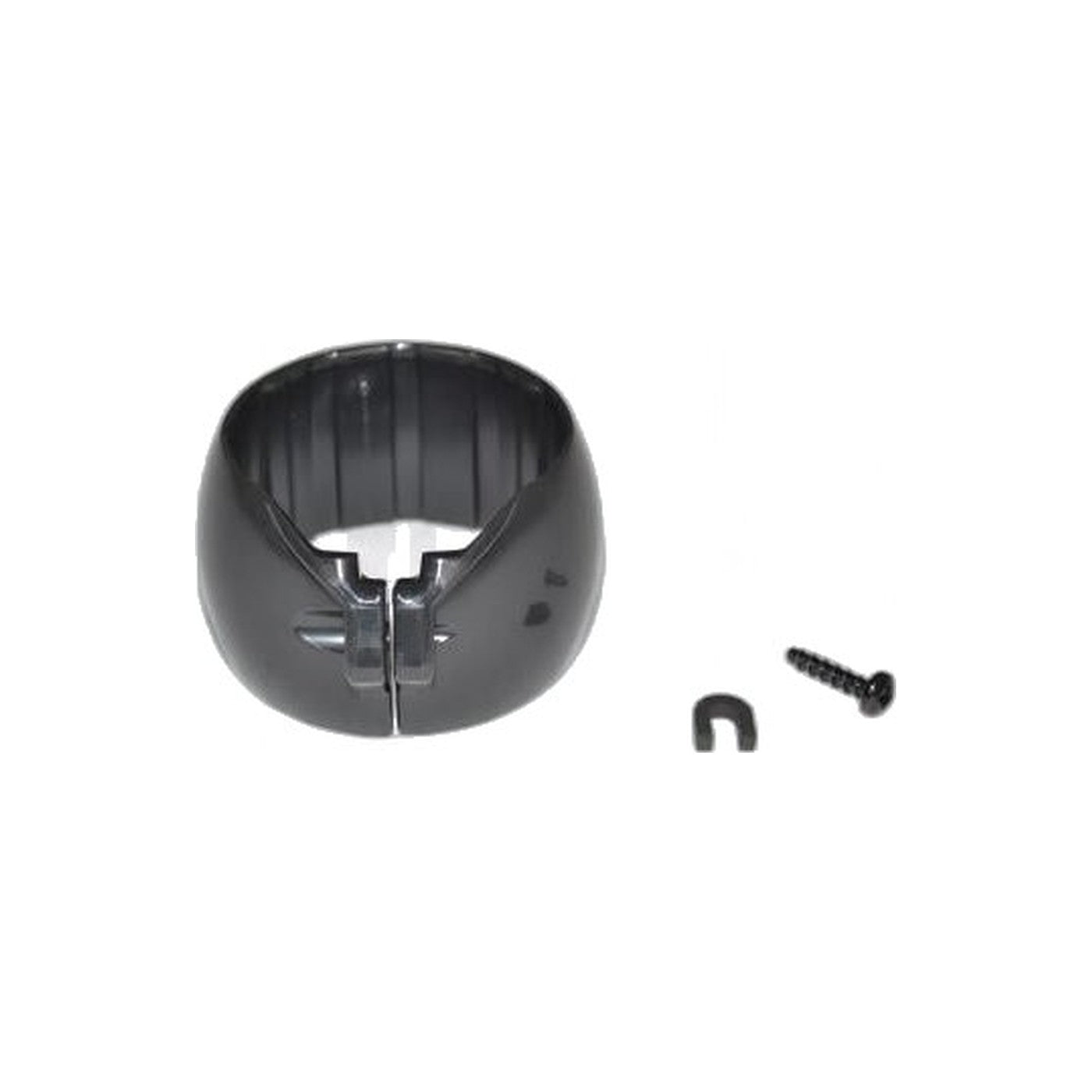

Oreck Clamp Assembly - U7240 Pilot Upright

Part 09-79038-51 is the clamp assembly on the Oreck U7240 Pilot upright, a small tensioned piece that keeps sections of the housing pulled tight against each other rather than doing any visible cleaning work itself. Like most plastic clamps under constant tension, it tends to give out at its pivot point instead of cracking straight across, and it often goes with little warning.

Once this clamp loses its grip, whatever it was holding shut begins to shift with every pass of the machine. A joint that should stay fixed starts to rattle first, wears at the contact points next, and if the clamp was part of the housing's sealed path, a lost seal follows after that. Catching the problem while it is still just a rattle beats waiting for the housing to come apart mid-use.

Swapping the clamp is quick once the housing is open, and it puts the same firm closure back in place that the machine had when new. It is a minor part, but a machine running daily depends on every small fastener holding its housing together.

• Part: clamp assembly, 09-79038-51
• Fits: Oreck U7200ECB, U7210ECB, U7210ECR, U7211ECB, U7211ECG, U7211ECP, U7211ECR, U7212ECB, U7220ECS, U7230ECS, U7240ECS, U7241ECS, U7250ECS, U7300ECB, U7330ECBS, UK30300, UK30300COM, UK30300PC
• Function: holds housing sections closed under tension
• Symptom of failure: a rattle that grows into a lost seal

Several Pilot-series machines use clamps that look nearly identical, so check this part number against your unit's own documentation rather than matching by appearance.
