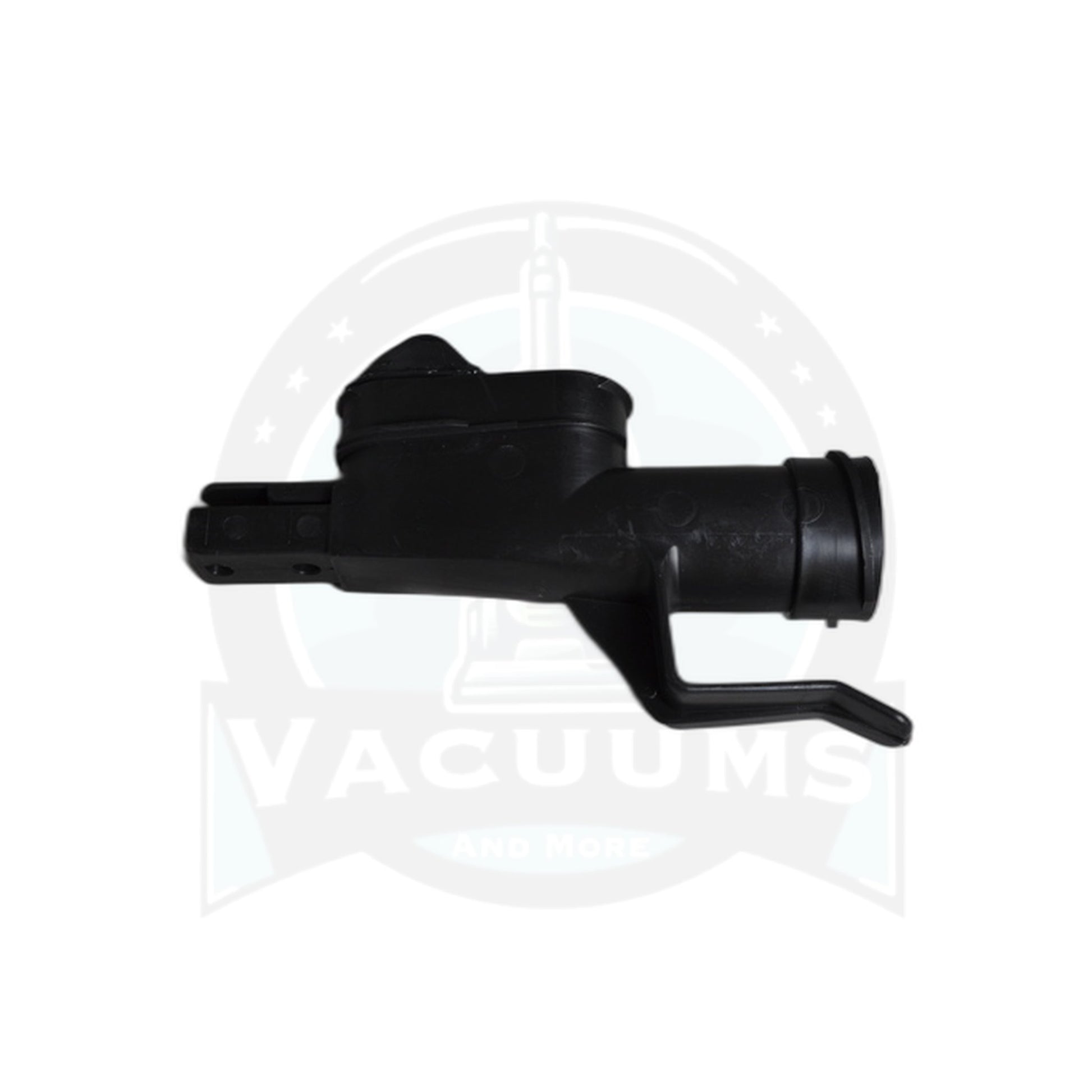

Oreck Bag Connector Assembly (Screw Type) - XL2200 / XL2250 Upright

Part 430001178 threads into place to join the bag to the machine on Oreck's XL2200 and XL2250 uprights, and it is the screw-type fitting that this part number covers rather than any other connector style Oreck used.

This is the joint the bag is fastened at, so a crack or a stripped thread here shows up as a leak at the connector rather than as a fault anywhere else on the machine. Suction at the floor falls off while nothing else has obviously changed, and that is what makes the connector easy to pass over when looking for the cause.

• Part: 430001178
• Style: screw-type bag connector assembly
• Confirmed for: XL2200, XL2250, U2000E, U2000EB, U2200HHS, U2200RD, U2310RD, U2330RD, U2510RH, U2530RH, U2630 series, U2650 series, U3120HH, U3620HH and U3700 series
• Also: Royal UR32200PC, plus a wider Oreck range including XL2000HH, XL2100RH, XL2300RS, XL2700HH and XL3600RH

Oreck used this same screw-type fitting on a much longer list of bagged uprights than the ones named here, so hold it up against the connector already in your machine if your model is not on the list above. Ships to you in 2-5 business days.
