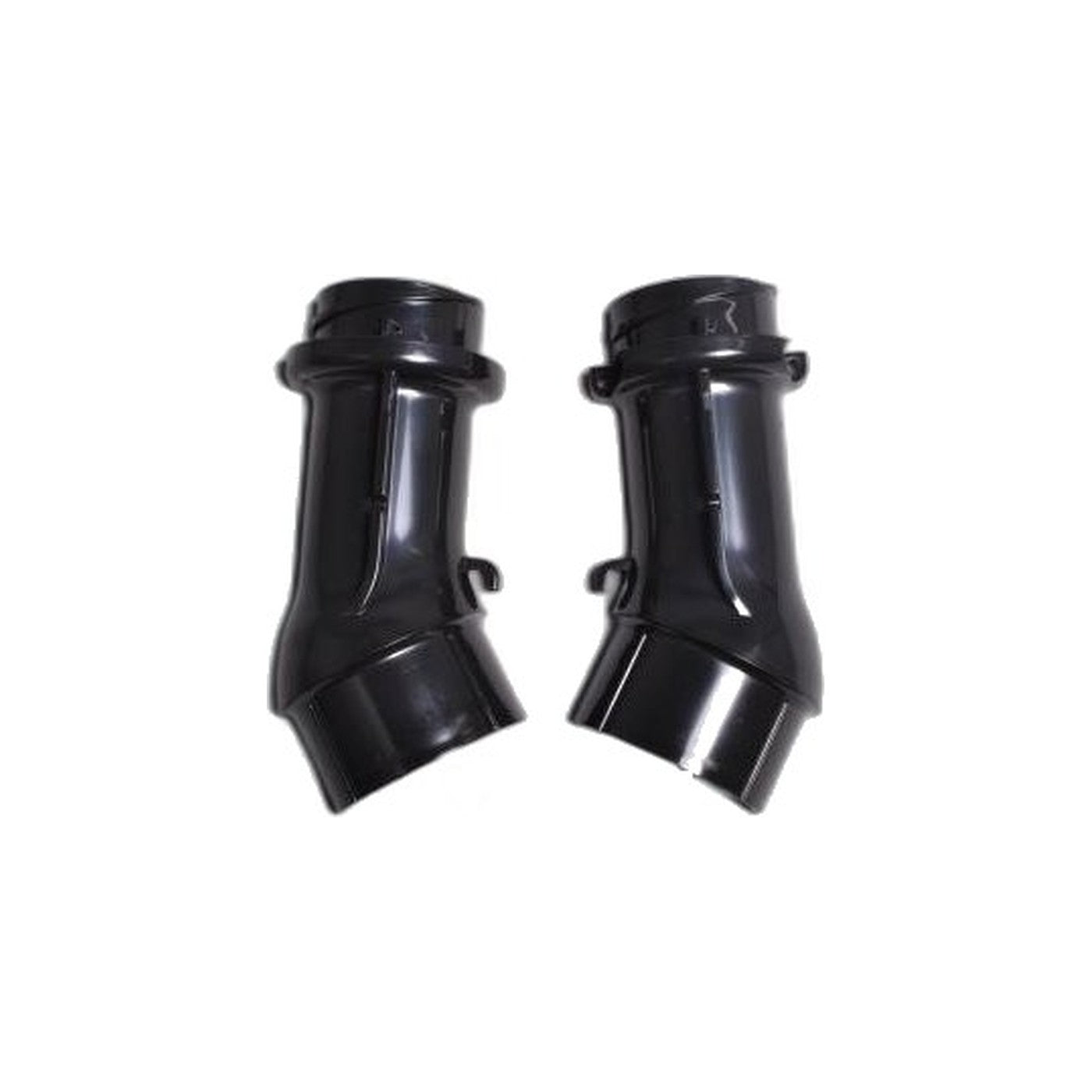

Oreck Joint Assembly - U720...
$18.99
Product details
Part 09-79067-01 is the pivot assembly that lets the handle recline against the body on the Oreck U7200 and U7300 upright lines, and the same joint is fitted across the UK30300 series. Every angle change dialed in at the grip travels through this single pivot before it reaches the wheels underneath, so it absorbs a load concentrated in one spot that most other parts of the machine never see.
Wear here tends to follow a sequence. Play shows up first as a faint looseness felt more than heard. Next comes a click at the pivot each time the handle sweeps through its working angle, often loudest right in the middle of a normal recline motion. Left unaddressed, the housing itself begins to crack around the pin, and at that point the handle can come loose from the body entirely, typically mid-stroke rather than while the machine sits idle.
Before ordering, work the handle through its full arc on the machine already in hand and note exactly where any looseness or clicking shows up. A pivot problem announces itself right at that joint; wobble felt further up the tube usually points at a different part entirely, so pinning the source down first avoids buying the wrong fix and starting the job twice. Full model coverage for this pivot spans the U7200 and U7300 families along with the UK30300 series, so double-check the plate on the machine against the list below before placing an order.
- Part: 09-79067-01
- Function: handle-to-body pivot controlling recline and steering
- Signs of wear: play at the handle, a click at the pivot, or a cracked housing near the pin
- Fits: U7200ECB, U7210ECB, U7210ECR, U7211ECB, U7211ECG, U7211ECP, U7211ECR, U7212ECB, U7220ECS, U7230ECS, U7240ECS, U7241ECS, U7250ECS, U7300ECB, U7330ECBS, UK30300, UK30300COM, UK30300PC
