ProTeam Cord Assembly - Progen 15 Commercial 50FT

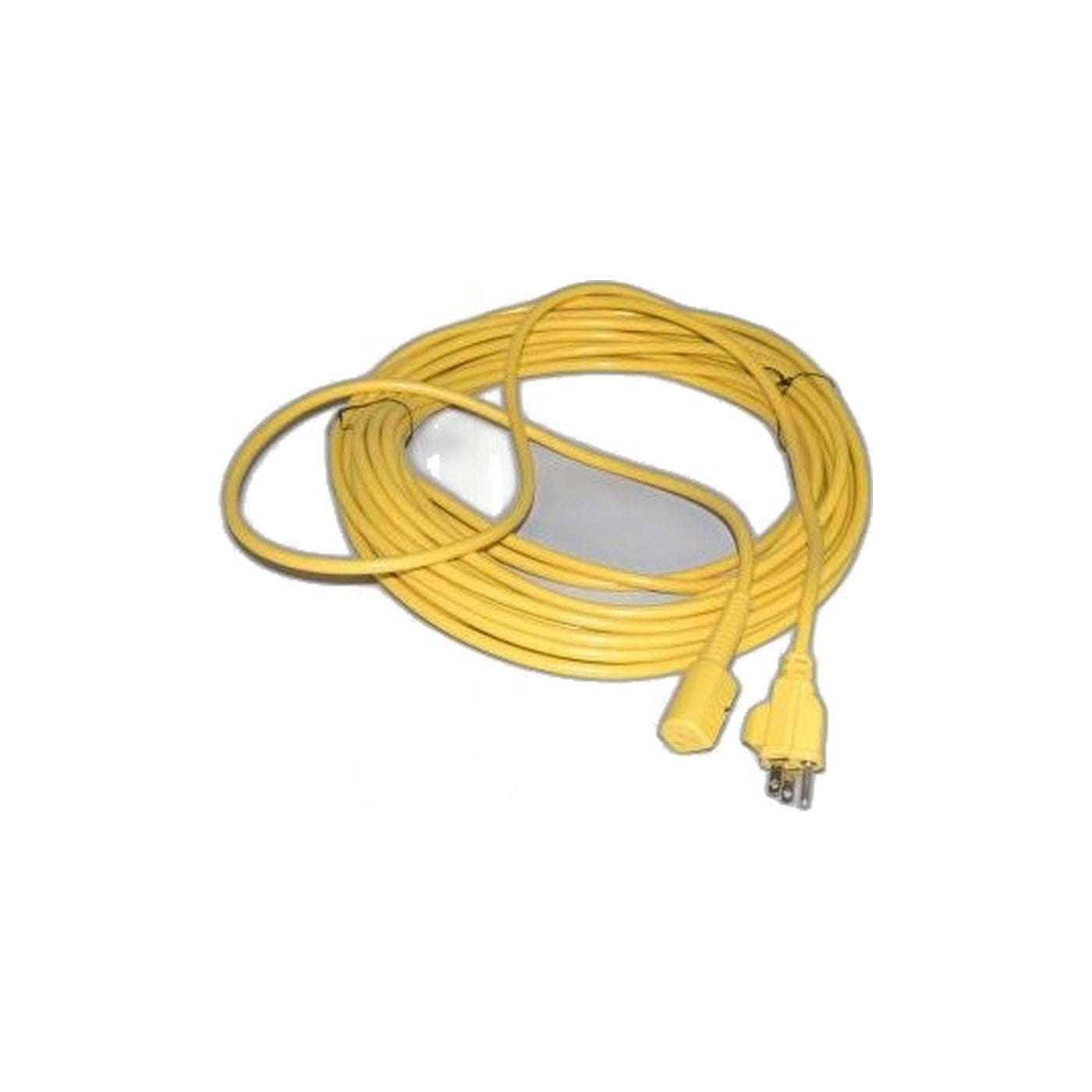

A ProTeam ProGen 15 upright that needs its supply cord replaced takes part 834740-1, a complete fifty-foot run supplied whole, wall plug and machine-end termination already attached, rather than as bare cable to be wired up by hand.

Swapping this cord counts as routine upkeep on a machine that earns its keep daily. The warning signs stay fairly consistent from unit to unit: an outer jacket scuffed down to bare fabric underneath, a connector housing that has become loose or shows discoloration around the pins, or a unit that loses power then comes back on its own once the operator has kicked the cord clear of a foot or a cart wheel. With fifty feet of cable to inspect, damage tends to cluster near the two ends, at the plug and at the machine, simply because that is where the cord gets handled most during a normal work day.

Always disconnect at the wall before starting the swap, and never free the old cord by pulling on the wire itself, since that risks damaging the very terminal being disconnected from the machine housing.

Once the replacement is fitted, run its length by hand before returning the ProGen 15 to service, checking that the outer covering stays sound from the plug all the way through to the machine connection rather than only at the two ends. Building a quick check like this into routine maintenance costs far less time than a cord failing mid-route on a busy commercial job.

• Part: 834740-1, complete 50-foot cord assembly
• Fits: ProTeam ProGen 15
• Function: full supply run from wall plug to machine termination
• Length: 50 feet
• Watch for: a scuffed exterior, a loose connector, cutouts when the cord moves
