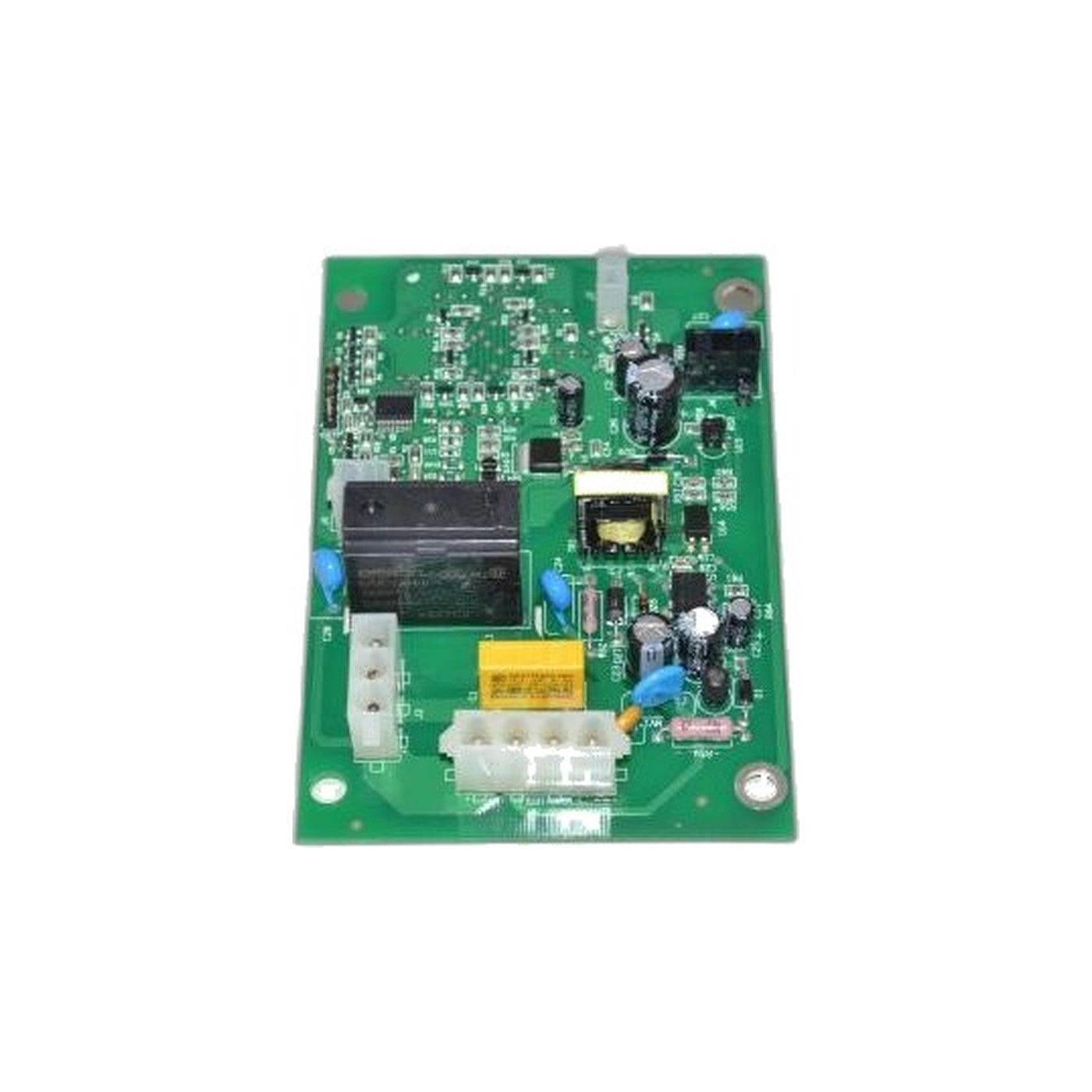

ProTeam Main Control Board - Progen 15 / Progen 12

Every switch input on ProGen 12 and ProGen 15 machines from ProTeam passes through the main control board on its way to the motor, which makes part 834797 the electronic core of both models rather than an accessory to them.

Board failures are frustrating precisely because the motor is usually innocent. The vacuum goes completely dead, or it runs for a while and cuts out, or it stops answering its own switch, and every mechanical check you can run comes back clean: the cord tests fine, the outlet is live, the motor spins freely when powered directly. Once the obvious causes are ruled out and the fault keeps coming back, the control board is almost always the actual culprit.

Intermittent faults are the harder version of this problem. A board that fails outright is at least easy to confirm; one that drops out only when the machine is warm, or only after it has run for twenty minutes, points to a board that is degrading rather than dead, and swapping it is often the only way to rule the electronics out for good rather than keep chasing symptoms that come and go.

Disconnect the machine from power completely before opening the panel, and handle the new board by its edges rather than the components, since boards are sensitive to static discharge from bare hands. If your shop is not set up for electronic diagnostic work, this is a fair job to hand to a qualified technician rather than guess through.

• Part: 834797, main control board
• Fits: ProTeam ProGen 12, ProGen 15
• Function: routes switch and control input to the motor
• Typical symptom: machine dead, cutting out during use, or unresponsive to its own switch despite good power
