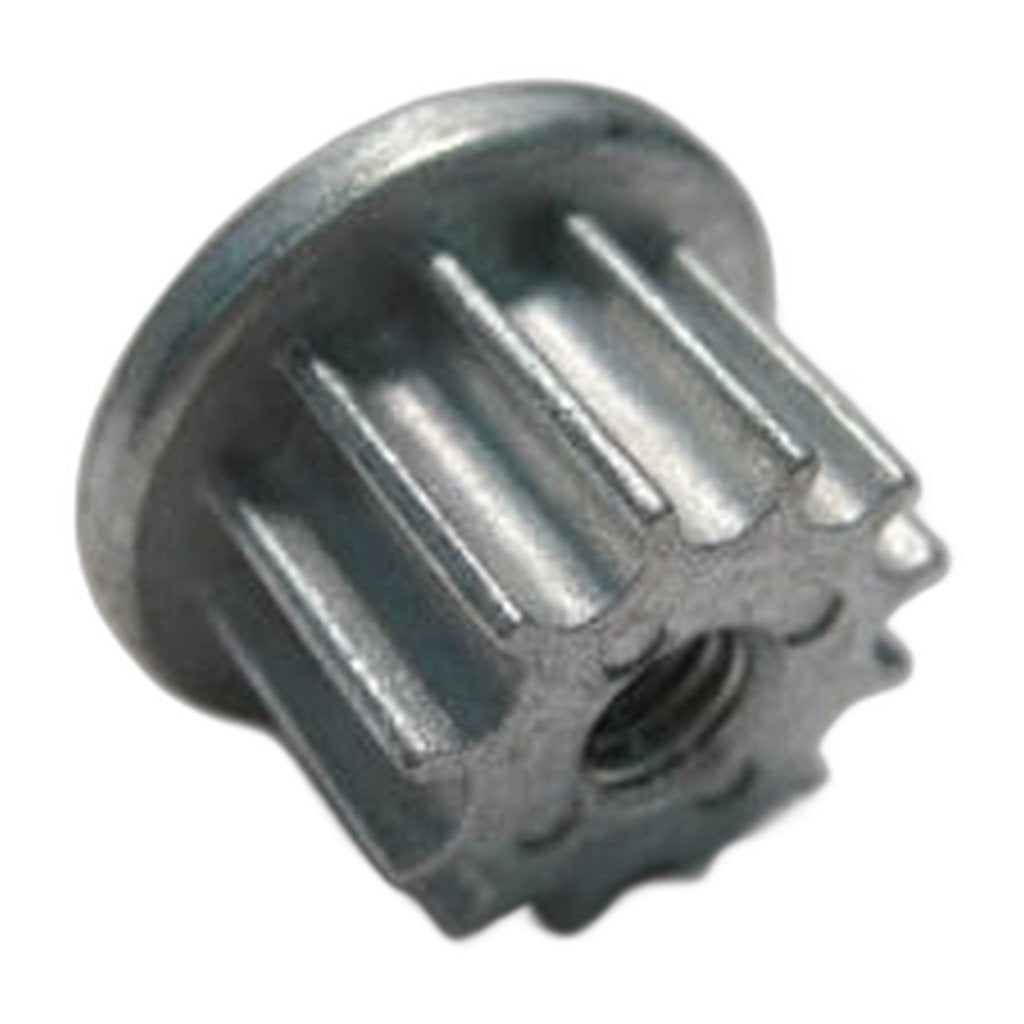

SEBO Pulley 12 for the Duo,...
$8.00
Product details
A left-hand thread is the detail that sets this one apart. SEBO's Duo diagram labels position 59 as the left-hand-threaded pulley, and part 3015 is that item, so it releases in the opposite direction to a conventional fastener. Forcing it the usual way is how these get destroyed on the bench, and it is the single most common reason a straightforward job turns into an order for two parts instead of one.
The handed components on this machine keep each other company on the drawing. Position 55 is the left-hand-thread gear wheel, part 3022; position 57 is the left-hand-thread shaft, part 3037; the ball bearing 626-2Z sits between them at 58 as part 0222; and the spacer at 56 is part 3036. Working through that group in order, and noting which way each item came off, is the difference between an hour and an afternoon.
SEBO also lists a second Pulley 12 for the Duo under its own number, 3056, shown at position 72. The two are not interchangeable, on account of the thread, so match the position on the drawing against the pulley you removed before you order. Once the replacement is in hand, work it on by hand until you are certain the thread has taken cleanly, then bring it up with a tool rather than starting with one.
- Part number: 3015
- SEBO designation: Pulley 12
- Thread: left hand
- Diagram position: 59 on the SEBO Duo parts diagram
- Fits: the SEBO Duo brush machine
- Sold: individually
- Related numbers: 3056 Pulley 12 at 72, 3022 gear wheel LH thread at 55, 3037 shaft LH thread at 57, 0222 ball bearing at 58
Genuine SEBO spare supplied by an authorized dealer. Ships in 2-5 business days.
