• Riccar and Simplicity Base Plate Stud for 4000 and 6000 Series
1 1

Simplicity

Simplicity and Riccar Base Plate Stud, 4000 and 6000 Series

Simplicity and Riccar Base Plate Stud, 4000 and 6000 Series

$6.99 USD
$6.99 USD
Sale Sold out
Shipping calculated at checkout.

B015-0305B
Authorized Simplicity Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Simplicity and Riccar Base ...

$6.99

Product details

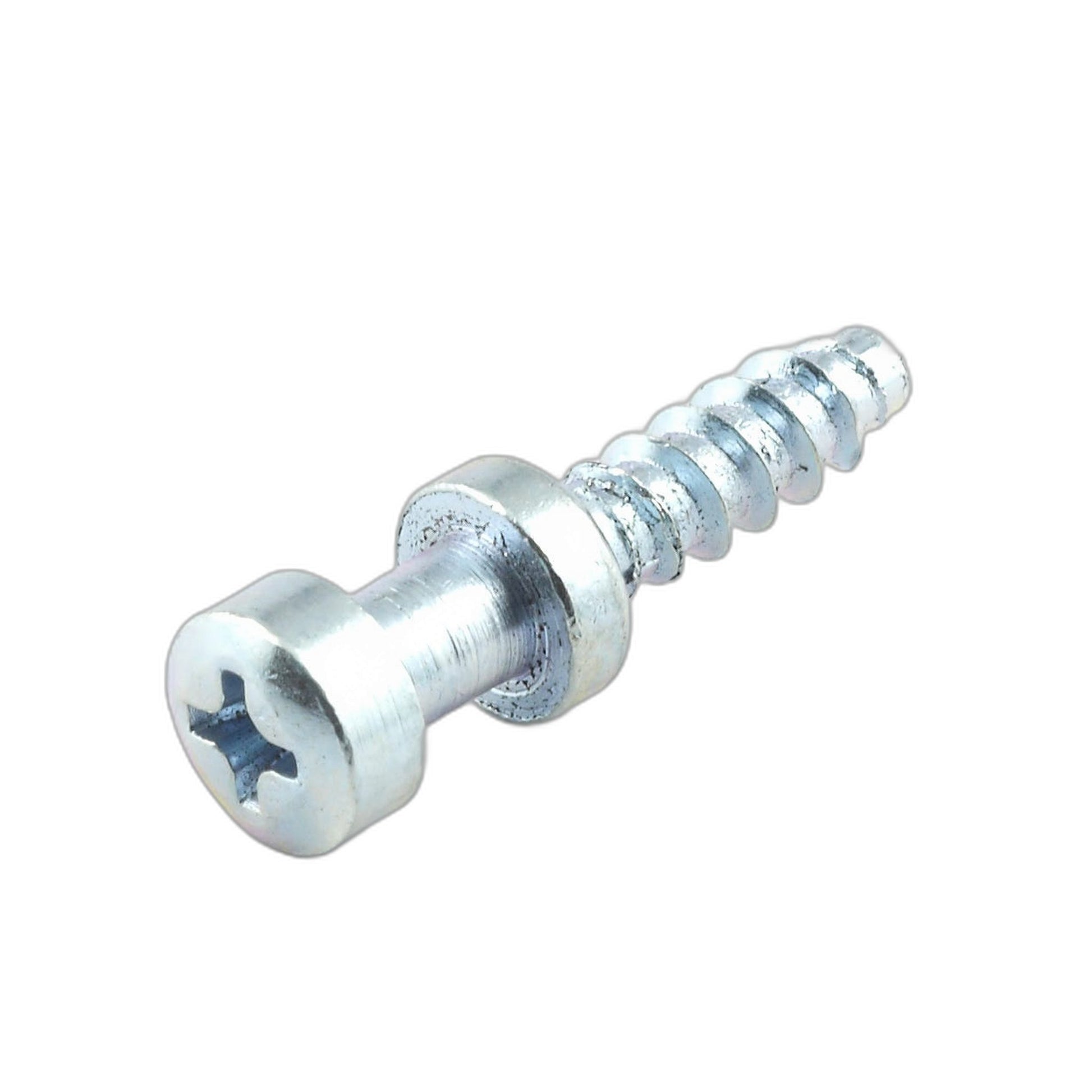

Base plate stud for Simplicity and Riccar 4000 and 6000 series uprights, part B015-0305B. It anchors the base plate to the nozzle housing, giving the mounting screw something solid to thread into rather than biting into stripped or worn-out plastic.

The threads inside a stud wear out well ahead of the screw that mates with it, and once those threads are stripped, the base plate can no longer sit down flat and even across the nozzle. That shows up as a base plate that rocks, rattles when the nozzle moves over carpet, or will not seal flush against the floor on one side, which lets suction leak out at the gap instead of pulling through the brushroll.

  • Part: base plate stud
  • Vendor part number: B015-0305B
  • Series: 4000 and 6000
  • Sold: individually

If the base plate has been off for belt work more than once, check every stud on it rather than just the one that failed. A plate with one good stud and one stripped one will still rock under load, and the loose side will strip the new stud in turn if the underlying hole is also worn.
