• Riccar / Simplicity Compact Power Nozzle PC Board Assembly
1 1

Simplicity

Simplicity / Riccar Compact Power Nozzle PC Board Assembly

Simplicity / Riccar Compact Power Nozzle PC Board Assembly

$24.99 USD
$24.99 USD
Sale Sold out
Shipping calculated at checkout.

D354-1500
Authorized Simplicity Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Simplicity / Riccar Compact...

$24.99

Product details

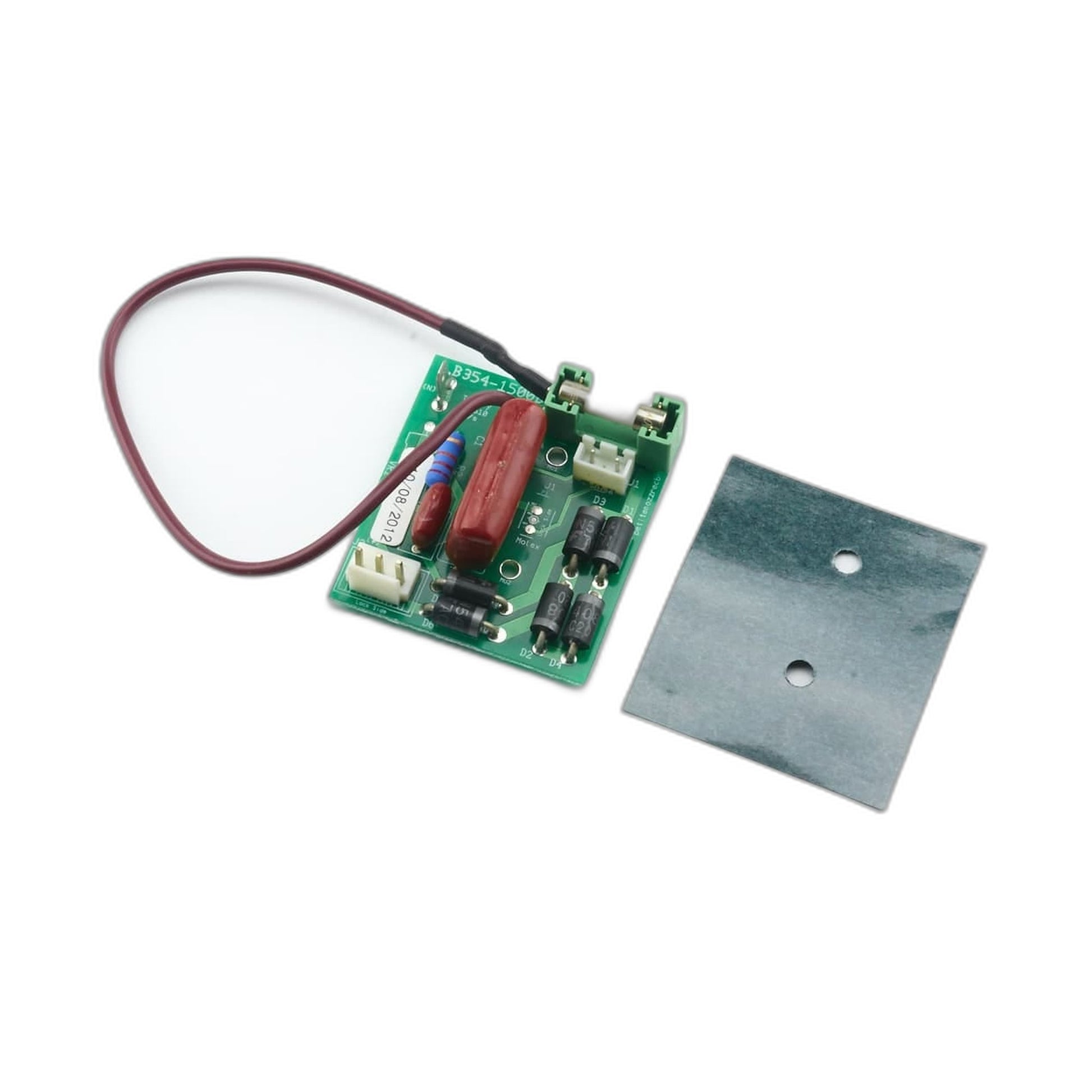

D354-1500 is the control board for the Compact power nozzle on Simplicity and Riccar central vacuum systems. This board is what the nozzle uses to control brush operation, and it is a common point to check when the nozzle head will not run even though the central vacuum unit itself is pulling suction normally.

A nozzle that hums or clicks but will not spin the brush, or one that runs erratically, points toward the board rather than the motor in many cases, since the motor windings themselves rarely fail without some other symptom first.

  • Part number: D354-1500
  • Fits: Compact power nozzle
  • Type: replacement circuit board

Test the nozzle's power cord and connector for a loose pin before replacing the board, since a poor connection can mimic a bad board.

Because the board sits inside the nozzle housing, expect to open the nozzle body to reach it, and note the wiring positions before disconnecting anything so reassembly goes back together the same way. Ships to you in 2-5 business days.
