Riccar Tilt Lock Pivot for ...
$6.99
Product details

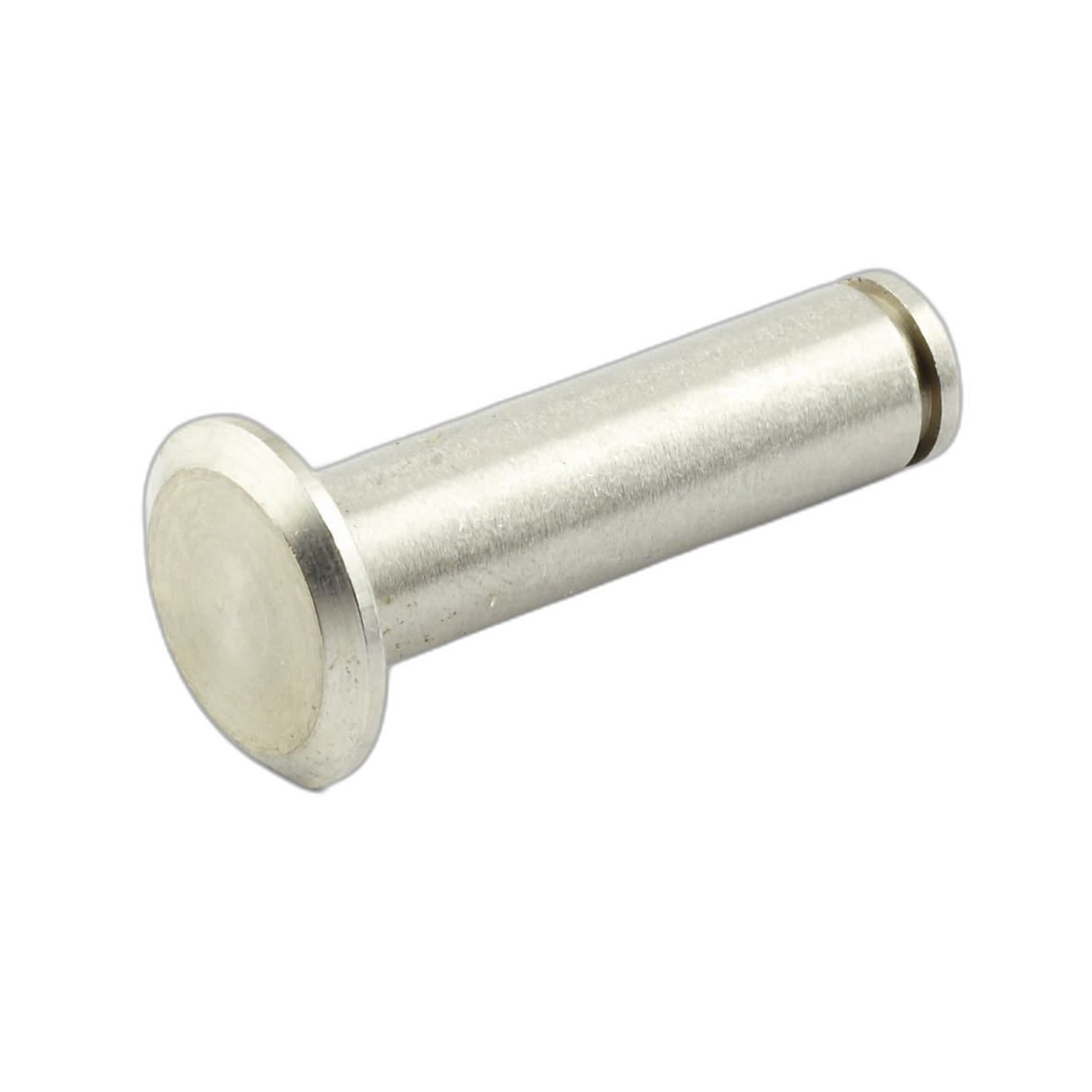

This tilt lock pivot links the parts of the tilt-lock mechanism that let an upright vacuum drop out of its stored position and recline into cleaning angle, sold as part B370-3600. Once it wears through or snaps, the handle either will not release from upright, or drops with no detent to hold the cleaning angle.
The pivot fits the PV chassis, the platform behind the Riccar Radiance line, along with earlier MV-based uprights. Each time someone stands the machine upright or reclines it for use, this pivot takes on that load, which is why it wears out faster than most other plastic parts on these bodies.
- Part: single pivot, sold each
- Fits: PV chassis and earlier MV-platform uprights
- Replaces: the pivot only, not the full tilt-lock assembly
When the foot pedal operates normally yet the handle refuses to stay upright, look at this pivot before digging further into the mechanism, since it is a far smaller repair than rebuilding the whole tilt-lock assembly. Ships in 2-5 business days.
