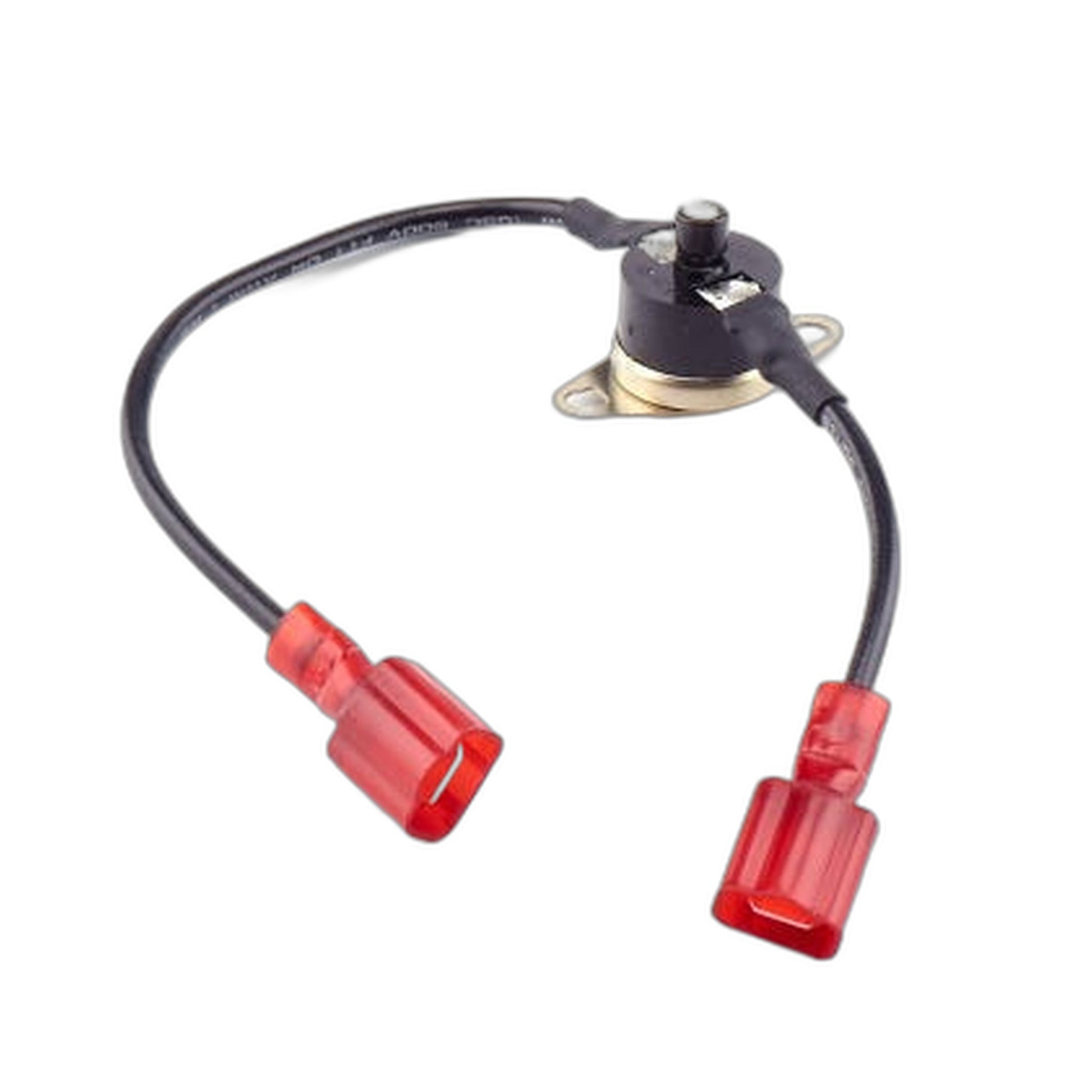

• Simplicity / Riccar Thermal Reset Switch, 160°F (72°C)
1 1

Simplicity

Simplicity / Riccar Thermal Reset Switch, 160°F (72°C)

Simplicity / Riccar Thermal Reset Switch, 160°F (72°C)

$10.99 USD
$10.99 USD
Sale Sold out
Shipping calculated at checkout.

A328-1100B
Authorized Simplicity Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Simplicity / Riccar Thermal...

$10.99

Product details

Genuine thermal reset switch rated at 160°F (72°C), the safety cutout that opens the motor circuit when internal temperature climbs past its trip point. Overheating on an upright almost always traces back to restricted airflow: a packed bag, a clogged hose, a loaded filter or a brushroll wrapped in hair. The switch shuts the motor down before that heat cooks the windings, and resets once the machine has cooled.

  • Trip temperature: 160°F / 72°C
  • Type: resettable thermal cutout, PV/MV
  • Fits the Simplicity Synchrony SCRD upright
  • Also fits the Riccar Brilliance BLRD

A switch that trips repeatedly on a clean, unclogged machine has usually lost its calibration and should be replaced rather than repeatedly reset. Order A328-1100B for the correct 160-degree part; thermal cutouts are rated to different temperatures and swapping in the wrong one defeats the protection.
