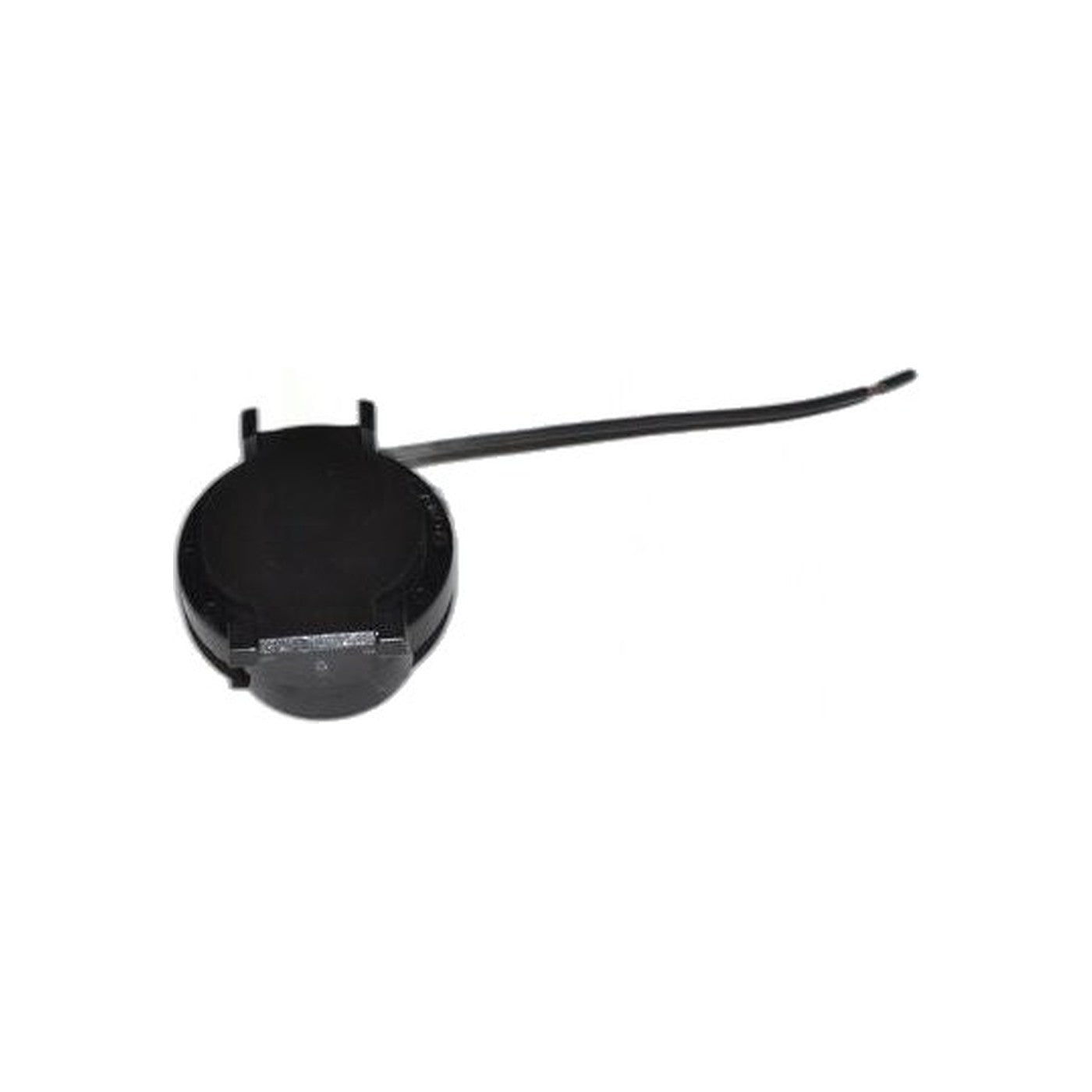

Titan Inlet Valve Assembly ...
$33.99
Product details
Part 8123 is the inlet valve assembly used inside the Titan TCS-5525 and TCS-8575 power unit, the fitting that joins the pipe network to the power unit and seals that connection tight. Its job is mechanical rather than electrical: keeping the intake path airtight so the motor's suction reaches the wall inlets instead of bleeding away at the unit itself.
Keeping that seal tight when the unit is idle matters more than it looks. Central vacuum motors are sized around the assumption that they are only ever pulling air through one open inlet at a time, and a valve that does not seal fully lets the unit draw air from a second, unintended path, which softens suction at whichever inlet is actually in use. Wear here tends to show up as a valve that closes but not all the way, rather than one that fails outright, so a gradual, hard-to-pin-down loss of suction across the house is a more common symptom than a sudden failure.
Because the valve sits inside the power unit rather than at the wall, it is easy to overlook when troubleshooting a suction complaint. Most people check the hose, the bag, and the wall inlet long before they think to open the power unit itself. If those more visible checks come back clean and suction is still soft everywhere in the house at once, rather than at one specific inlet, this assembly is the next place to look.
- Part: Titan 8123, inlet valve assembly
- Fits: Titan TCS-5525, TCS-8575
- Function: seals the connection between the pipe network and the power unit intake
- Watch for: a valve that closes but no longer forms a full seal, causing gradual suction loss
If suction has dropped house-wide with no single inlet or blockage to blame, this assembly is worth checking before assuming the motor itself is losing power.
