Titan Lower Body Housing - ...
$22.99
Product details

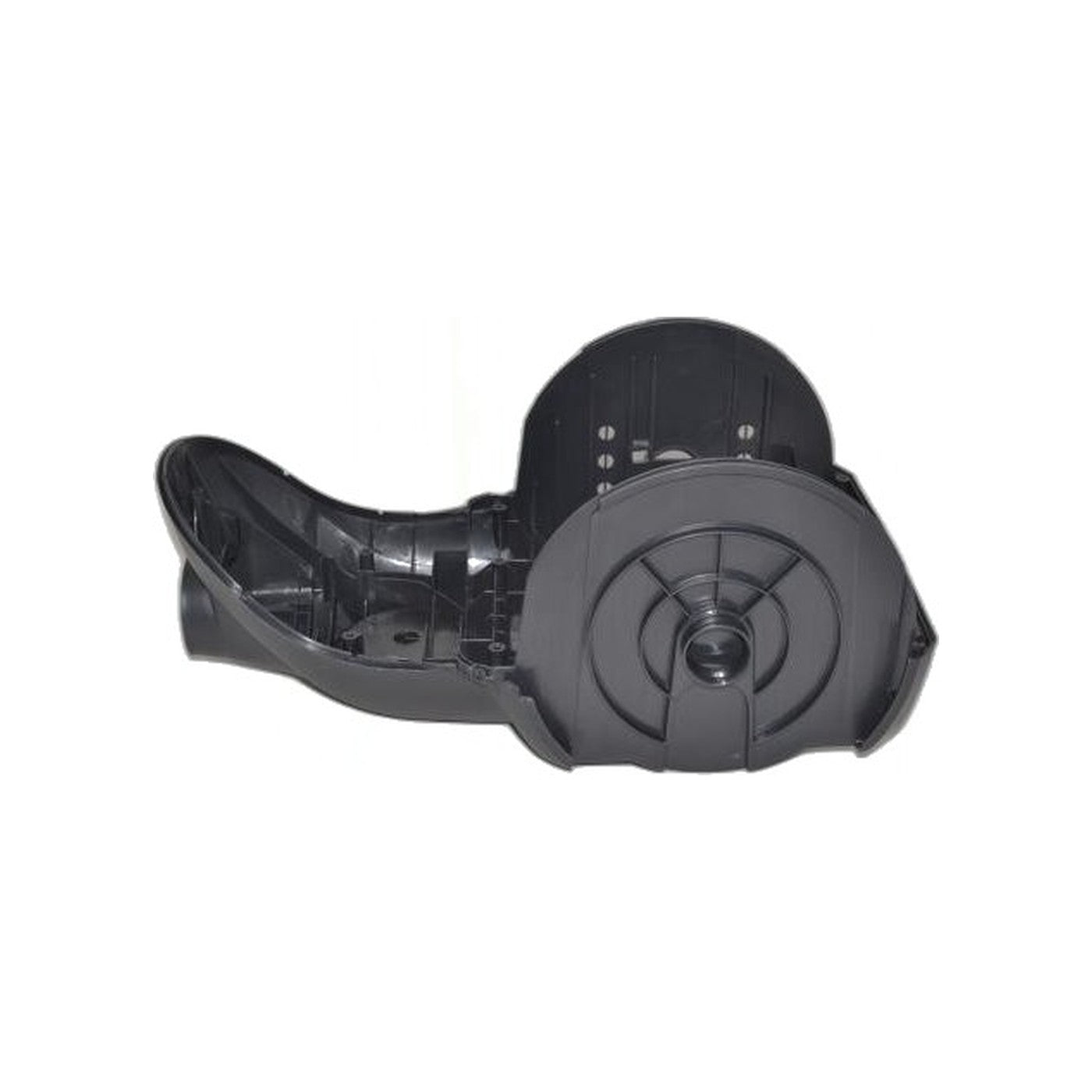

The lower body forms the bottom half of a Titan T8000 bagless canister, carrying the wheels, the mount the dust container clicks into, and the internal ducting that connects the inlet through to the motor chamber. The identical molding turns up under several Kenmore badges as well, on model numbers 116.10065410, 116.22614310, 125.22614610, 161.0065410, and 162.2614310.
This is not a cosmetic panel. The airway is routed through the lower body itself, so any crack in it opens an air path the motor was never designed to pull from, and that stolen airflow shows up as weakened pickup at the nozzle no matter how clean the filters and bag are. Damage tends to originate at a wheel mount or wherever the body has taken a hard knock against a doorframe or stair edge, then spreads along the seam from there.
This is part KC03ADXEZV07. Swapping it means pulling nearly everything else off the machine first, since almost every component bolts back to this shell, so treat the job as a full rebuild rather than a quick panel swap. Confirm your model number on the machine's rating plate before ordering, since the Kenmore-badged versions share the identical housing.
Before ordering, set the machine on a flat surface and check whether it rocks or sits unevenly, which often points to a distorted mount rather than a clean crack you can see. Also inspect the wheel posts specifically, since they carry point loads every time the canister is pulled across a threshold and are a natural first place to check for damage.
- Part: KC03ADXEZV07
- Fits: Titan T8000 bagless canister; Kenmore 116.10065410, 116.22614310, 125.22614610, 161.0065410, 162.2614310
- Function: lower shell carrying the wheels, dust container mount, and internal ductwork
- Replace when: a crack anywhere in the housing costs suction that filters and bags can't restore
