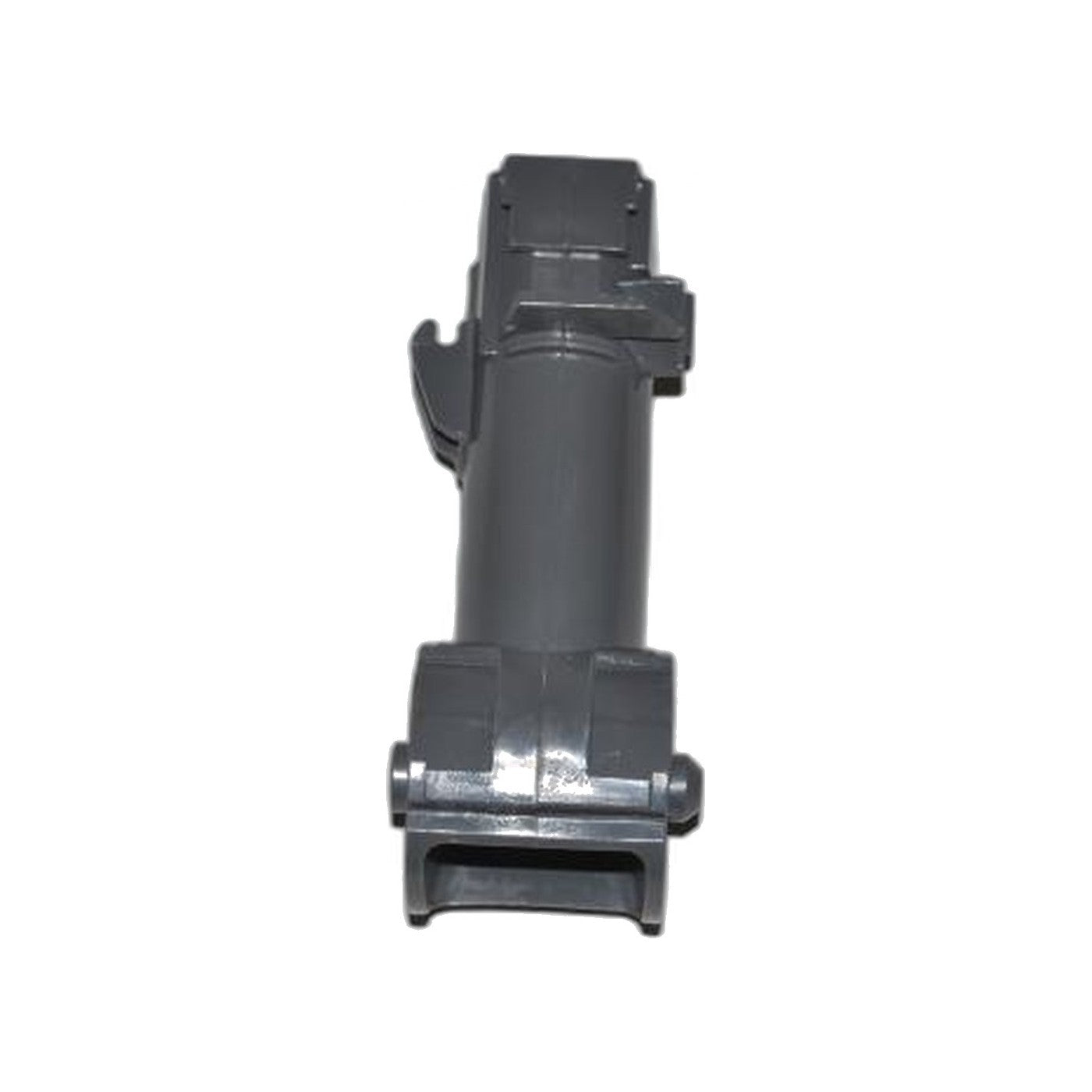

Titan Swivel Neck Joint - T...
$13.99
Product details
On a Titan TCS973 canister, the swivel neck joint is the pivoting connection at the power nozzle that allows free rotation, so the nozzle head can angle and spin as you push it around furniture legs and into corners instead of dragging against your wrist.
Once this joint stiffens or wears loose, steering gets noticeably harder, and the extra torque you are putting into every turn gets transmitted into the hose cuff and the nozzle neck instead of absorbed by a joint designed for it. Left long enough, that strain shows up as cracking somewhere else on the nozzle. A joint that has also lost its grip entirely, rather than just stiffened, will let the nozzle flop or spin loosely instead of holding an angle, which is the more advanced stage of the same wear.
This is the small-neck version, part KS4153196, built for the Titan TCS973. Match your existing joint's neck size before ordering, since neck sizes are not interchangeable across these nozzles. Measure the diameter of the tube stub on your existing joint if you are unsure which version is currently installed, rather than guessing from the model number alone, since ordering the wrong neck size means the new joint will not seat against the nozzle housing.
A stiff swivel is often mistaken for a bad hose or a tired nozzle motor, since either one can also make the nozzle feel harder to push. Isolate the joint by holding the nozzle head steady and rotating just the neck by hand; if it resists or catches with the nozzle unpowered, the joint itself is the fault rather than anything downstream of it.
- Part: KS4153196, small-neck version
- Fits: Titan TCS973 (T7) canister
- Function: pivoting joint between the power nozzle and hose
- Replace when: steering stiffens or the joint no longer turns freely
