SEBO Access Door with Axle and Spring for G Series and 300/350 — Orange

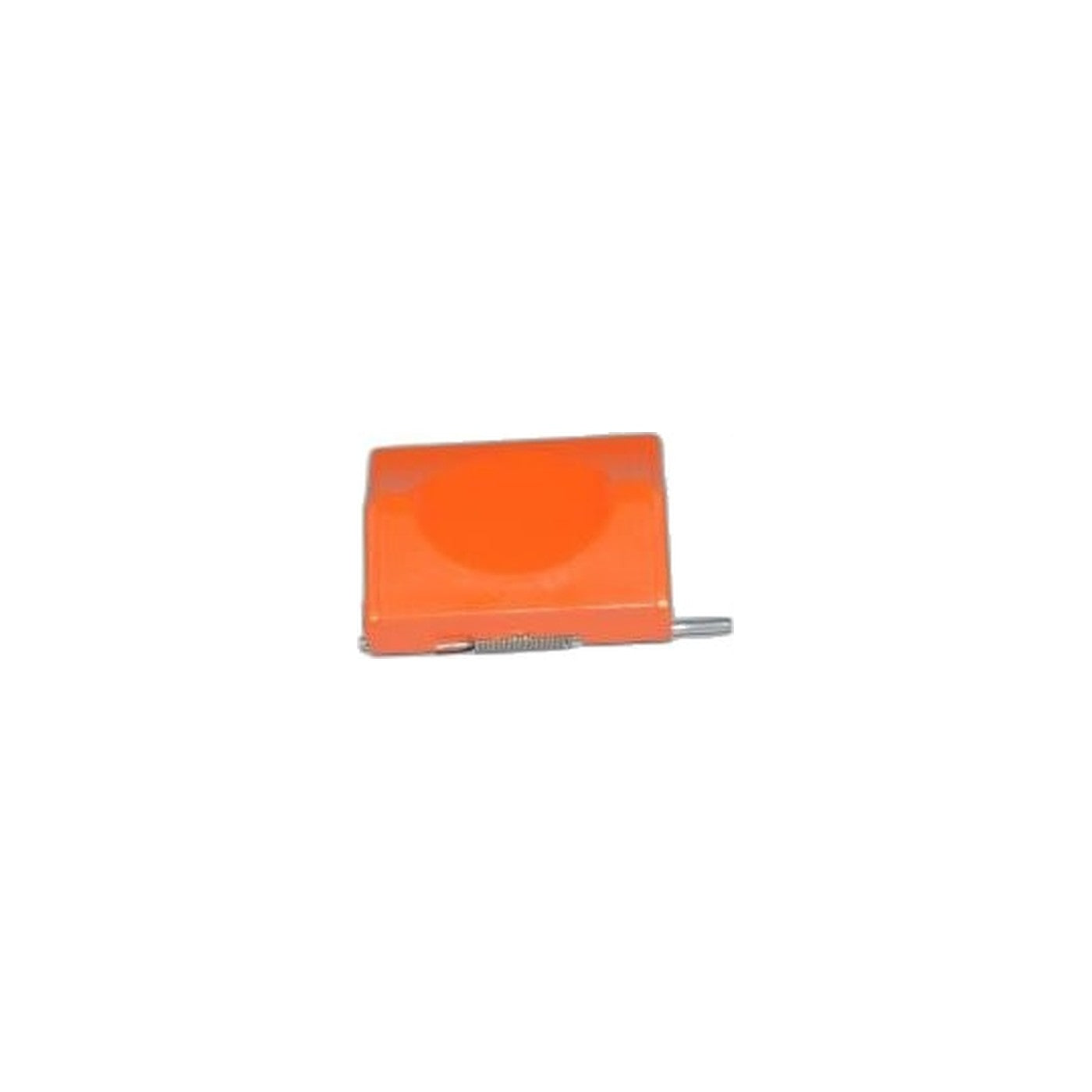

Orange marks the service point on these uprights, and this is the door it marks. Part 2868OR is the access door for the SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5 and for the 300 MECHANICAL and 350 MECHANICAL, supplied with its axle and its spring already fitted rather than as a bare flap to transfer old hardware into.

The door is hinged and sprung because it is meant to be opened often — it is the panel that comes up for a belt check, a brush inspection or to clear a jam. Its pivot therefore absorbs more cycles than almost anything else on the machine. When the spring goes soft or the axle wears its bore oval, the door stops closing under its own tension: it hangs down, stands proud of the housing, catches on carpet as the machine is pulled back, and eventually snaps at the hinge. Buying it as an assembly puts the hinge, the pivot and the closing tension back in one move, with nothing to salvage from the broken part and nothing to align by eye.

The orange finish is the factory color for the service furniture on these models, so the repair looks correct rather than patched. On the ESSENTIAL G machines SEBO also catalogues the access door axle on its own as 5303 and the access door spring as 5304, and the light gray axle cover that sits nearby is 2860HG. People find this listing looking for a SEBO access door with its axle and spring fitted, an ESSENTIAL G service door, or a 350 MECHANICAL access flap in orange.

• SEBO part 2868OR — access door complete with axle and spring
• Fits: SEBO ESSENTIAL G1, G2, G4 and G5, plus the 300 MECHANICAL and 350 MECHANICAL
• Color: orange
• Supplied assembled — no parts to move across from the old door
• Typical symptom: a door that will not close under spring tension, or a worn or broken hinge pivot
• Related part numbers: 5303 access door axle and 5304 access door spring for the ESSENTIAL G machines, 2860HG axle cover
• Genuine SEBO; ships in 2–5 business days
