Bissell
Bissell Case Drum & Hose - 3522-1 Upright
Bissell Case Drum & Hose - 3522-1 Upright
SKU:2031110
Out of stock
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Bissell Case Drum & Hose - ...
$17.99
Product details

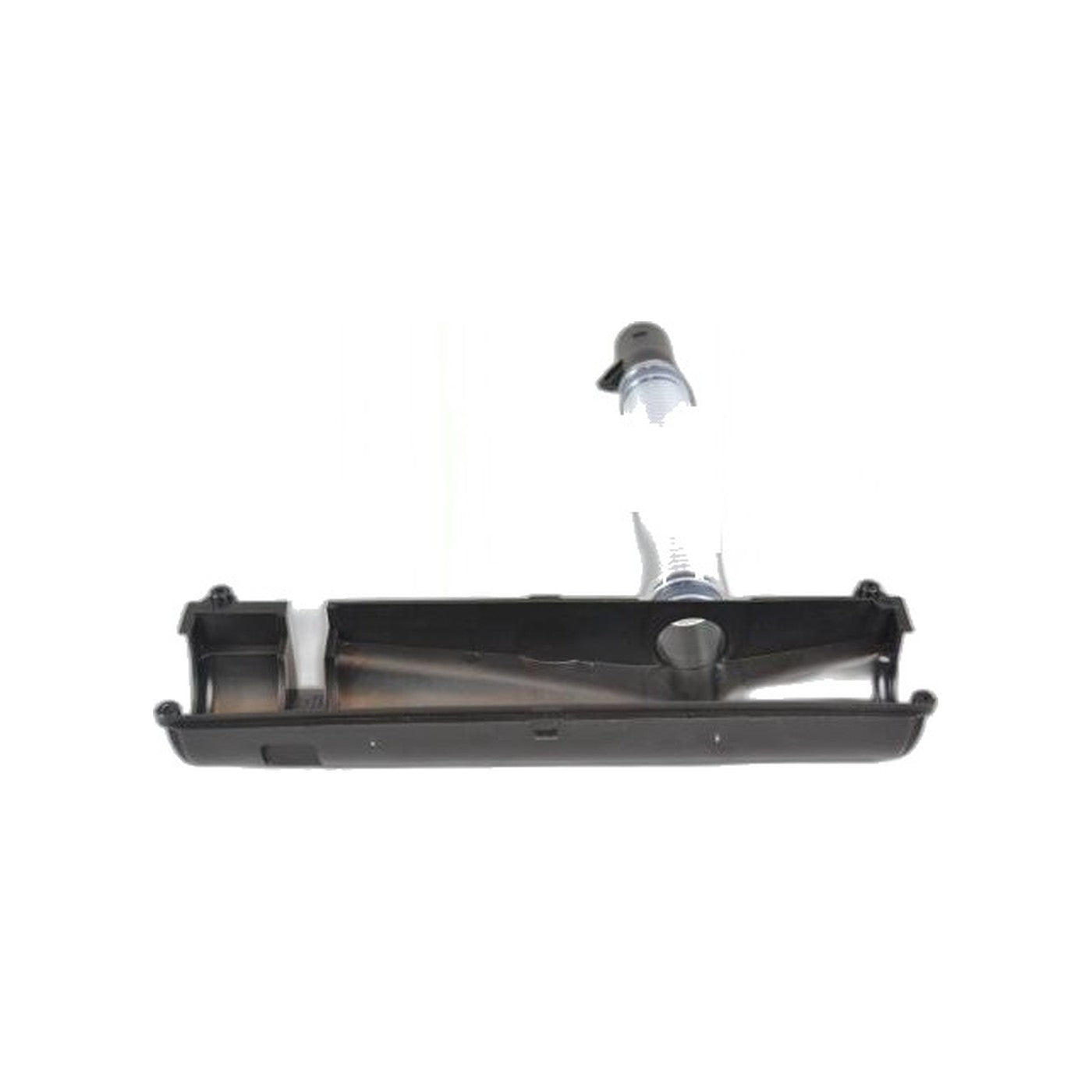

Bissell pairs the case drum and the hose as one part, 2031110, sold together for the 3522-1 upright because they form a single sealed air path: the drum is the molded shell mounted to the machine body, while the hose is the flexible run connecting it to the floor nozzle.
A leak anywhere along that path shows up as lost suction at the carpet rather than anywhere else, since that is the last stretch of ducting before the air reaches the bag. Hoses tend to split at the corrugated sections or right at the cuffs where they clamp on, and the drum itself cracks at the point where the hose pulls against it, often from being lifted or dragged by the hose instead of the handle. The giveaway is a machine that still sounds like it is running at full power but has stopped picking anything up off the floor.
Before ordering, run a hand down the length of the hose feeling for a soft spot or a split, and check the drum specifically where the hose attaches for a hairline crack. Either fault by itself is enough to account for a full loss of pickup without the rest of the assembly being at fault.
This assembly is shared across a wide group of Bissell uprights built on the same case, the 1739, 3522, 3530, 3537 and 46E5, the 6579-1 and 6579-3, the 6582, 6583 and 6584, the 71Y7, 71Y71, 71Y72 and 71Y73, the 9V03, and the BGU1451T.
- Part: 2031110, case drum and hose assembly
- Fits: Bissell 3522-1, 1739, 3522, 3530, 3537, 46E5, 6579-1, 6579-3, 6582, 6583, 6584, 71Y7, 71Y71, 71Y72, 71Y73, 9V03, BGU1451T
- Symptom: vacuum sounds normal but pickup at the floor has stopped
- Before ordering: check the hose for a soft or split section and the drum for hairline cracks
