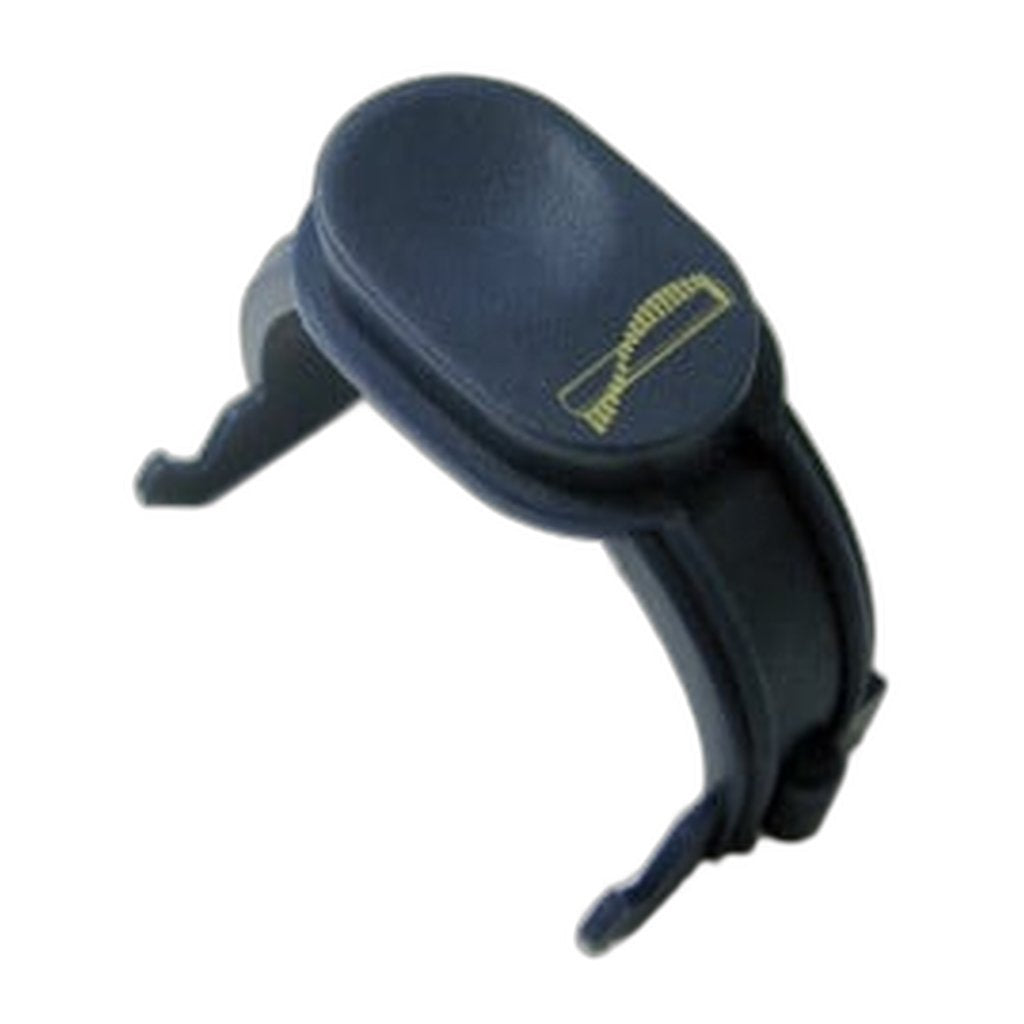

SEBO Brush Roller Release for AUTOMATIC X4 and X5 — Dark Blue

Pulling hair off a roller takes seconds on a SEBO upright because of one lever. The dark blue brush roller release, part 5713DB, is drawn at item 114 on the AUTOMATIC X4/X5 exploded view, and it is listed for the AUTOMATIC X4 and AUTOMATIC X5. Flip the lever and the roller comes clear of the head in one movement; close it and the roller is clamped back into its bearings with no tools involved.

It is worth understanding what the release is holding against. Drive reaches the roller in two stages on these machines: the motor pulley at item 143 turns a belt to the sensor pulley at item 151, and a second belt takes drive from there down to the roller, which runs in the right-hand bearing block at item 122. The release is what keeps that roller square in line with both. A worn or cracked release lets it float sideways under load, and the belt then tracks toward one flange instead of sitting centred, so the complaint arrives as a squeal or a belt that keeps coming off when the real fault is the lever. The opposite failure is a release that has stiffened up and will not let the roller out at all, which turns a two-minute cleanout into a strip-down.

• Fits: SEBO AUTOMATIC X4 and AUTOMATIC X5
• Colour: dark blue
• Diagram position: item 114 on the AUTOMATIC X4/X5 parts drawing
• Function: tool-free lock and release for the brush roller
• Works with: spring at item 115 and bearing block at item 122
• Supplied: release only
• Part number: 5713DB
• Bearing block in dark blue: 5031DB1, right-hand side
• Roller it holds: 5010AM on the AUTOMATIC X4, brush roller set 5290AM on the AUTOMATIC X5
• Other dark blue mouldings: 5712DB exhaust filter catch, 5711DB exhaust filter cover, 5707DB latch release cover, 5702DB bag housing bumper base, 5749SE front cover

When a release is replaced it is worth turning the roller by hand and watching the belt sit before the head is closed up, since a lever that has been slack for a while has usually left wear marks worth noting. Shoppers reach this listing looking for a SEBO brush roller release, a dark blue X5 roller lever or simply the number 5713DB. Ships in 2–5 business days.
