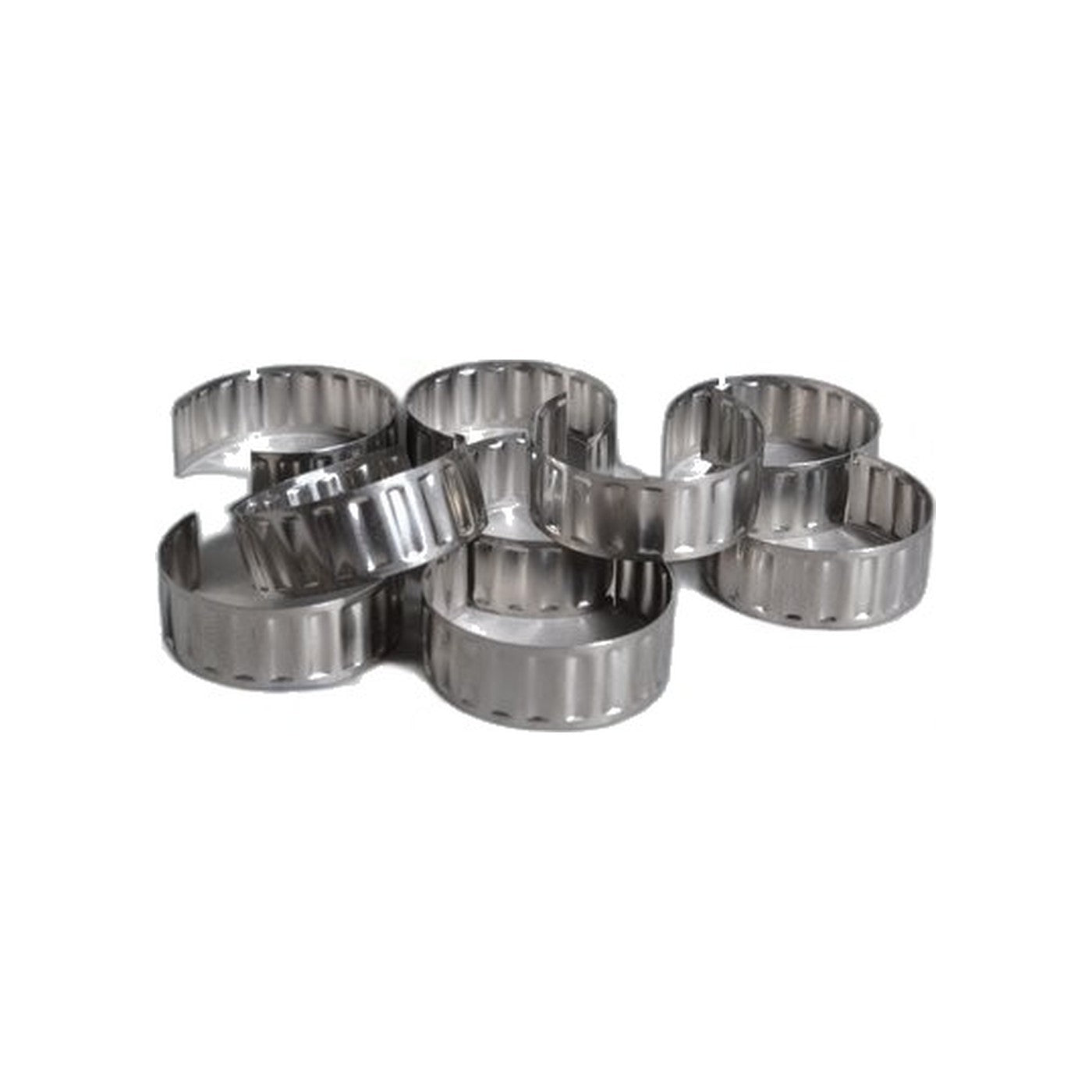

Eureka Brush Bearing Tolerance Ring - 10 Pack

Part 53115 is a tolerance ring sized for the brush roll bearing on Eureka and Sanitaire uprights, sold ten to a pack. It is a springy metal sleeve seated in the housing bore around the bearing, closing the gap that would otherwise let the bearing shift instead of holding it with a plain metal-to-metal press fit.

Once the ring loses its spring, the bearing starts to creep within its seat. You'll hear it as rumbling or knocking in the brush roll under load, or feel it as side-to-side play that keeps the roller from tracking straight across carpet. Pairing a fresh ring with the new bearing during the swap is what keeps it from working loose again.

The ten-count pack suits anyone rebuilding several rollers rather than tackling a single repair.

Reusing an old ring from a prior job rarely holds as well as a fresh one, since the metal has already lost some of its spring from being compressed once. Pairing a used ring with a new bearing is a common way for the same rumble to return within a few weeks of the repair, undoing the labor that went into the job.

• Part: 53115, brush bearing tolerance ring, 10 per pack
• Fits: Eureka and Sanitaire SC899G
• Function: spring sleeve that seats a brush roll bearing snugly in its housing bore
• Replace when: the brush roll rumbles, knocks, or develops side-to-side play
