Panasonic Height Adjustment Cam - MC-V300 Upright
Panasonic Height Adjustment Cam - MC-V300 Upright
SKU:AC61KJPZV06
Low stock: 4 left
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
We offer 35-day returns on eligible items: request a Return Authorization (RA#) within 35 days of delivery, and your return must reach us within 21 days after the RA# is issued.
Items must be unused, in new condition, and in original packaging with all accessories. For non-defective returns you pay return shipping; original shipping charges are not refunded, and if your order shipped free our actual outbound shipping cost is deducted from the refund. There is no standard restocking fee. See our Return & Refund Policy for details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Panasonic Height Adjustment...
$9.99
Product details

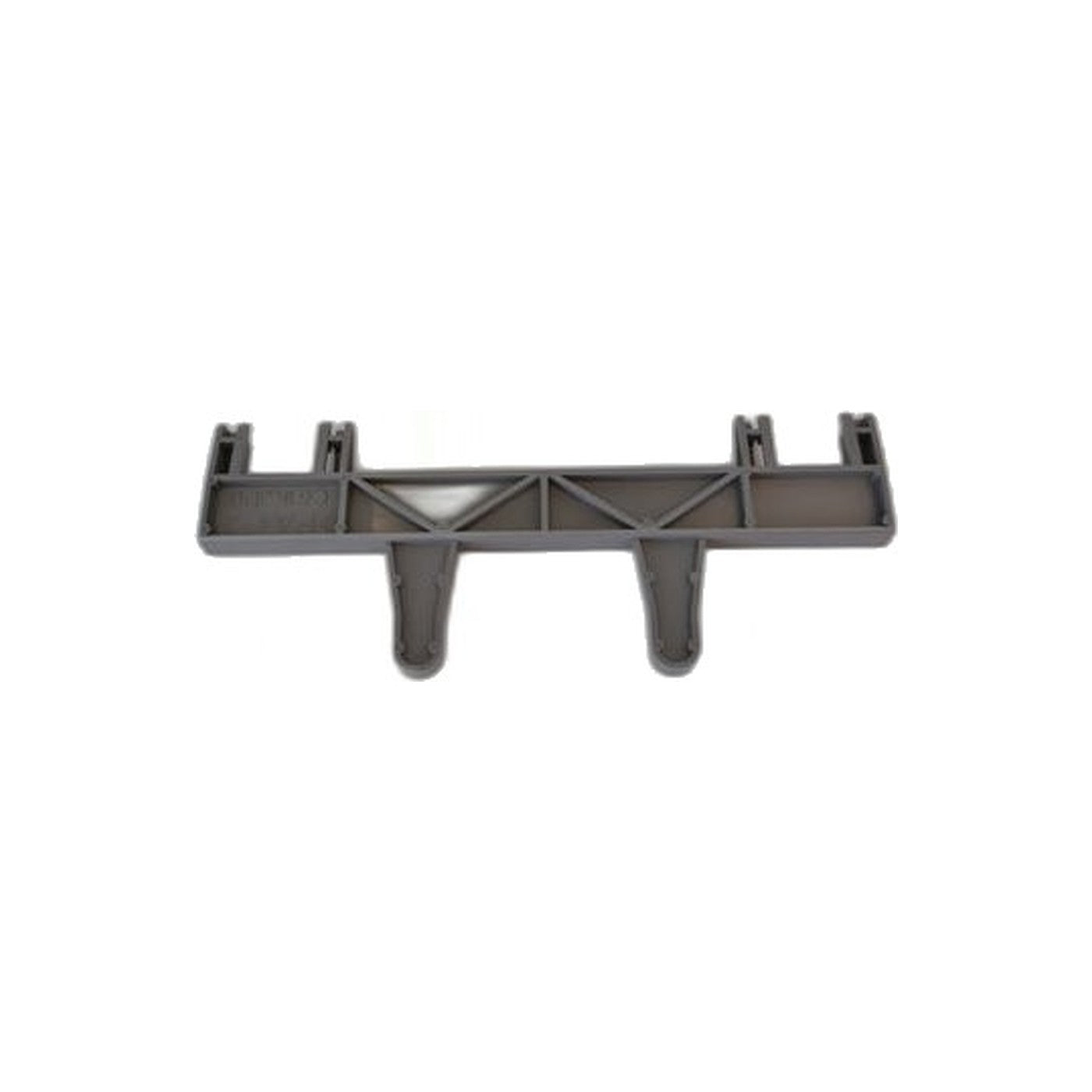

A cam inside the base of Panasonic's MC-V300 family of uprights controls how close the brushroll sits to the carpet, and this replacement, part AC61KJPZV06, is cataloged for the GG523 and MC-V216. Getting that clearance right changes cleaning performance more than most owners assume: dial it too tight and the brush bogs down in thick pile, dial it too loose and the bristles barely brush the surface.
As the cam wears, the chosen height stops holding: the adjustment drifts away from whatever you selected, or stops responding to the control at all. From that point on nothing you set stays put, because the worn cam can no longer hold the mechanism at a fixed position, no matter how carefully the setting is chosen.
This replacement restores the original cam profile, so each height setting holds again once selected. For an older machine whose motor still has plenty of life left, a cheap worn cam is worth ruling out well before assuming the motor itself needs attention.
Reaching the cam typically means pulling the base plate off to expose the adjustment mechanism, so work over a clean, flat surface and set the removed screws somewhere they will not roll away. Once the new cam is in, cycle the adjustment through every position, confirming each one holds before the base plate goes back on. If a setting still slips afterward, check that the plate itself sits flush, since a loose plate can mimic the symptom of a worn cam almost exactly.
- Part: AC61KJPZV06, height adjustment cam
- Fits: Panasonic MC-V300, GG523, MC-V216
- Function: sets and holds brushroll clearance above the floor
- Symptom: height dial slides between settings or will not hold one
