SEBO Printed Circuit Board ...
$59.00
Product details

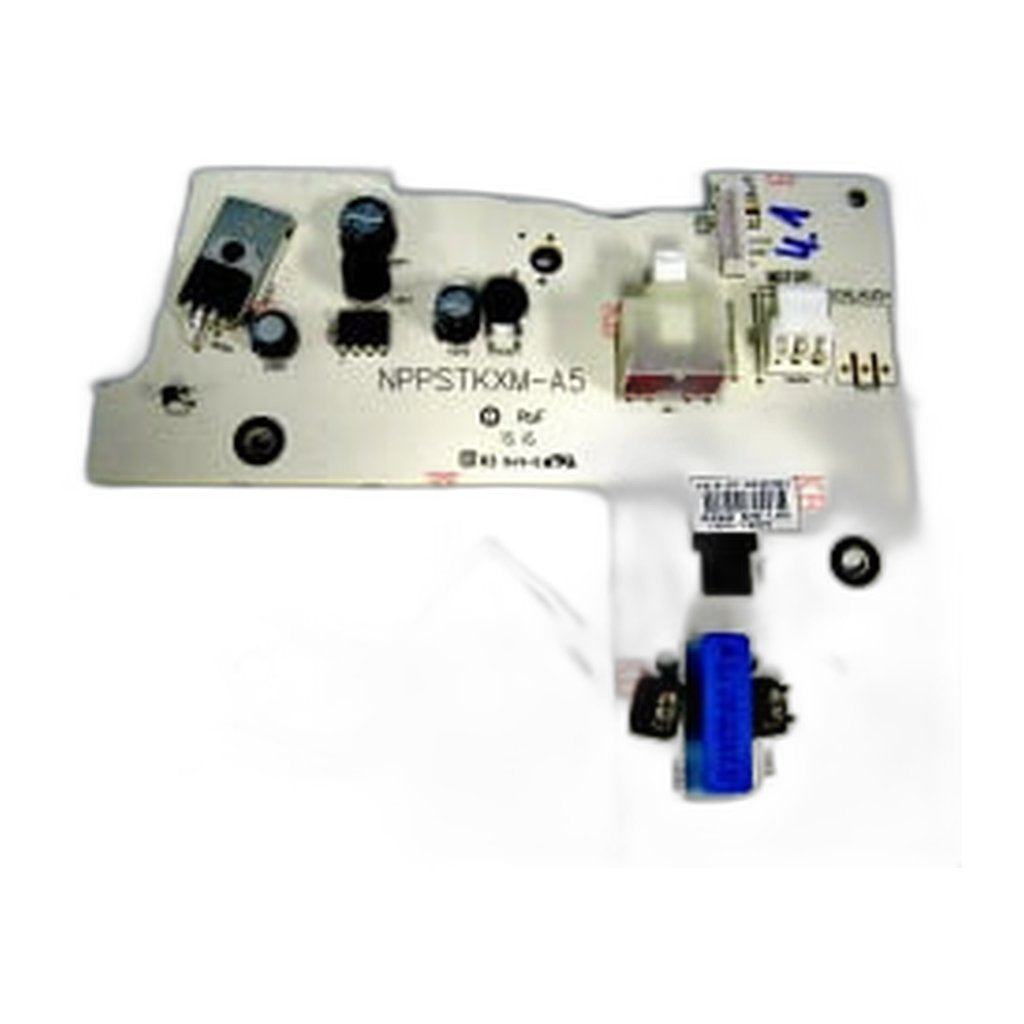

Electronics on the AIRBELT E1 KOMBI and E2 TURBO all live on one board inside the canister. Part 8292ER is SEBO's own replacement for it.
The board stands between what you touch and what the machine does. Moving the suction control turns the potentiometer pinion, 8256ER on these same two canisters, which drives the potentiometer, and the board reads the result and sets the motor accordingly. When the board itself fails, the symptoms read electrical instead of mechanical. Nothing happens at the switch even with a sound cord, the dial makes no difference anywhere in its sweep, or power flickers on and off at random while the motor turns freely by hand.
Diagnose properly before buying. A dead switch, a broken internal lead or a worn pinion can imitate every one of those symptoms for a fraction of the outlay, and the pinion in particular is the cheap fault that looks exactly like this expensive one. Work down from the cord, then the switch, then the lead at item 10 of the AIRBELT E schematic, and only then reach for a board.
- Fitment: SEBO AIRBELT E1 KOMBI and E2 TURBO canisters
- Part number: 8292ER
- Pack: one board
- Points to: no start with a healthy cord and switch, an unresponsive suction control, or intermittent power with a sound motor
- Check first: internal wire 8282ULER at item 10, and the potentiometer pinion 8256ER
- Mis-order trap: 8296ER is a different board and will not stand in for this one
Those two boards are the classic wrong-box order in this range, so match the number to the machine rather than to the photograph. Either one sits in a mains-powered appliance, so leave the fitting to a service technician unless you are properly set up for it. Shipped in 2-5 business days.
