SEBO Screw F 3.9 x 13 (DIN 7981) for X, G, 370, 300/350, C and D Series — 10 Pack

If you keep only one SEBO fastener in stock, make it this. Part 0102ER puts ten of the 3.9 x 13 mm DIN 7981 screws in a single bag.

Reach across the range is what makes the larger quantity worth having. The same screw serves the AUTOMATIC uprights, the ESSENTIAL G machines, the 370 and 300/350 models, the C and D canisters, the ET-C power heads and the DISCO polisher, so one bag on the shelf covers a mixed fleet rather than forcing a separate order for each machine that comes in. Shops running a rental or contract-cleaning fleet tend to buy it by habit for exactly that reason.

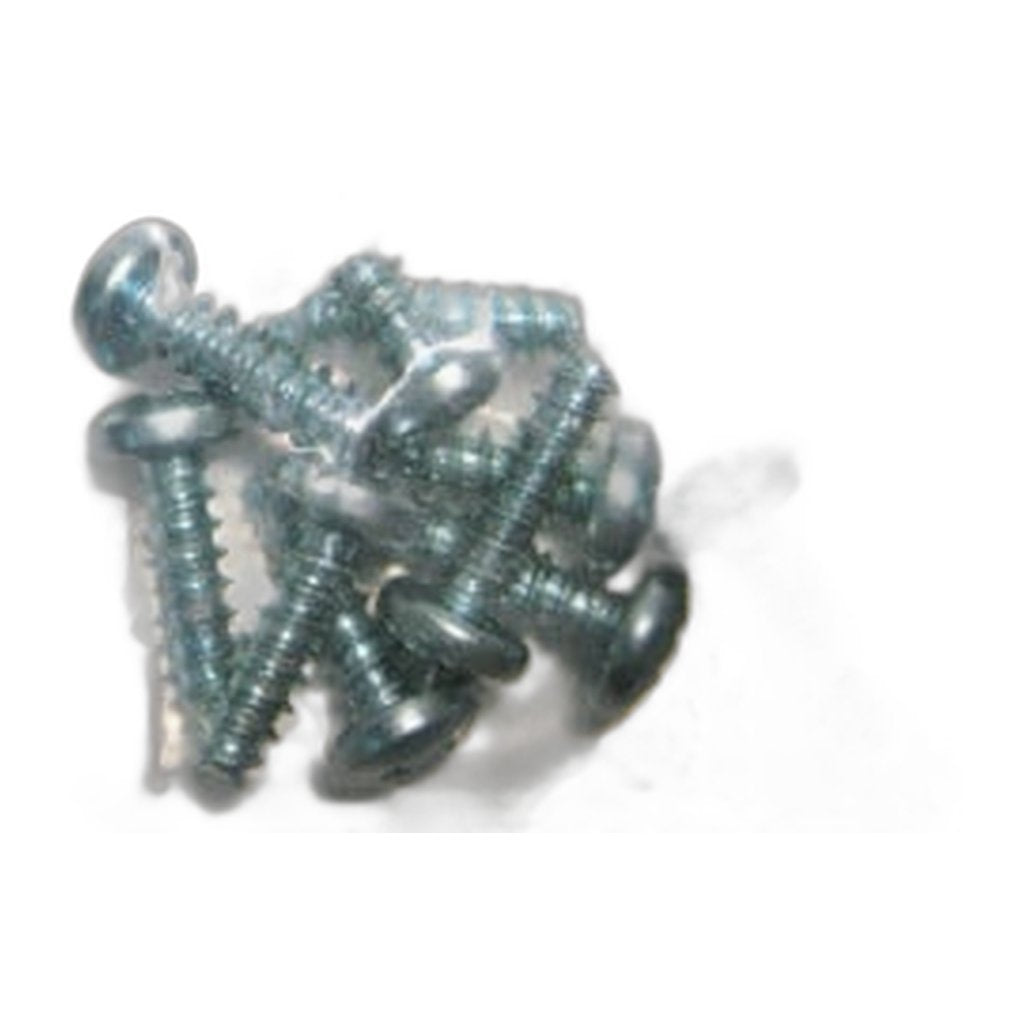

The screw itself is a cross-recessed pan head tapping screw with a flat F point, 3.9 mm in diameter and 13 mm long. It cuts its own thread in the plastic boss it enters, which means it is a consumable: the boss loses a little material each time the screw comes out, and a fastener refitted for the fourth time often will not pull down at all. Renewing the set during a strip-down takes no extra time and removes the most common cause of a panel that will not sit flat afterwards. Keep it apart from part 01021, the DIN 968 screw of the same nominal size, since the two are not interchangeable despite measuring alike.

• Fits: SEBO AUTOMATIC X1, AUTOMATIC X2, AUTOMATIC X4, AUTOMATIC X4 Boost, AUTOMATIC X5, AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8; ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5; 300 Mechanical and 350 Mechanical; 370 Comfort and ELECTRONIC 370; AIRBELT D1 Turbo and AIRBELT D4 Premium; C1.1, C2.1 and C3.1; ET-C power heads; DISCO Floor Polisher
• Size: 3.9 x 13 mm, DIN 7981 F point
• Quantity: 10 screws, part 0102ER
• Single screw: part 0102
• Diagram positions: AUTOMATIC X4/X5 item 14, 300/350 item 143, AIRBELT D item 47, DISCO item 27
• Related hardware: locking washer 0141ER, washer 0143ER

Genuine SEBO stock from an authorized dealer, shipping in 2–5 business days.
