SEBO Left-Hand Swivel Neck ...
$12.00
Product details

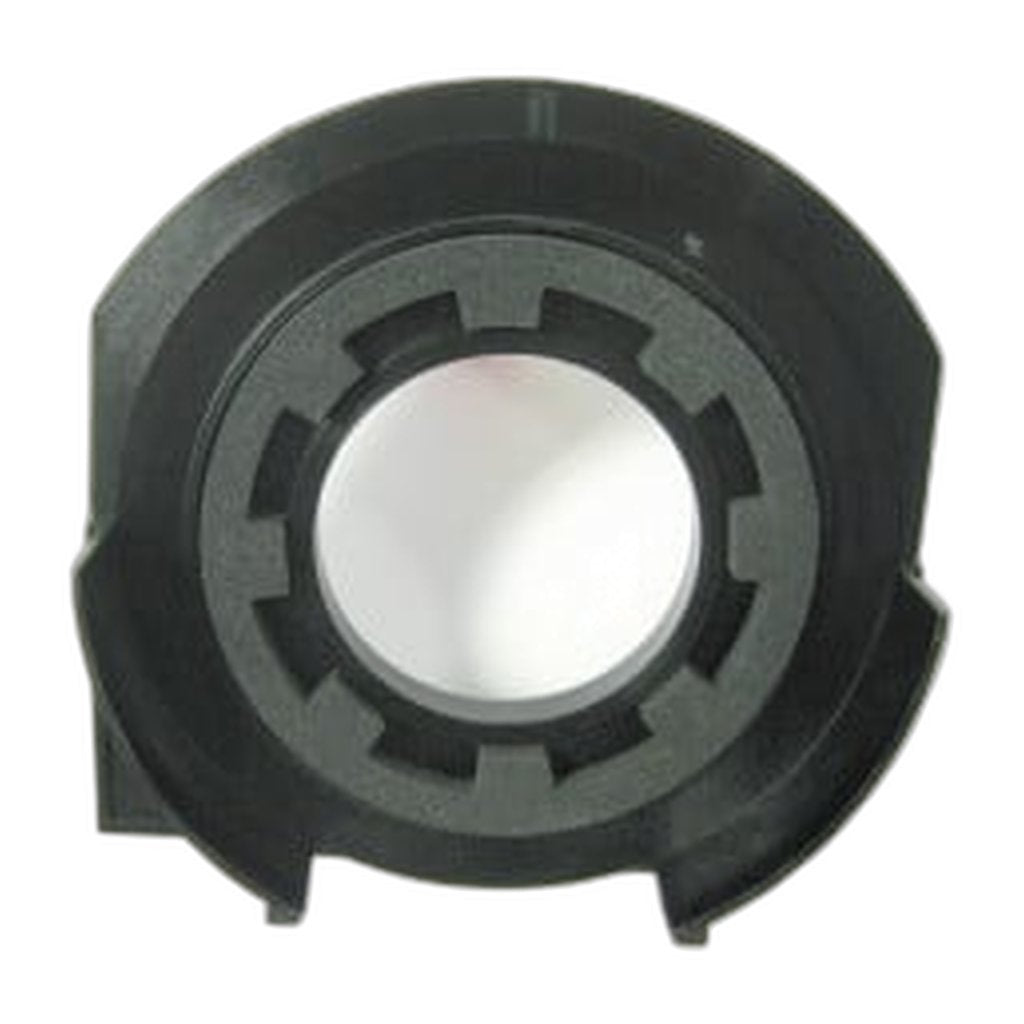

Left and right supports are not the same molding, so the side matters when ordering. Part 5177 is specifically the left-hand swivel neck support for the AUTOMATIC X1 and AUTOMATIC X2. It forms one half of the trunnion the neck rotates in, tying the upper body of the machine down to the power head and taking its share of every twist the handle is given.
These supports fail at the boss around the pivot, and they fail slowly. First there is a slight diagonal wobble in the handle, then the machine starts wanting to wander off line as it is pushed, and eventually the crack opens far enough that the neck sits visibly proud on that side. Because both supports carry the same load and are the same age, it is worth checking the opposite side while the machine is apart rather than doing the same job twice a few months later.
- Part number: 5177
- Side: left hand
- Job: one half of the swivel neck mount between body and power head
- Fits: AUTOMATIC X1 and AUTOMATIC X2
- Sold as: one support; the right-hand side is a separate order
- Related part numbers: 5178, the right-hand support for machines on the older 5320UL chassis; 5175UL, the complete swivel neck assembly for the X1 and X2
Where a neck has been loose for a long time, look at the wiring routed through the joint before reassembling — a support that has been flexing usually means the cable inside has been flexing too, and insulation that has been chafing against a cracked edge will not improve once the bracket is sound again. Searches such as SEBO swivel neck support, AUTOMATIC X1 left hand neck bracket and X2 handle wobble repair all point to part 5177.
Genuine SEBO molding from an authorized dealer; ships in 2-5 business days.
