Product details

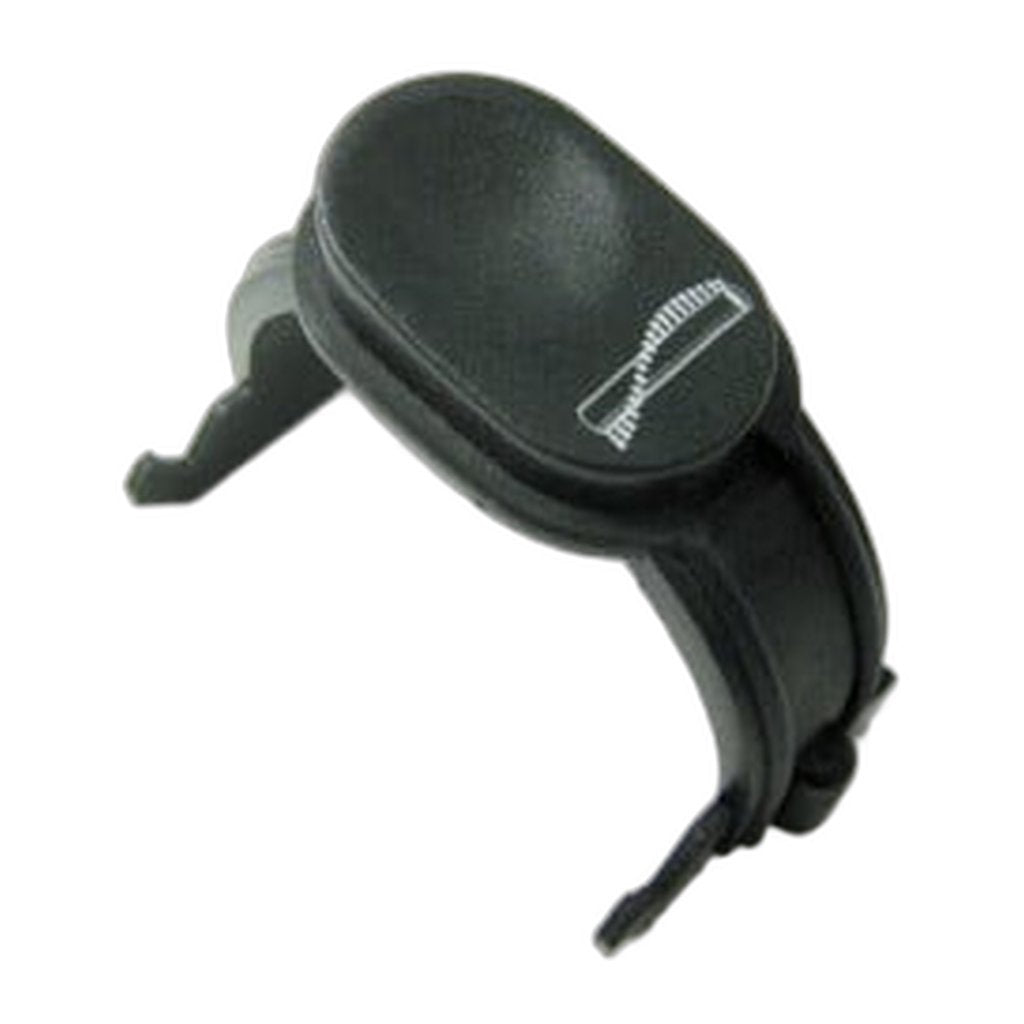

Three complaints send owners of a SEBO AUTOMATIC X4 to this part. A roller that rocks in its seat. A drive belt that keeps creeping toward one side. A lever that will not let go when there is hair to cut off the bristles. All three trace back to 5713SW, the black brush roller release, which SEBO writes up at item 114 as the onyx version — onyx being the company's own name for this finish.

The lever is the reason a roller can be taken out with bare hands. It pulls the roller square into its bearings and holds it there against the pull of the drive, so once the locking face has worn round the roller gains enough freedom to shift under load. From there it rubs where it should not, and the belt stops tracking centrally, which is why what starts as a worn lever is so often reported as a belt problem. Drive on this machine reaches the roller in two stages, from the motor pulley to the sensor pulley and from there down to the roller itself, so anything loose at the roller end shows up quickly in how the belts sit.

  • Machine: SEBO AUTOMATIC X4
  • Finish: black, listed by SEBO as onyx
  • Position on the drawing: item 114
  • Duty: locks the roller into the head, releases it for cleaning
  • Sold as: one lever, no fixings
  • Order number: 5713SW
  • Roller it retains: 5010AM
  • Right-hand bearing block in black: 5031SW2
  • Sensor with screws and pulley: 5464
  • Drive belts: 5463 and 5110
  • Black trim elsewhere on the machine: 5707SW cover at item 17, 5711SW exhaust filter cover, 5774SE front cover at item 23, 5763SW bag housing, 50783SE power head cover, 5702SW bumper base, 5380SW internal cover, 5161SW switch cap holder, 1823SW attachment clip, 5768SW cable hook kit

With the roller out of the way, the belt and the bristle rows are both visible without further dismantling, so it is a sensible point to judge whether either has more life left. Buyers reach this listing through the number by itself, a black SEBO brush roller release, or an onyx X4 roller lock. Ships in 2–5 business days.
