SEBO

SEBO Bypass Valve with Wiring for ESSENTIAL G1 and G2

SEBO Bypass Valve with Wiring for ESSENTIAL G1 and G2

$32.00 USD
$32.00 USD
Sale Sold out
Shipping calculated at checkout.

2835
Authorized Sebo Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

SEBO Bypass Valve with Wiri...

$32.00

Product details

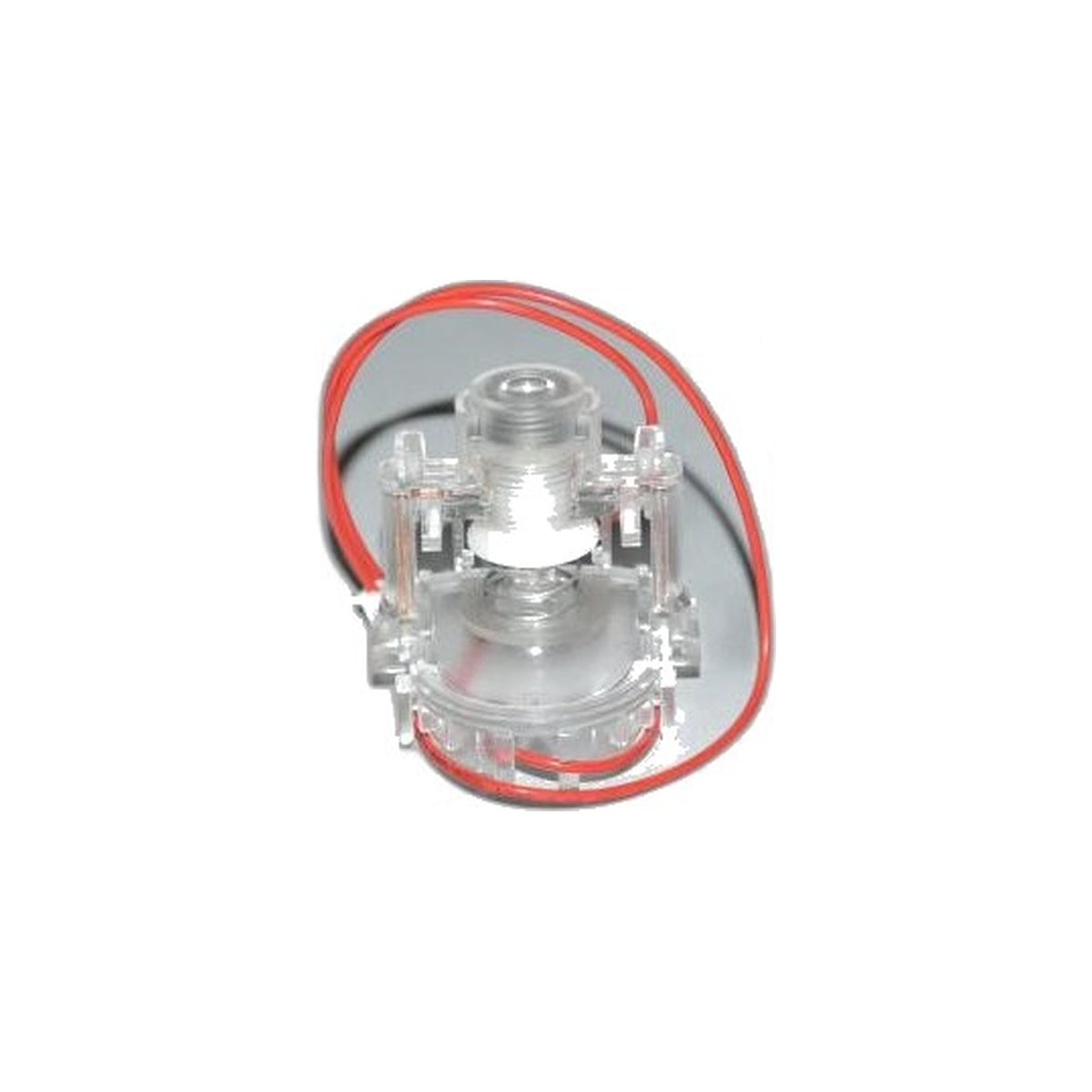

Suction relief on the ESSENTIAL G1 and the ESSENTIAL G2 is handled by a bypass valve, and part 2835 supplies that valve with its wiring already made up. A bypass valve opens a secondary path into the airstream when the main route through the bag, hose or wand is choked, so the motor keeps drawing air instead of running against a closed system. Taking the part as an assembly means no splicing on the bench and no guesswork about which lead lands where.

This is the part reached for when a blocked hose no longer produces the response the machine is meant to give, when the valve sticks open and the head feels short of pull on carpet, or when the lead at the valve has chafed against the housing and the connection has gone intermittent. Because the wiring runs with it, a failure here can present as an electrical fault rather than an airflow one, which is worth remembering before more expensive electronics are suspected on a G1 or G2.

Pull the plug from the outlet before the body is opened, and photograph the lead routing while everything is still in place — the valve sits deep enough that the return trip is much easier with a picture to work from. While the machine is apart, a clogged filter path is worth ruling out as the real cause of the restriction: exhaust filter 2846 covers the ESSENTIAL G machines, microfilter 5036AM and HEPA microfilter 5812ER handle the intake side, and filter bag box 5093AM is the bag to fit. The other G1 and G2 electrical parts commonly ordered with it are computer controller 2881ER and PCB power supply 2890ER.

  • SEBO part 2835 — bypass valve with wiring attached
  • Fits: SEBO ESSENTIAL G1 and ESSENTIAL G2
  • Supplied as: valve plus made-up lead, ready to connect
  • Typical symptom: no relief on a restricted airway, or an intermittent connection at the valve
  • Service note: disconnect from the outlet and record the wiring layout before removal
  • Related part numbers: 2881ER computer controller, 2890ER PCB power supply, 2846 exhaust filter, 5093AM filter bags
  • Genuine SEBO; ships in 2–5 business days
