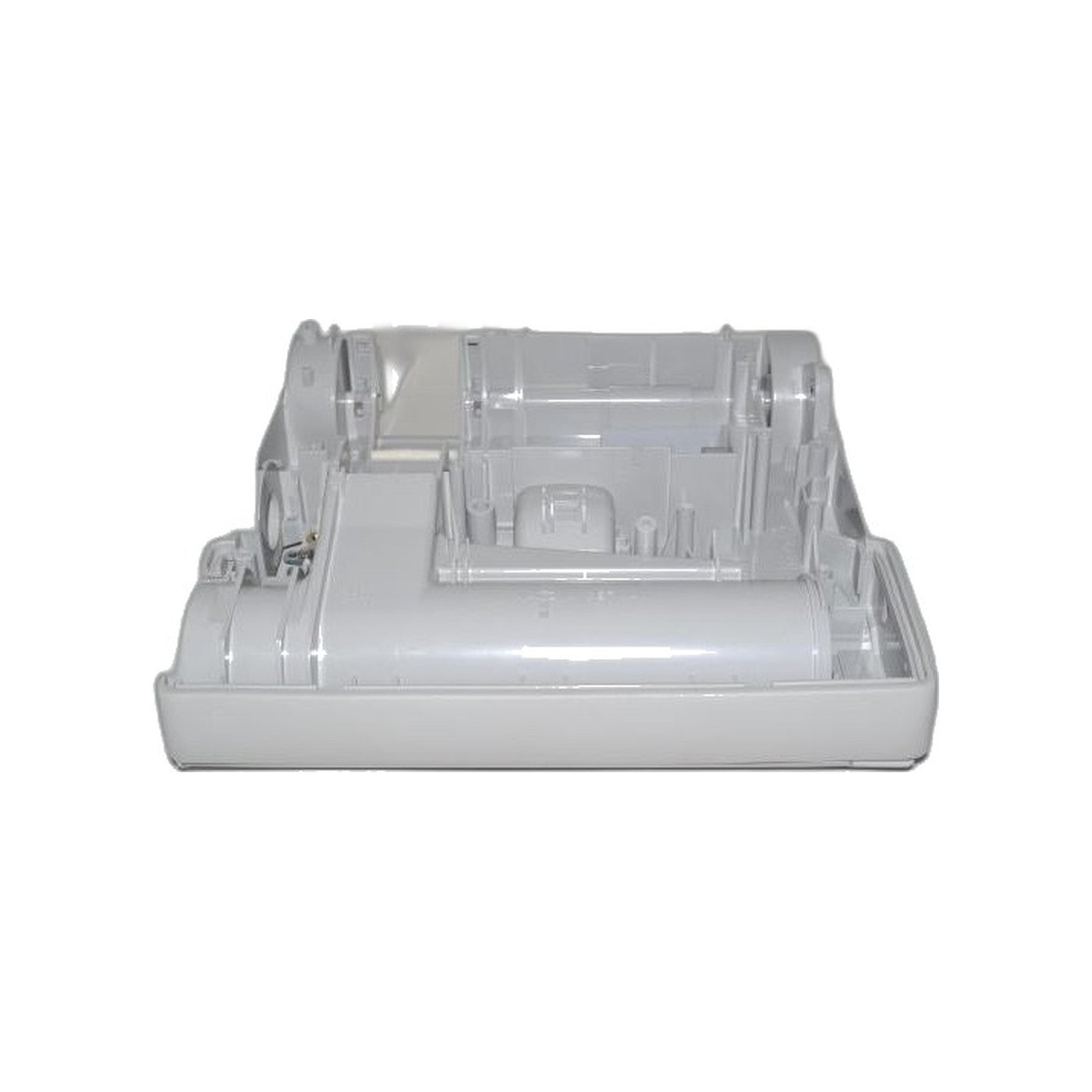

SEBO Complete Chassis for ESSENTIAL G1 and G4 — Light Gray

Everything in a cleaning head hangs off the chassis, which is why SEBO supplies part 2821HG as a whole light gray frame rather than a repair section. This is the version cut for the SEBO ESSENTIAL G1 and the SEBO ESSENTIAL G4, the two machines in the range built around a 12 inch brush roller.

A frame that has cracked at a mounting boss lets the roller and its bearings sit out of true. The machine still runs, but the brush wears unevenly, the belt tracks off centre, and the head no longer meets the carpet flat across its width. Damage of that kind is structural, and patching it rarely holds for long: the crack reopens under load within a few hours of use, usually at the same boss. Dropping the machine on its head, running it hard into a skirting board, or over-tightening a screw into a boss that has already started to split are the common causes.

Because the frame arrives bare, the rebuild is a transfer job. Brush roller 5010AM, or the soft-bristle version 5010GE, moves across with its release catch 5713GS; bearing blocks 5031HG on the right and 5766HG on the left go back in their seats; belt 5463 carries the drive from the motor to the sensor and belt 5110 takes it on to the bearing block. Front bottom plate 5411HG and rear bottom plate 2829HG close the base, and power head cover 2831AM caps a G1 while 2831AM2 does the same on a G4. Work through it in that order and nothing gets left in the old frame.

• Part number: 2821HG, SEBO chassis, complete
• Colour: light gray
• Fits: SEBO ESSENTIAL G1 and SEBO ESSENTIAL G4
• Replace when: a mounting boss or bearing seat has cracked, the head sits unevenly, or the belt refuses to stay centred
• Transfer onto the new frame: brush roller 5010AM or 5010GE, roller release 5713GS, bearing blocks 5031HG and 5766HG, belts 5110 and 5463
• Panels that bolt to it: front bottom plate 5411HG, rear bottom plate 2829HG
• Covers above it: 2831AM for the G1, 2831AM2 for the G4
• Genuine SEBO frame, supplied complete; ships in 2–5 business days
