SEBO Short Wire Tie for AUT...
$6.99
Product details

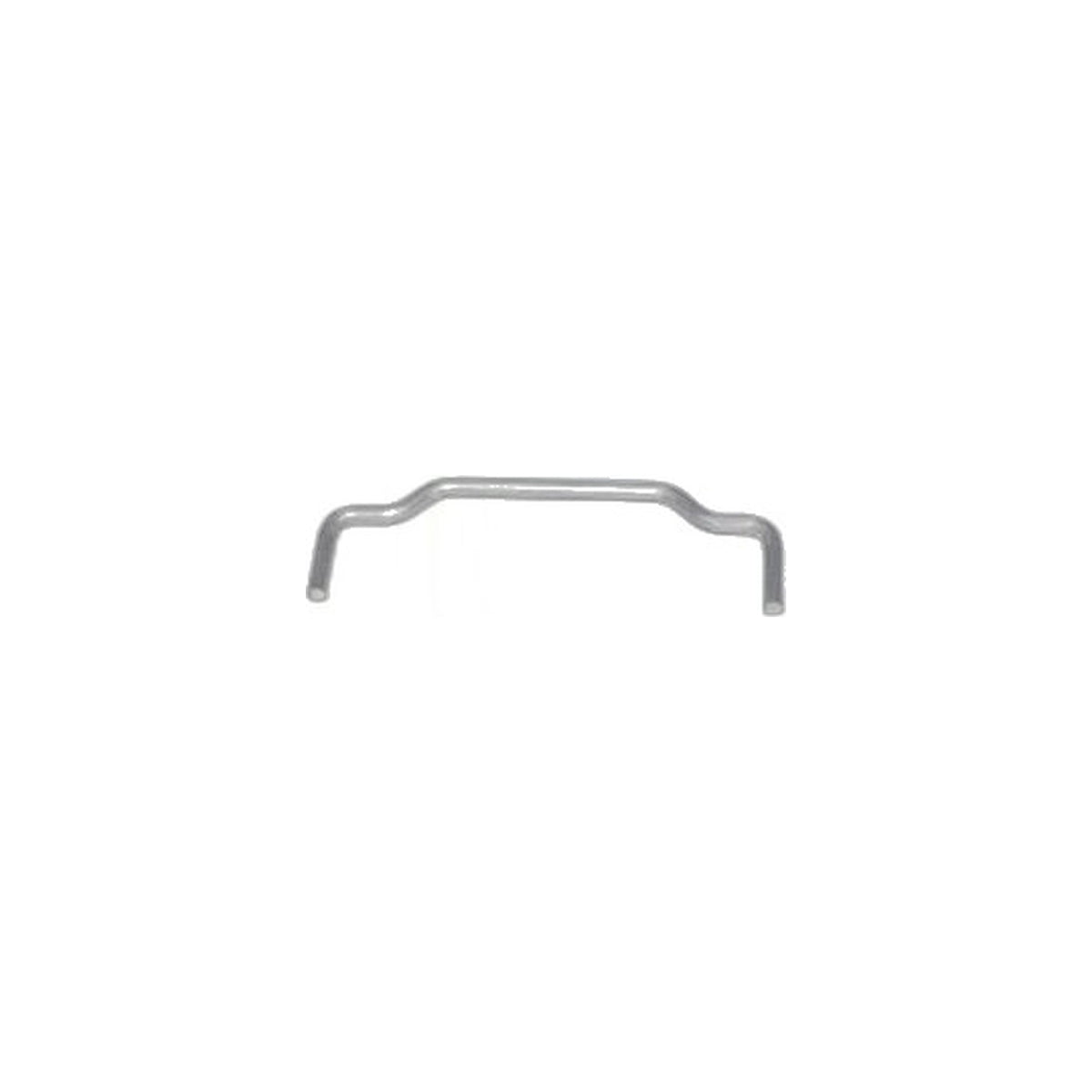

Of the two internal wire ties SEBO stocks, 5401 is the shorter one. The ESSENTIAL G4/G5 drawing lists it at item 143 as the outer tie under the bottom plate, and SEBO's ET power head sheet carries it at item 137 in the same outer position.
Those two references say most of what needs saying about where it lives. This is the tie that gathers the loom running along the underside of a machine or through a power head and holds it away from the brush roll, the drive and everything else down there that turns. On the power head sheet it sits within a few positions of the motor pulley and the switch assembly, which is exactly the area where loose wiring has somewhere dangerous to go.
Ties get cut to reach something during a repair and are then easy to overlook when the machine goes back together. A loom left unsecured does not fail immediately; it drifts, finds a moving part or a hot surface, and shows up months later as a chafed lead. Length matters as much as presence: the longer tie leaves slack where this shorter one pulls the bundle in properly, so use the number the diagram specifies for the position rather than whichever one is in the drawer. The long version is 5402.
- Fits: SEBO AUTOMATIC X2 and X5; SEBO ESSENTIAL G1, G2, G4 and G5; SEBO FELIX 2 Premium; SEBO ET-2 power heads, switched and unswitched
- Length: short tie
- Part number: 5401
- Diagram positions: item 143 outer, bottom plate, ESSENTIAL G4/G5; item 137 outer, ET power heads
- Function: secures internal wiring clear of moving parts
- Long version: 5402
Fit it in the position the drawing shows rather than wherever there is room, since the routing is what keeps the loom out of trouble in the first place. Genuine SEBO wire tie, shipping in 2–5 business days.
