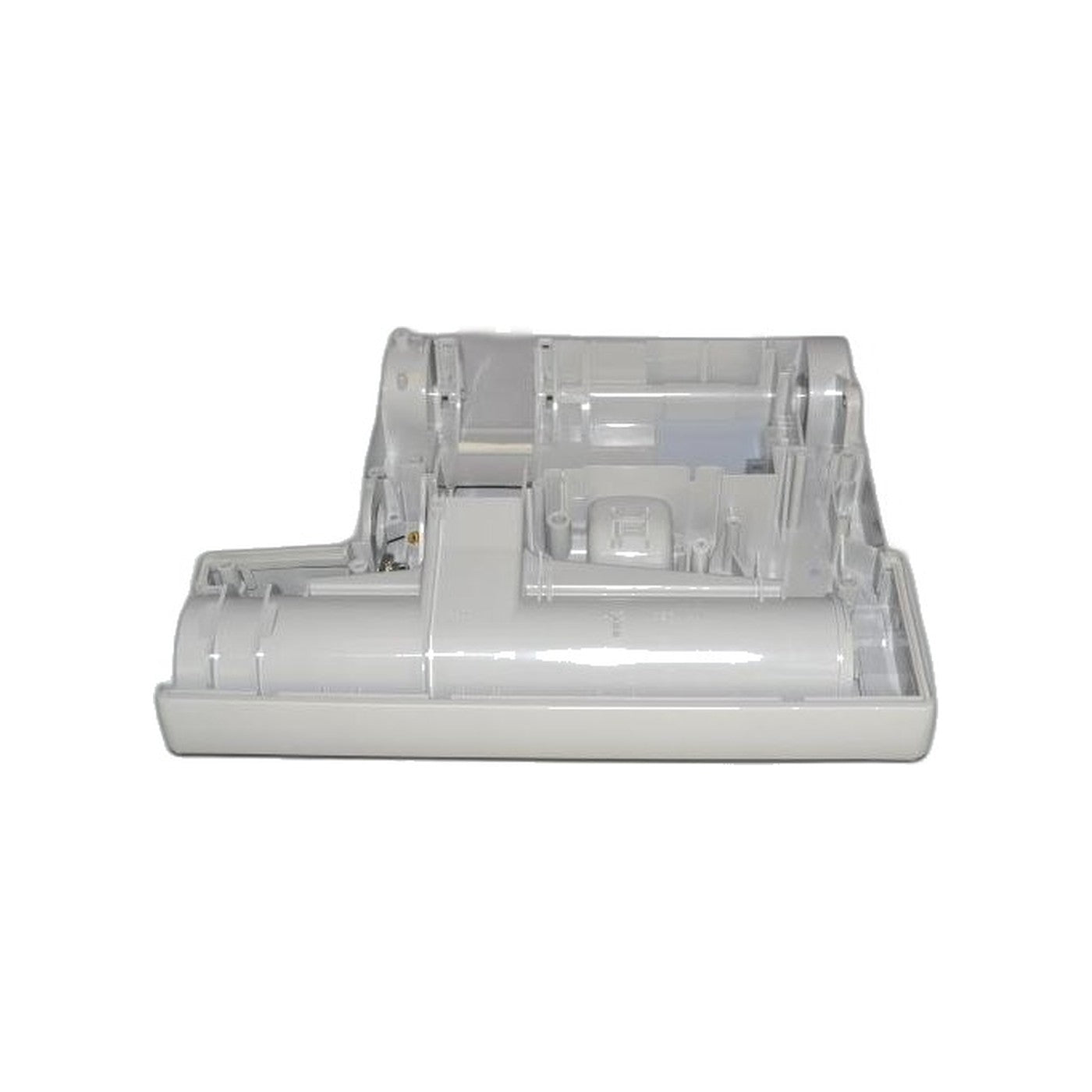

SEBO Complete Chassis for ESSENTIAL G2 and G5 — Light Gray

SEBO Complete Chassis for ESSENTIAL G2 and G5 — Light Gray

$74.00 USD
$74.00 USD
Sale Sold out
Shipping calculated at checkout.

2822HG
Authorized Sebo Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Fits the same machines

SEBO Complete Chassis for E...

$74.00

Product details

SEBO ESSENTIAL G2 and G5 uprights take a chassis of their own, and part 2822HG is it: the light gray frame, supplied whole and ready to build onto. These are the wide-head machines in the range, running a 15 inch brush roller, so the frame is not interchangeable with the narrower version.

Chassis damage tends to arrive slowly. A hairline crack around a bearing seat or a screw boss gives the roller a little freedom, and from there the belt starts to wander, one end of the brush wears faster than the other, and the head stops sitting level. By the time it is obvious, the belt has usually been replaced once or twice for a fault that was never in the belt. Fitting a sound frame resets the geometry that every other part in the head depends on.

Plan the rebuild before stripping anything. Brush roller 2838AM, or soft-bristle roller 2838GE, comes across with release catch 2843GS; bearing blocks 5031HG right and 5766HG left carry the roller ends; belt 5463 runs from the motor to the sensor and belt 5110 from the sensor to the bearing block. Front bottom plate 2828HG and rear bottom plate 2830HG close the underside, and the shell on top is 2832AM for a G2 or 2832AM2 for a G5. Light gray is the correct finish and matches the base panels supplied for these machines.

  • Part number: 2822HG, SEBO chassis, complete
  • Colour: light gray
  • Fits: SEBO ESSENTIAL G2 and SEBO ESSENTIAL G5
  • Replace when: a bearing seat or screw boss has cracked, the head rocks, or brush wear is heavier at one end
  • Carry across from the damaged frame: 15" brush roller 2838AM or 2838GE, roller release 2843GS, bearing blocks 5031HG and 5766HG, belts 5110 and 5463
  • Base panels: front bottom plate 2828HG, rear bottom plate 2830HG
  • Power head covers for these machines: 2832AM and 2832AM2
  • Genuine SEBO frame; ships in 2–5 business days
