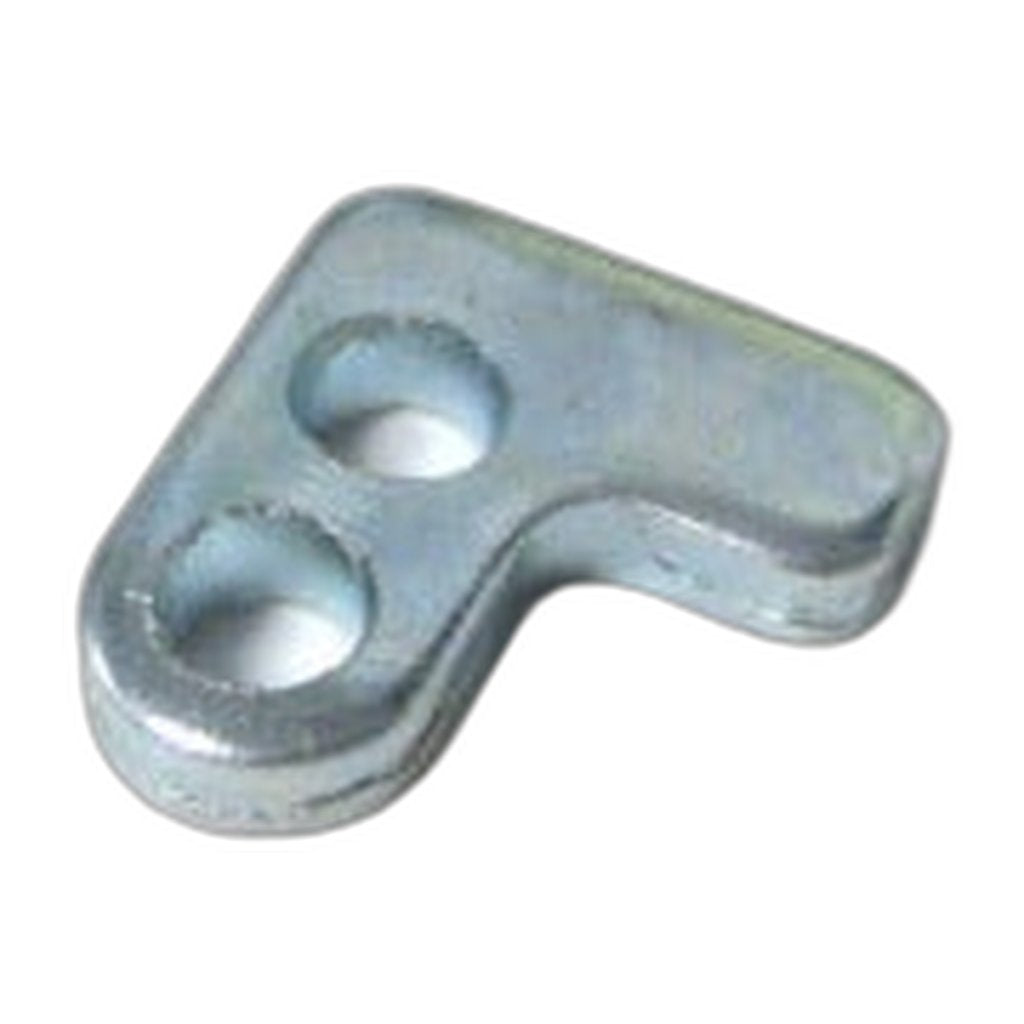

SEBO Clamp for the Axle Thrust Member Spring — G Series and 300/350

Springs only do useful work while something keeps them captive. Part 2856 is the clamp that traps the axle thrust member spring on SEBO's ESSENTIAL G uprights and on the 300 and 350 Mechanical machines, holding it loaded in exactly the spot the chassis was designed around. Fitment runs across the ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5 as well as the 300 MECHANICAL and 350 MECHANICAL.

Look for it at position 107 in the SEBO 300/350 Mechanical drawing and at position 137 on the ESSENTIAL G4/G5 sheet. The chain it belongs to is short and easy to picture: the spring pushes the thrust member, the thrust member loads the pile adjustment axle, and the axle sets how low the brush sits in the carpet. Take the clamp out of that chain and the spring goes slack or jumps its seat, which shows up as a height control with no resistance behind it and a nozzle that will not stay where it was set.

Photograph how the spring lies before the old clamp is released — reassembly goes much faster when the original orientation is not being reconstructed from memory, and a spring that escapes on the bench is easy to refit backwards. Since the whole assembly is exposed at that point, the parts worth having on hand are thrust member 2834 for the axle side, 2833 for the knob side, spring 2867, axle 2861, rubbing plate 2869HG and axle clamp 2849. People find this listing searching for a SEBO spring clamp, G series thrust member clamp or a 350 MECHANICAL height adjustment part.

• SEBO part 2856 — clamp that captures the thrust member spring on the axle
• Fits: SEBO ESSENTIAL G1, G2, G4 and G5, plus the 300 MECHANICAL and 350 MECHANICAL
• Parts-diagram positions: 107 (300/350 Mechanical), 137 (ESSENTIAL G4/G5)
• Function: keeps the spring under load in the axle assembly
• Typical symptom: a height control with no spring resistance behind it
• Related part numbers: 2867 spring, 2834 and 2833 thrust members, 2861 axle, 2869HG rubbing plate, 2849 axle clamp
• Genuine SEBO; ships in 2–5 business days
