SEBO Cord Rewind Unit for A...
$71.00
Product details

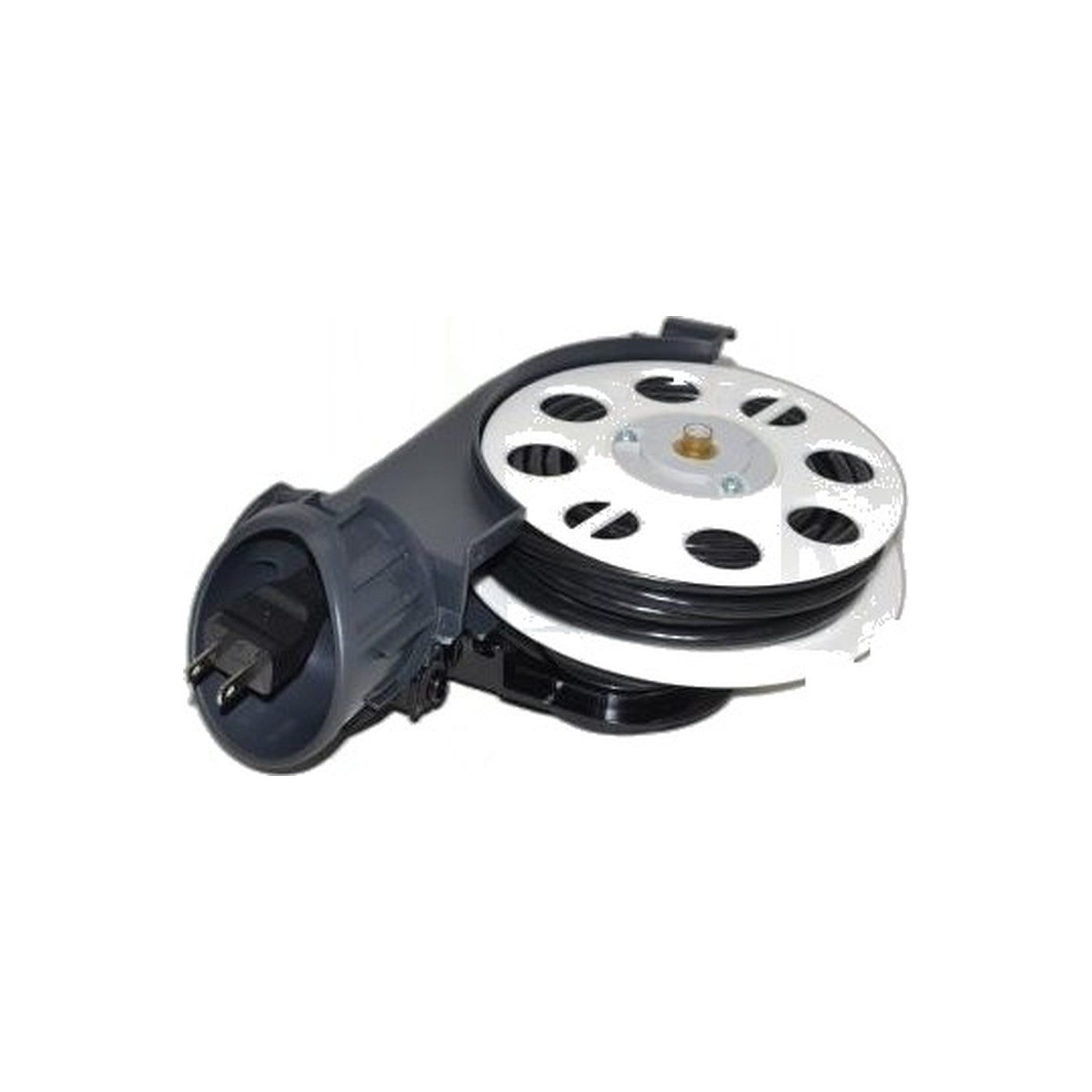

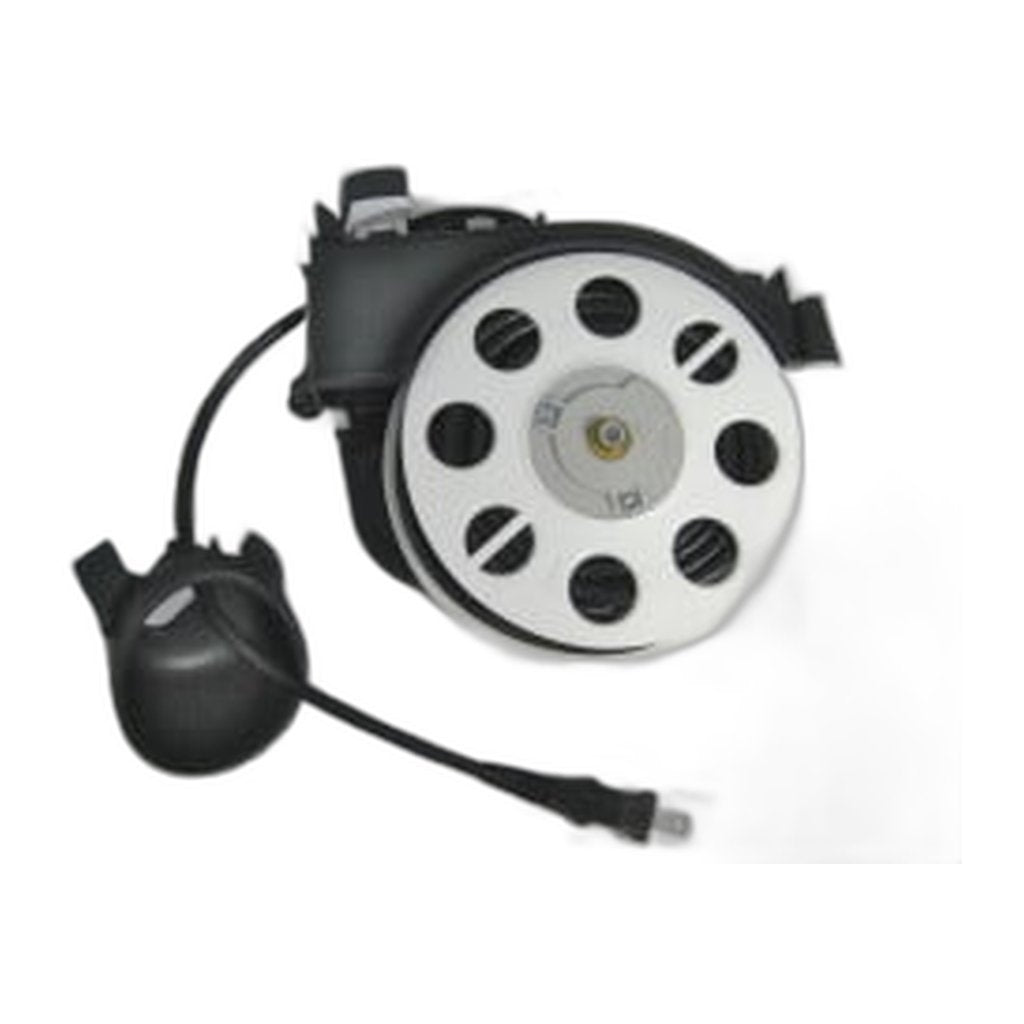

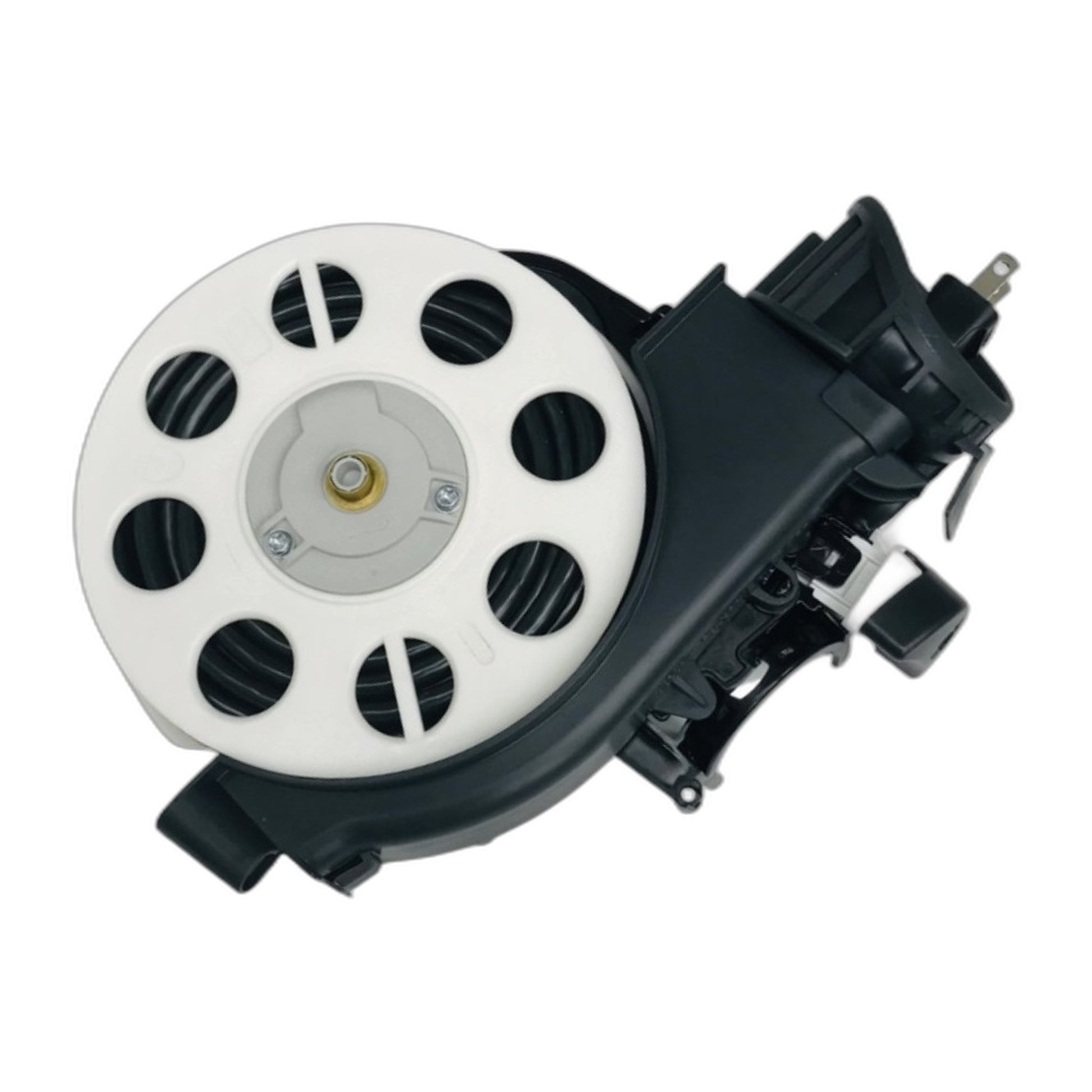

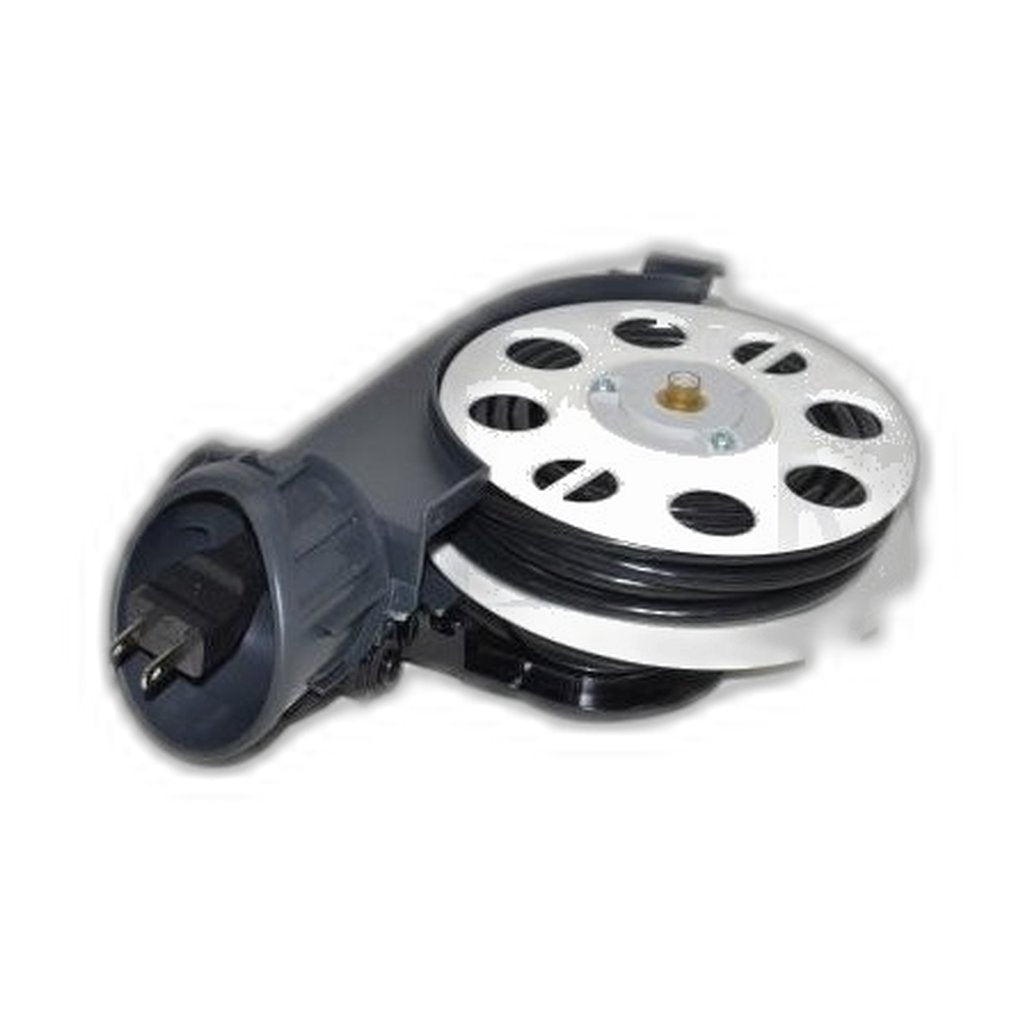

One rewinder serves all three AIRBELT E canisters. 665633ER is that unit, shown at position 14 of the AIRBELT E schematic and specified as the AM plug build, so the number is worth matching exactly rather than approximately.
It sits deep in the machine, inside middle casing 8230ULER at position 5 and surrounded by the working group: the 120V vacuum motor 8243ER at 9, its motor support 8045ER at 11, noise limiting cover 8220ER at 12 and motor cover 8289ER at 13. Reaching the reel means passing all of that, which is a practical argument for renewing a doubtful rewinder while a machine is already open for motor work rather than closing it up and returning to the job in a year.
People arrive at this part when retraction turns unreliable. The cable creeps home rather than snapping in, or halts halfway, or snarls somewhere inside the housing, or refuses to hold where it was drawn out to. The spring and drum form a sealed sub-assembly and cannot be re-tensioned safely by hand, so the fix is a straight exchange. While the casing is open, look along wire 8282ULER at position 10 for chafing where it passes the reel, and support 8213GSER at 27 for cracks — both are easy to check once and awkward to reach twice.
- Part number: 665633ER
- Fitted to: SEBO AIRBELT E1 Kombi, the E2 Turbo and the E3 Premium
- Diagram position: item 14 on the AIRBELT E sheet
- Version: AM plug
- Type: complete rewind assembly, sealed drum and spring
- Nearby numbers: 8230ULER middle casing, 8243ER vacuum motor, 8289ER motor cover, 8282ULER wire
- Replace when: the cord will not retract, stalls partway, or will not hold at length
Note the routing of the leads before the old unit comes out; the new one goes back the same way. A SEBO cord reel for the E series, an AIRBELT E cord rewinder and an AIRBELT E position 14 assembly are all this number. Factory SEBO assembly, authorized dealer stock, sent out in 2–5 business days.
