SEBO Gear Wheel 34 Assembly...
$10.00
Product details

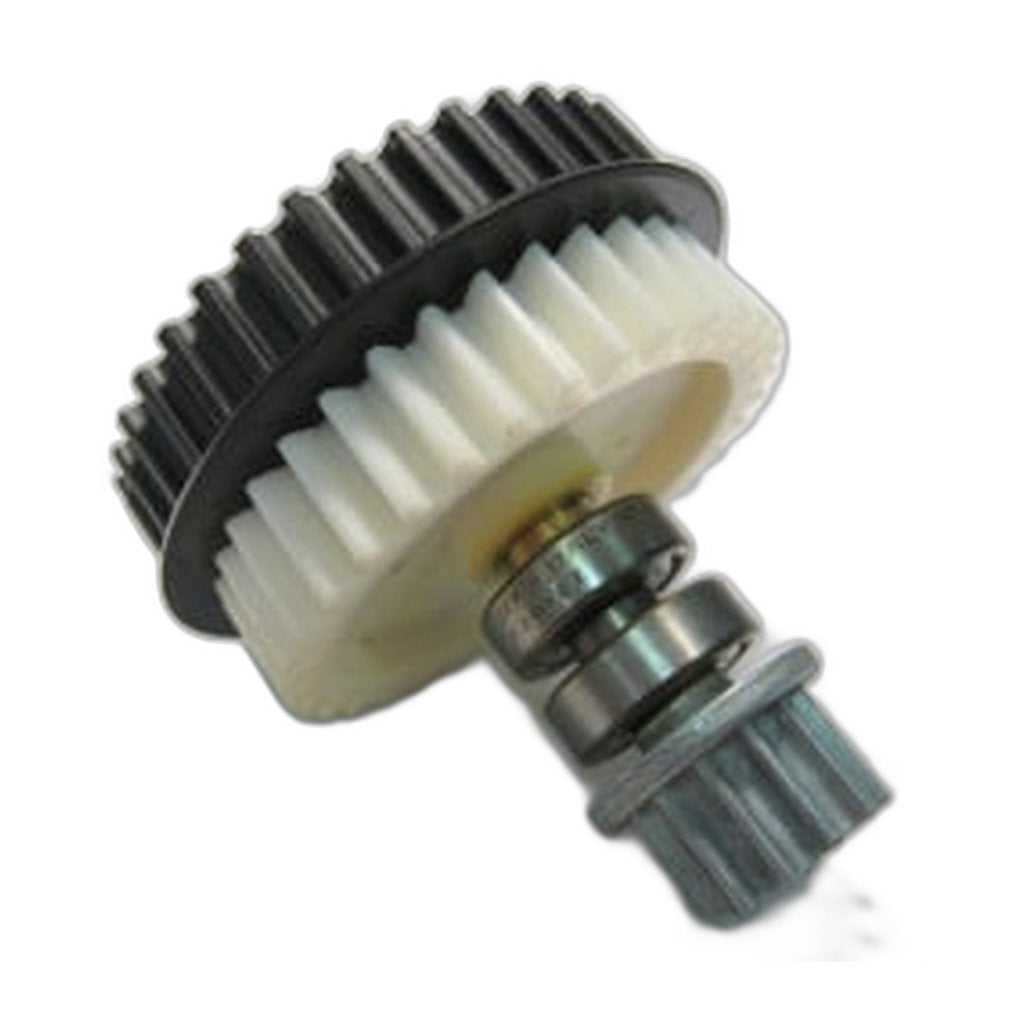

Sold complete rather than as loose pieces, part 3021 renews the entire right-hand gear stage of the Duo in one go. SEBO catalogues the item as Gear Wheel 34, right hand, supplied as a complete assembly, and draws it at position 62 of the machine's parts diagram, directly after the right-hand-thread shaft at 61, part 3035, and before the pulley at 63, part 3018.
Gear teeth do not usually wear evenly. One chipped tooth is enough to produce the knock-per-revolution that owners describe as a tick or a grind, and once the profile has gone the mating gear starts to suffer as well, which is how a single fault turns into two orders. Buying the stage assembled removes the guesswork of matching individual components and puts a known-good set of teeth back into mesh with the correct spacing already set.
- Part number: 3021
- SEBO designation: Gear Wheel 34, right hand, complete
- Diagram position: 62 on the SEBO Duo parts diagram
- Fits: the SEBO Duo brush machine
- Supplied: as a complete assembly
- Related numbers: 3022 gear wheel LH thread at 55, 3035 shaft RH thread at 61, 3018 pulley at 63, 3040 end plate at 65
The left-hand gear wheel carries its own part number, 3022, and is a bare gear on a left-hand thread rather than an assembly, so the two sides are neither interchangeable nor equivalent in what arrives. Check the position on the drawing against the side of the machine you have opened before ordering. Whether the search runs on SEBO Gear Wheel 34, a Duo right hand gear assembly or plain part 3021, this is the correct listing. Genuine SEBO assembly supplied through an authorized dealer. Ships in 2-5 business days.
