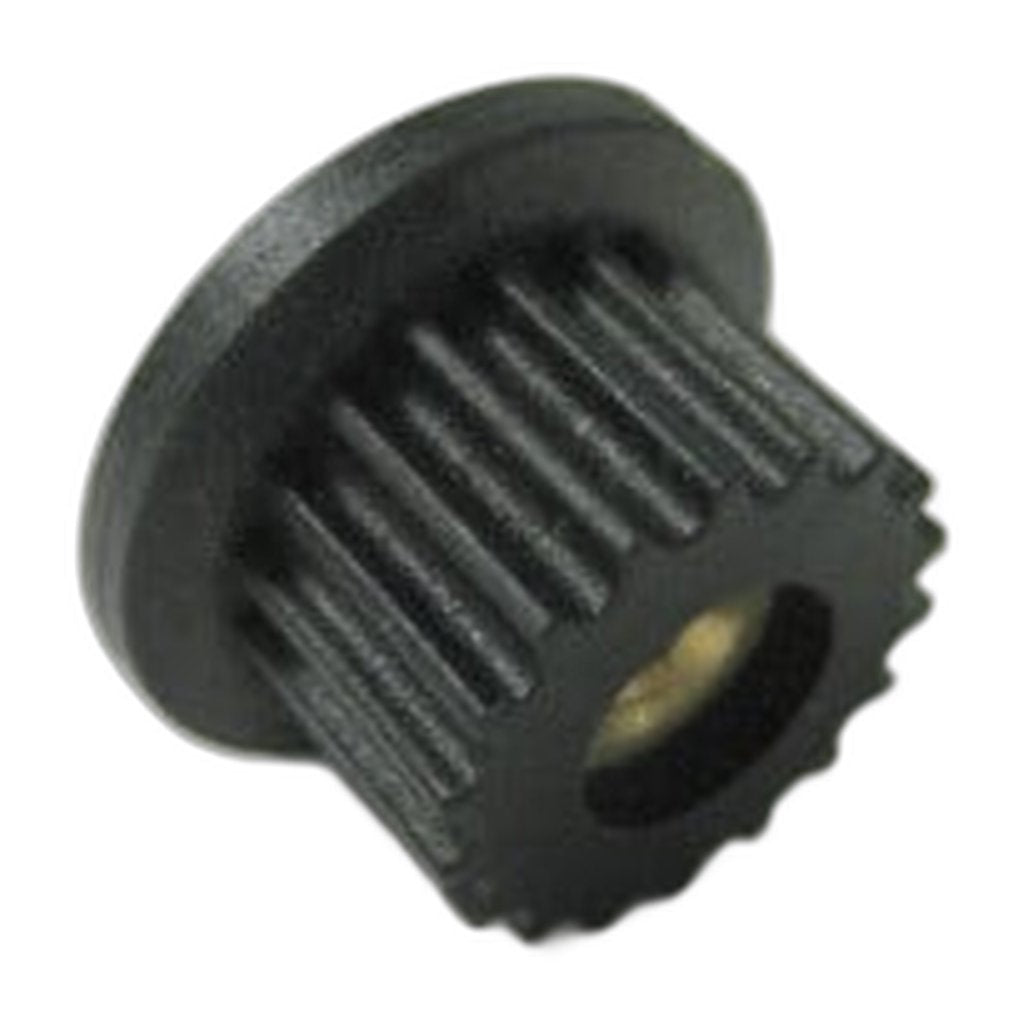

SEBO Motor Pulley for DISCO
$6.99
Product details
Mounted straight onto the motor shaft, SEBO 3222 is the DISCO motor pulley, item 19 on that machine's parts diagram. It is the small component that takes rotation from the motor and hands it to the drive belt, which makes it one of the few parts on the polisher that is turning every second the machine is switched on.
A pulley with a chewed, grooved or polished face cannot grip a belt cleanly any more. The belt slips under load, the drive runs slow while the motor note stays exactly the same, and the damaged surface then works through new belts far faster than it should. That last symptom is the useful one: a machine that eats belts is telling you the pulley has been the problem all along. Renewing the pulley and the belt, part 3221, at the same visit is the usual repair, and it saves stripping the same section of the machine twice. Check the shaft and the fit of the pulley on it as well: a pulley that has been running loose leaves marks on the shaft, and a new component pressed onto a damaged one will not stay tight for long.
- SEBO part number: 3222
- Fits: SEBO DISCO floor polisher
- Diagram position: 19, SEBO DISCO parts list
- Mounts on: the motor shaft
- Drives: the drive belt, part 3221
- Replace when: the face is grooved or polished, or new belts wear out quickly
- Sold: individually
The 120V motor this pulley sits on is available complete as 3252ER, with carbon brush set 05141S listed against it, and the belt drive cover that closes the section is 3202GS. Owners looking for a SEBO DISCO motor pulley, a DISCO belt pulley or the number 3222 have found the right page. Genuine SEBO from an authorized dealer, shipping in 2-5 business days.
