SEBO AIRBELT C3.1 schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation.

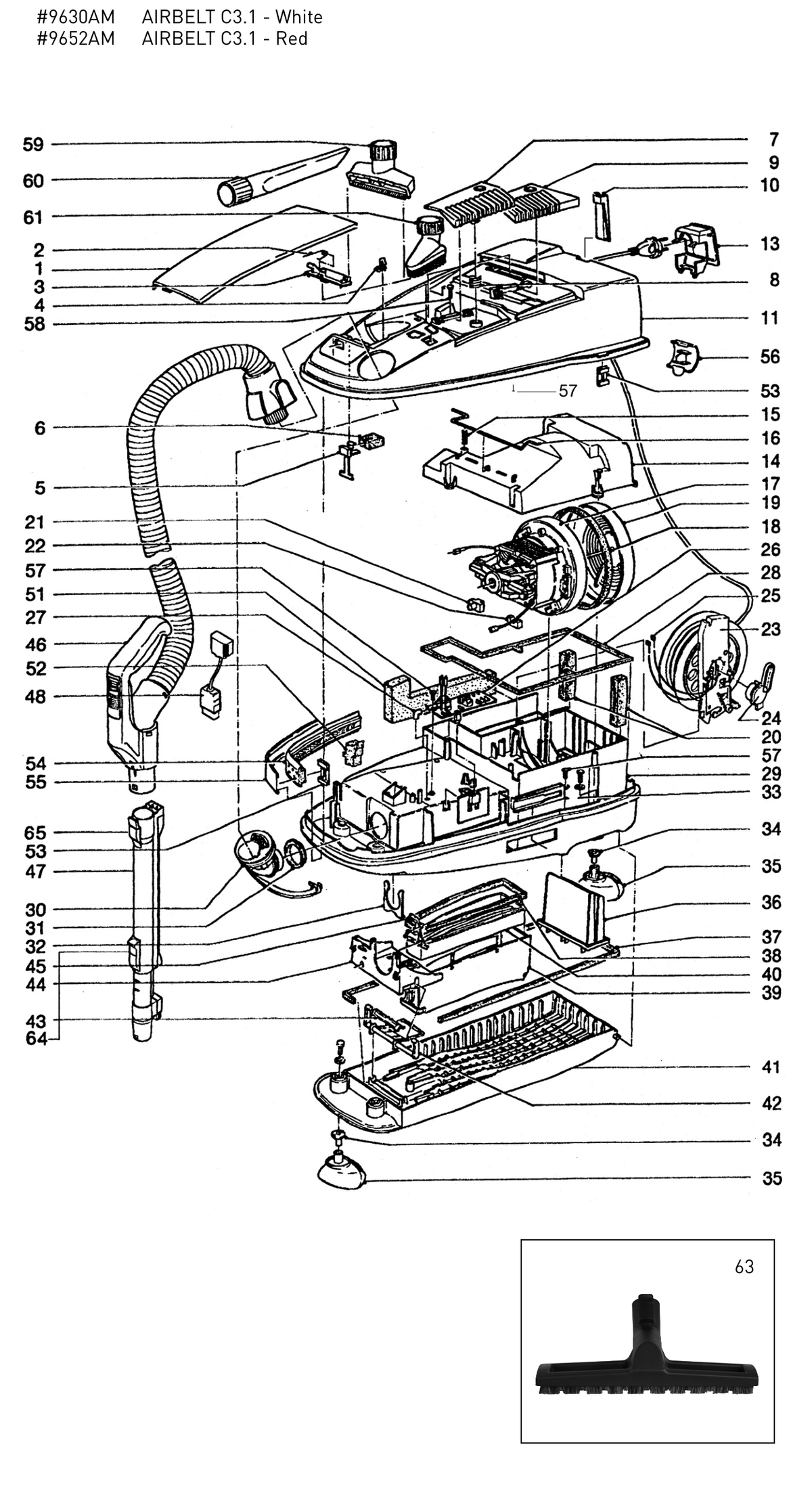

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT C3.1 parts on this page (62)
- SEBO Foam Bumper for C1.1, C2.1 and C3.1 Canisters — SKU 6046UL
- SEBO On/Off Foot Pedal for C3.1 Canister — Red — SKU 6005DR
- SEBO On/Off Foot Pedal for C3.1 Canister — White — SKU 6005GW
- SEBO Release Button in Dark Gray for C1.1, C2.1 and C3.1 — SKU 6083DG
- SEBO Cover Release with Seal for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6036DG
- SEBO Mains Cable for AIRBELT D4, E3, K3 and C3.1 (Gray Black) — SKU 6369G2
- SEBO Cord Reel to Circuit Board Internal Cable for the C Series — SKU 6291
- SEBO Bottom Casing for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6197DG
- SEBO C3.1 Bottom Casing in White — SKU 6197GW
- SEBO Rear Parking Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6008DG
- SEBO Side Parking Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6009DG
- SEBO AIRBELT Clip in Gray Black for K and C Series — SKU 6048GS
- SEBO Attachment Clips for C1.1, C2.1 and C3.1 — Set of 3 — SKU 6117ER
- SEBO Casing Clip for AIRBELT K and C Series — Single — SKU 6086HG
- SEBO C3.1 Attachment Compartment Cover in White — SKU 6215SE
- SEBO Motor and Cord Reel Cover Panel for the C Series — SKU 6192
- SEBO Motor Cover for C Series Canisters — SKU 6196
- SEBO Bearing Cover for the Cover Release — C1.1, C2.1 and C3.1 — SKU 6039
- SEBO Bearing Block and Hinge for C Series Canisters — SKU 6168DG
- SEBO Plug Surround for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6007DG
- SEBO Elbow Hose Connector for C1.1, C2.1 and C3.1 — SKU 6088
- SEBO Air Adapter for C Series Canisters — SKU 6293
- SEBO Pin with Screw and Washer for C1.1, C2.1 and C3.1 Canisters — SKU 6027ER
- SEBO Cable Rewind Pedal Spring for C1.1, C2.1 and C3.1 Canisters — SKU 6023
- SEBO Spring Lock for AIRBELT K and C Series Canisters — SKU 6042WS
- SEBO On/Off Pedal Return Spring for C Series Canisters — SKU 6143
- SEBO Attachment Cover Spring for C1.1, C2.1 and C3.1 — SKU 6045
- SEBO Bag Holder with Safety Catch for C1.1, C2.1 and C3.1 — SKU 6094
- SEBO Microfilter Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6003DG
- SEBO Microfilter Holder for C3.1 Canister — White — SKU 6003GW
- SEBO Carbon Brush Set for the 6165 Suction Motor — C1.1, C2.1 and C3.1 — SKU 05101S
- SEBO Front Motor Mounting for C Series Canisters — SKU 6173
- SEBO Rubber Motor Mounts for C Series Canisters — 2 Pack — SKU 6188ER
- SEBO Rear Motor Mounting for C Series Canisters — SKU 6189
- SEBO Suction Motor for C Series Canisters, Supplied with Carbon Brush Set — SKU 6165
- SEBO Electronic Controller for C3.1 Canister — SKU 6407ER
- SEBO Rod for C1.1, C2.1 and C3.1 Canisters — SKU 6022
- SEBO Bag Cover Seal for C Series Canisters — SKU 6187
- SEBO Suction Neck Seal for AIRBELT K and C Series Canisters — SKU 6014
- SEBO Microfilter Seal for C1.1, C2.1 and C3.1 Canisters — SKU 6034
- SEBO Rear Foam Seal for C1.1, C2.1 and C3.1 — SKU 6120/3
- SEBO Foam Seal for C Series Release Button — SKU 6128
- SEBO Casing Seal for C Series Motor and Cord Reel Cover — SKU 6186
- SEBO Front Foam Seal for C Series Canisters — SKU 6213
- SEBO Motor Cover Seal for C1.1, C2.1 and C3.1 Canisters — SKU 6306
- SEBO Suction Neck for C3.1 Canister — SKU 6318UL
- SEBO Telescopic Wand for K3, C3.1, D4 and E3 - Gray and Black — SKU 60237UC
- SEBO Slider Button Kit for 6270GS Telescopic Tube — AIRBELT D4, E3, K3 and C3.1 (Gray Black) — SKU 6421GS
- SEBO Castor in Dark Gray for C1.1, C2.1 and C3.1 — SKU 6095DG
- SEBO Pre-Motor Microfilter for the AIRBELT K and AIRBELT C Canister Ranges — SKU 6191AM
- SEBO Exhaust Filter for AIRBELT C1.1, C2.1 and C3.1 Canisters — SKU 6033AM
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO AIRBELT Textile with Clips in Solid Gray Black — D, K and C Series — SKU 6047AM/01
- SEBO Tube Release Button Kit for C3 Canisters - Springs, Slider, Lock and Cover — SKU 6420GS
- SEBO Cable Rewind Pedal for C1.1, C2.1 and C3.1 Canisters — Red — SKU 6006DR
- SEBO Cable Rewind Pedal for C3.1 Canister — White — SKU 6006GW
- SEBO Complete Bag Cover in White for C3.1 — SKU 6093GW
- SEBO Attachment Cover for C3.1 — Red — SKU 6383C3
- SEBO Top Casing for C3.1 — Red — SKU 6397DR
- SEBO Top Casing for C3.1 — White — SKU 6397GW
