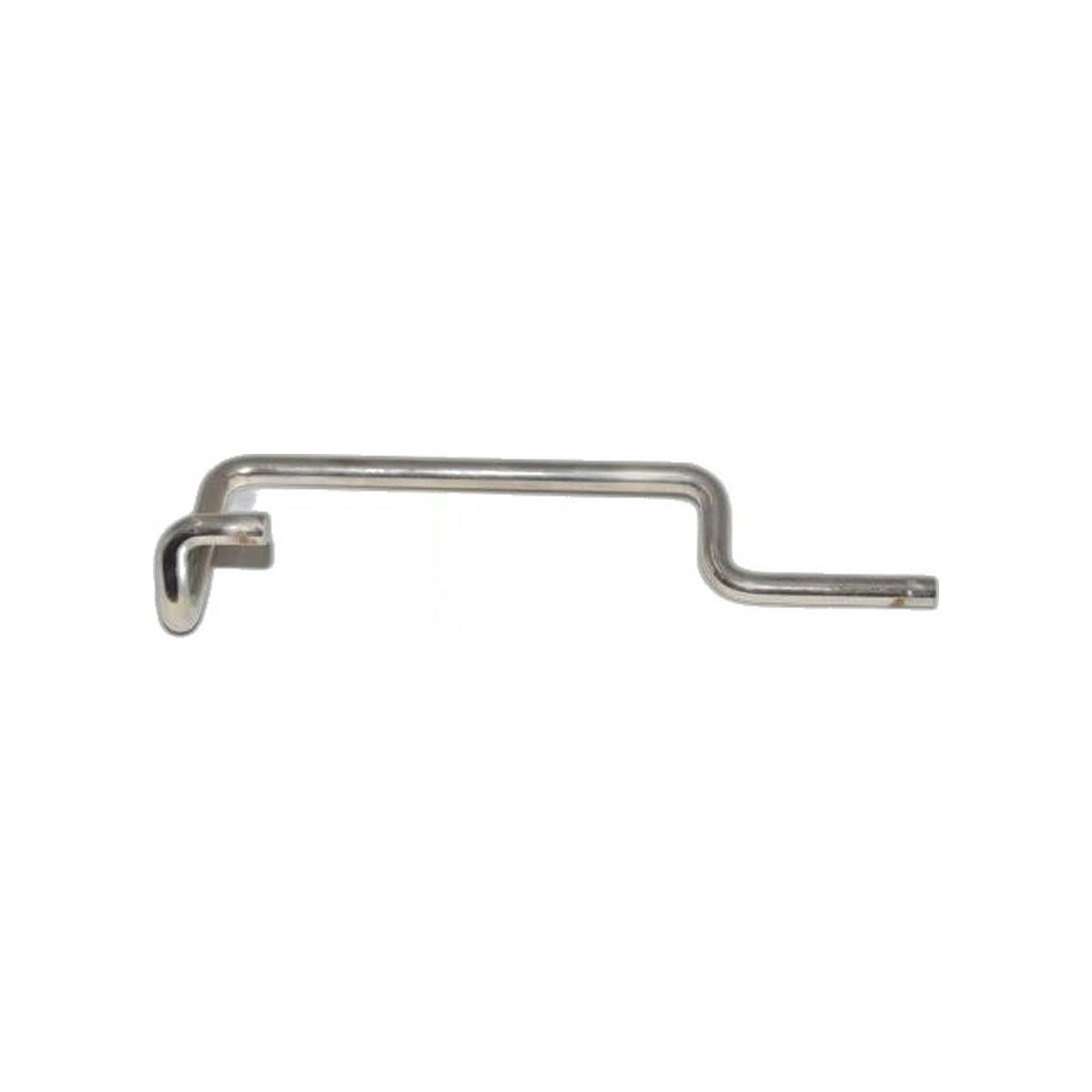

SEBO Pile Adjustment Axle f...
$10.00
Product details
Every notch of carpet height on these uprights is carried by a single shaft. Part 2861 is that shaft: the pile adjustment axle shared by the SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5 and by the 300 MECHANICAL and 350 MECHANICAL, drawn at position 118 on the SEBO 300/350 Mechanical sheet.
Turning the height control rotates this axle, and the axle in turn sets how far the nozzle drops toward the floor. Everything else in the mechanism — the thrust members, the spring, the clamps, the rubbing plate — exists to hold it steady and let it index cleanly. An axle that has been bent, or worn where it passes through its bearing points, tends to bind at one end of its travel, or to leave the nozzle sitting lower on one side than the other so the brush grooms unevenly and one edge of the head wears its strip away first. A machine that will only hold the deepest setting, or that fights the operator halfway through the range, is showing the same fault.
The parts that ride on this axle are inexpensive and are already exposed once the chassis is open, so there is little sense refitting tired ones: clamp 2856 captures the spring, spring 2867 loads the assembly, thrust member 2834 bears on the axle with 2833 serving the knob, rubbing plate 2869HG is the sacrificial face, axle clamp 2849 retains the pile wheel axle, and pile adjustment wheel 5174HG completes the set. Common searches are SEBO pile adjustment axle, G series carpet height shaft and 300 MECHANICAL height adjustment axle.
- SEBO part 2861 — pile adjustment axle
- Fits: SEBO ESSENTIAL G1, G2, G4 and G5, plus the 300 MECHANICAL and 350 MECHANICAL
- Parts-diagram position: 118 on the SEBO 300/350 Mechanical sheet
- Typical symptom: height control binding, or a nozzle sitting lower on one side
- Related hardware: 2856 clamp, 2867 spring, 2834 and 2833 thrust members, 2869HG rubbing plate, 2849 axle clamp, 5174HG pile adjustment wheel
- Genuine SEBO; ships in 2–5 business days
