SEBO Switch Protection Film...
$6.99
Product details

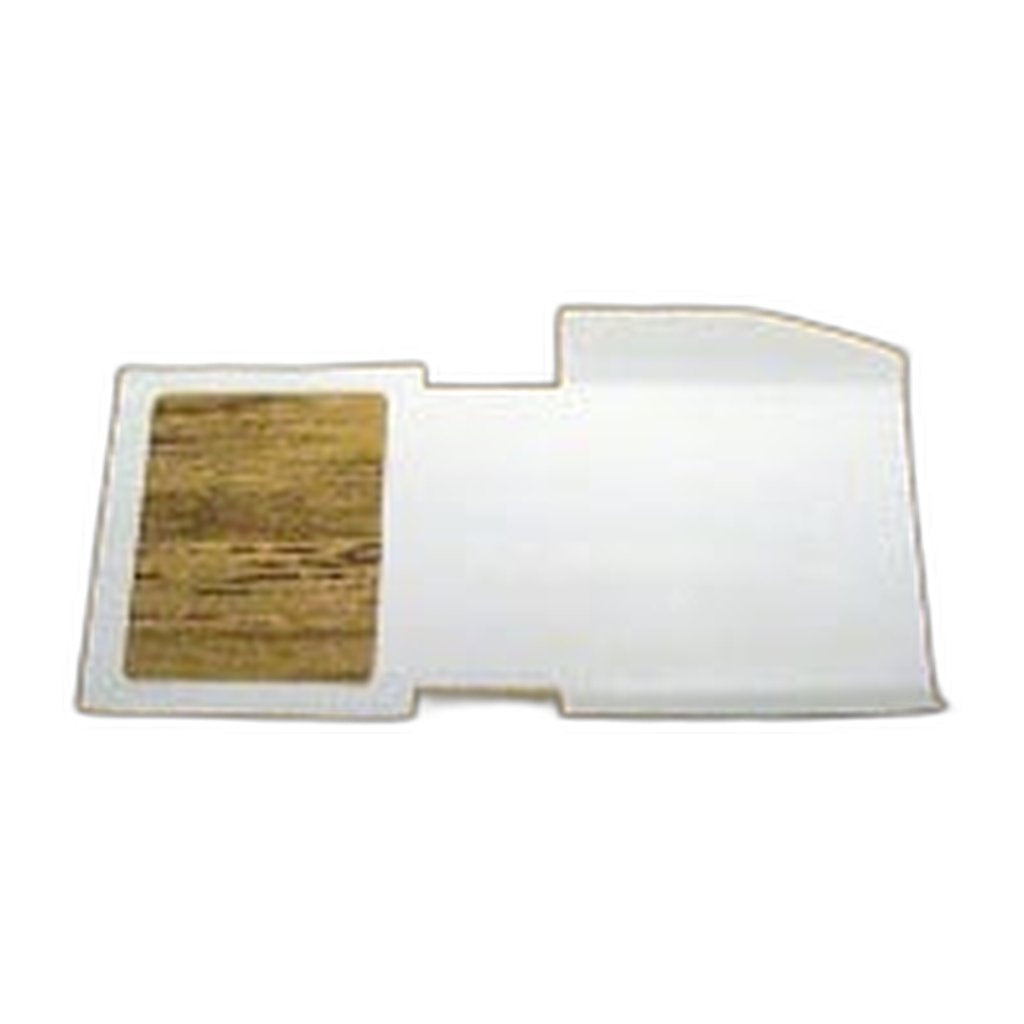

Item 39 on SEBO's DART parts drawing is a protection film, and 7142 is that item. It is the thin printed film covering the switch face on a DART upright, the barrier separating that control from the dust, the grit and the fingertips arriving at it several times a day.
The drawing groups the switch hardware together a few positions earlier, which is the quickest way to understand what the film is protecting. The sliding button is item 30, the switch frame is item 31, and the two-pole rocker switch itself is item 32, carried under part number 05138. The film seals the visible face of that assembly. While it is intact, nothing reaches the switch mechanism but the pressure of a finger. Once it tears, lifts at a corner or goes cloudy, fine debris and moisture start working their way in behind it, and a switch is a considerably more involved replacement than the film that was keeping it clean.
- Part number: 7142
- Fits: SEBO DART
- Diagram position: item 39, DART sheet, protection film
- Role: shields the switch face from grit, moisture and daily handling
- Replace it when: the film is split, peeling at an edge, or too clouded to read through
- Fitting tip: clean and dry the panel completely before the new film goes on, since trapped grit will lift a corner again
It is a sensible thing to keep on the shelf, because it is the only barrier in front of parts that take real work to change. If the switch underneath has already been damaged, the rocker switch is 05138, the switch frame in white is 7178WE and the sliding button is 7035GS, all listed for the DART. The retaining ring with spring drawn at item 38, immediately before this film on the same sheet, is 7018OR. Genuine SEBO part supplied by an authorized SEBO dealer, shipped in 2-5 business days.
