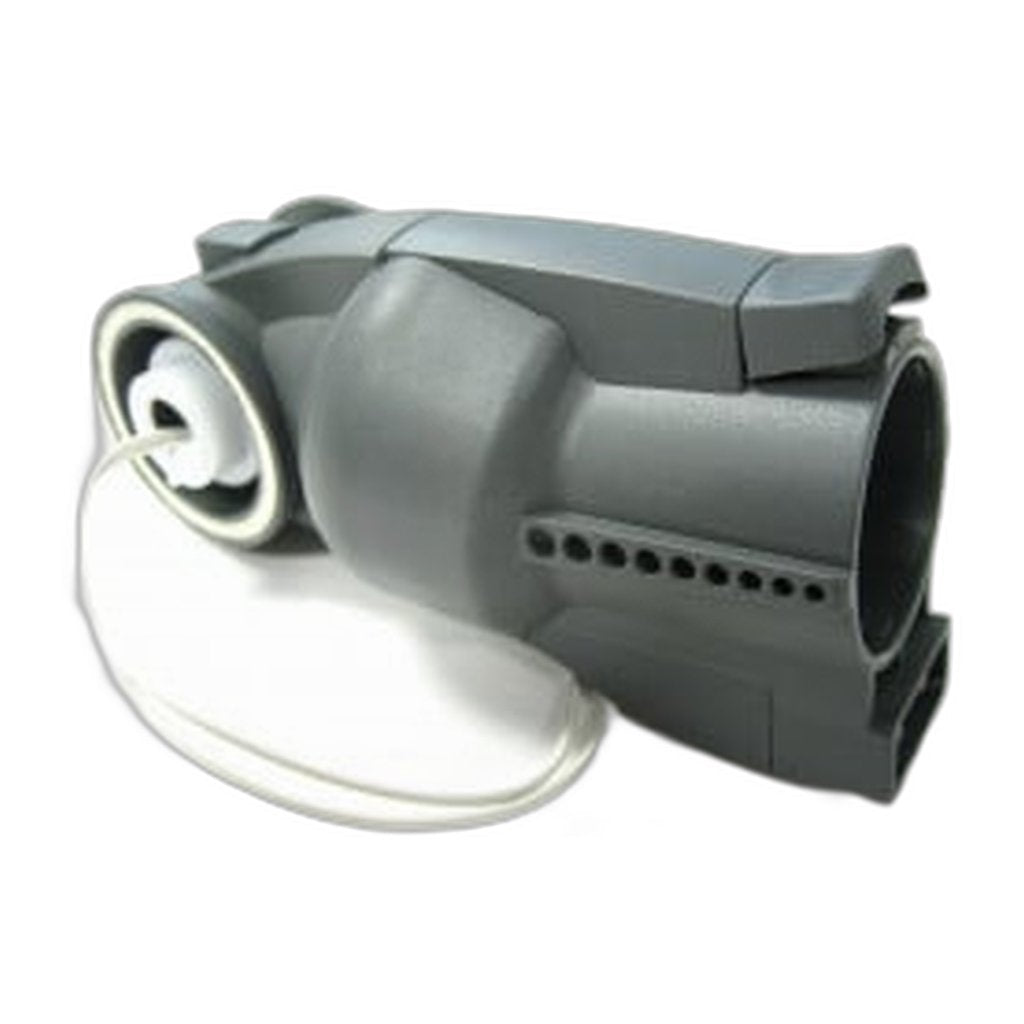

SEBO Turning Swivel Neck for DISCO Ice Blue, Onyx and Fun - Gray Black

Articulation on the DISCO floor polisher comes from this joint. SEBO 3226GS is the turning swivel neck, finished in gray black and specified for the Ice Blue, Onyx and Fun versions of the machine. It does two jobs at once: it lets the head lie flat and pivot under furniture as the handle moves, and it forms the duct that takes air from the nozzle up into the machine body.

Because it steers and seals at the same time, a worn neck produces an odd mixture of symptoms. The steering goes notchy or stiff, the head refuses to settle flat on the floor, and air is drawn in at the pivot instead of at the nozzle, so the machine feels down on suction for no reason a blockage check will find. Play at the joint usually turns out to be the bearing components rather than the neck casting, so it is worth inspecting the swivel neck bearing 2954 and the six-piece bearing segment set 2950ER before condemning the neck itself. A sound neck gives back easy turning and a properly closed airway.

• SEBO part number: 3226GS
• Fits: SEBO DISCO floor polisher, Ice Blue, Onyx and Fun versions
• Color: gray black
• Function: steering pivot and air path between head and body
• Replace when: steering is stiff or notchy, the head will not lie flat, or air leaks at the pivot
• Related part numbers: 2954 swivel neck bearing, 2950ER bearing segments (6-piece set), 2945GS swivel neck slide, 0876ER wiring for swivel neck

The supports that brace this neck are ordered separately as 3257ER for the left-hand side and 3258GS. Searches for a SEBO DISCO swivel neck, a DISCO turning neck or the part number 3226GS end here. Genuine SEBO from an authorized dealer, shipping in 2-5 business days.
